[Optocoupler Isolation]Reliable optocoupler isolation ensures stable operation when using or , driving loads effectively.
[Flexible Voltage]Supports 5V, 12V, or 24V Actuator options, allowing connection with various microcontrollers for optimal functionality.
[Clear Indicators]Power and relay status LEDs provide visual feedback, enhancing usability in complex control systems.
[High Capacity]Each relay handles up to AC 250V/10A or DC 30V/10A, making it suitable for a range of applications in automation projects.
[User-Friendly Design]Easily connectable terminals and clearly labeled interfaces simplify installation and integration in control cabinets.

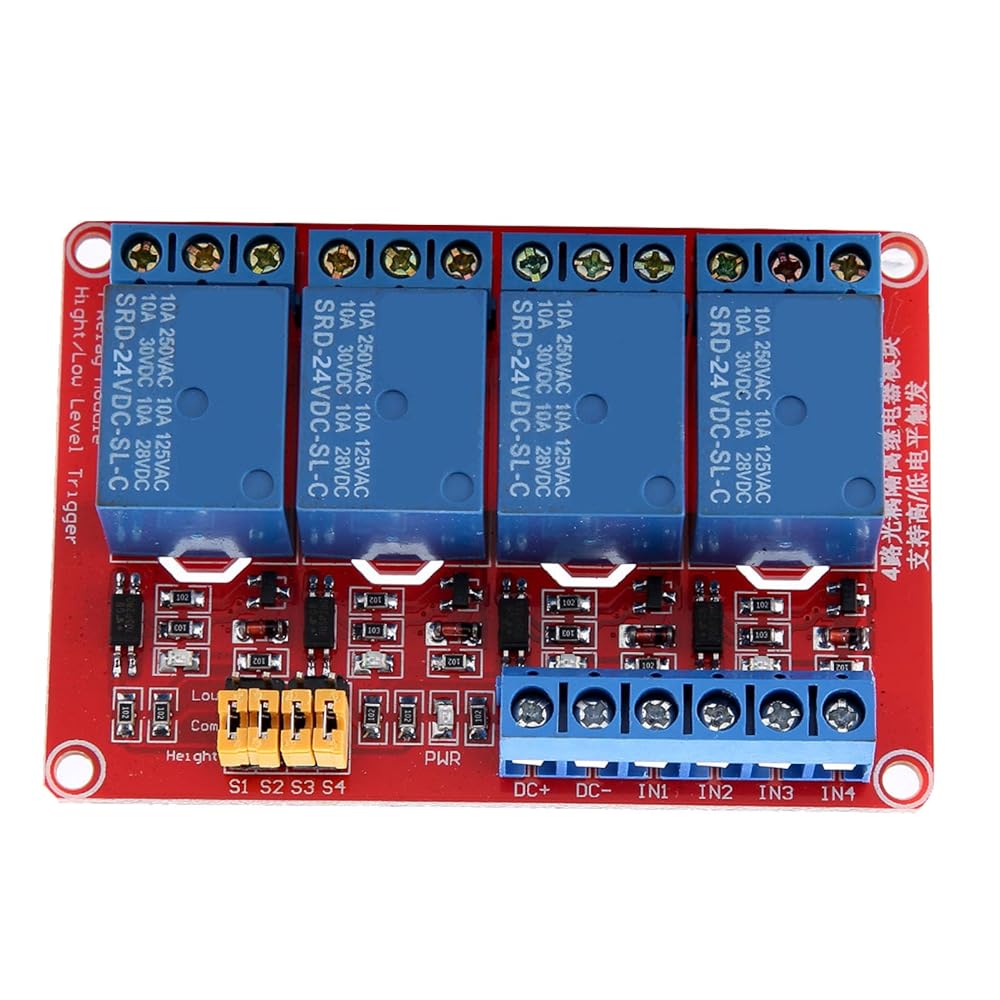

Features:
Adopt patch photocoupler isolation, strong driving ability, Durability-Optimized. Actuator current is 5mA.
Module operating voltage is 5V,12V,24V for choice.
Each path of the module can be triggered by the high level or low level through a jumper setting.
Fault-tolerant design,even if the control line breaks,the relay will not move.
Power indicator light (green), 4-way relay state indicator light (red).
Humanized interface design, all interfaces can be directly connected through the terminal , very convenient.
Four fixing Screw/Fastener holes are provided.
Specification:
Weight: 60g/2.1oz
Common interface load: AC 250V/10A, DC 30V/10A
Module Size (L*W*H): 73*50*18.5mm/2.9*2*0.7inch
Screw/Fastener Hole: 3.1 mm; 67*44.5mm (spacing)
Voltage: 5V, 12V, 24V (Optional)
Module interface:
1. DC + : connected to the positive pole of power supply (voltage is required for relay, 5V, 12V and 24V for choice)
2. DC- : connect to the power negative pole.
3. IN1-IN4: according to the setting of each circuit, the corresponding relay can be controlled with high or low level to suck in.
Relay output terminal: with 12 lines of interfaces, all interfaces can be directly connected to , convenient for users to use
1. NO1--NO4: the relay normally
