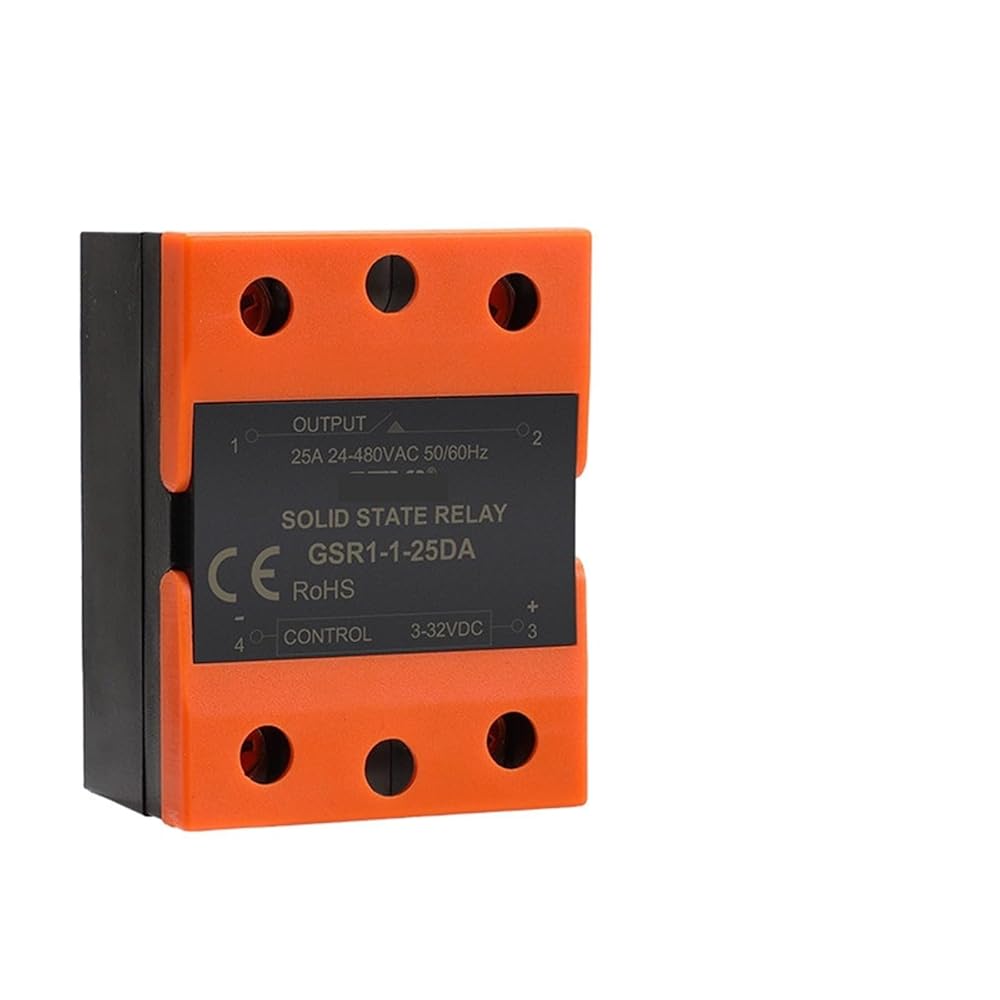

GSR1-1 Solid State Relay DC-AC DC-DC AC-AC Single Phase SSR 10A 25A 40A 60A 80A 100A 120A Without Cover
SSR-DA = DC TO AC
SSR-DD= DC TO DC
SSR-AA= AC TO AC
Technical Data
Model GSR1-1 Single Phase
Control DC to DC
Load Current 10A-120A
Control Voltage 3-32VDC
Max Input Current 40mA
Must Operation Voltage 3VDC
Must Release Voltage 2VDC
Load Voltage 5-220VDC
Peak Voltage 800V
Operation Temperature -20 to 75
Max off-state leakage current 2mA
Max on-state voltage drop 1V
Dielectric strength 2500V
