Applications

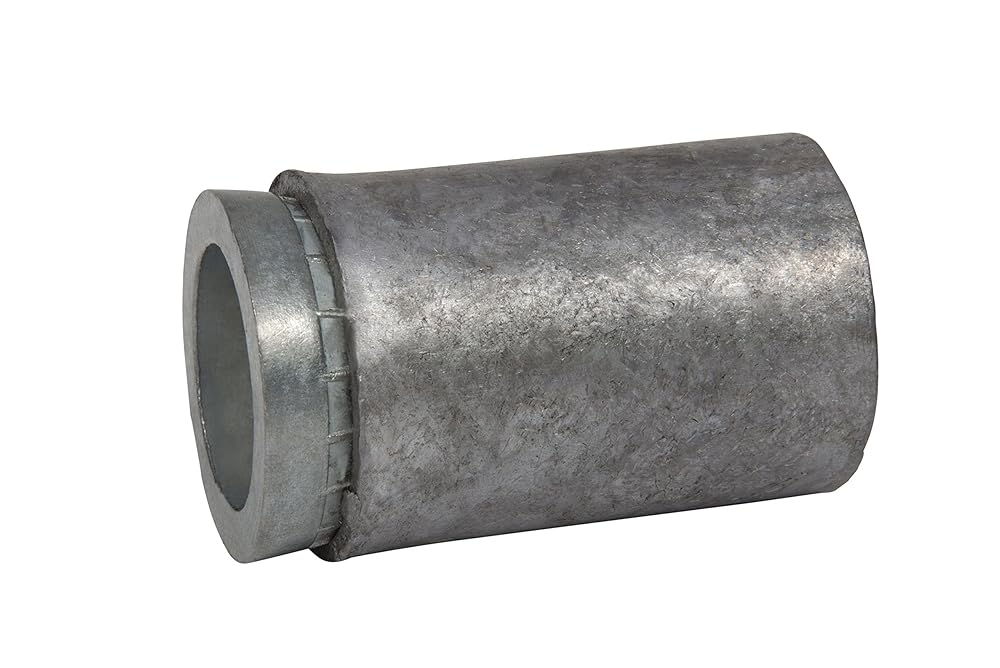

The anchor is made from Anchor Body Antimonial Lead Alloy/Cone Zamac Alloy. This anchor is designed for use in Concrete, Block, and Brick.

Environment
The anchor is designed for use in a Moist environment.

Head Style
The anchor is a head
Hole Diameter/Bit Diameter
The anchor requires a 3/4" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.

Driver Required
A is required for driving the anchor into the base material.

Diameter of Anchor
The diameter of the anchor is 3/8".

Length Anchor
The length of the anchor is 1-1/4"
Thread Length
The length of the threads on the anchor is in length.

Minimum Embedment
The minimum anchor embedment into the concrete is 1-1/4". Therefore, the anchor must be installed so that a minimum of 1-1/4" of the anchor is embedded into the concrete.

Maximum Fixture Thickness
The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is . This will ensure that the minimum embedment of 1-1/4" will be met.

Fixture Hole Diameter
The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/8" diameter anchor requires the hole in the fixture to be 7/8".

Spacing between Anchors
Each anchor must be spaced a minimum distance of 7-1/2" from each other when measured center to center.

Edge Distance
It is very important not to install the anchor any closer than 3-3/4" from an unsupported edge of the concrete.
