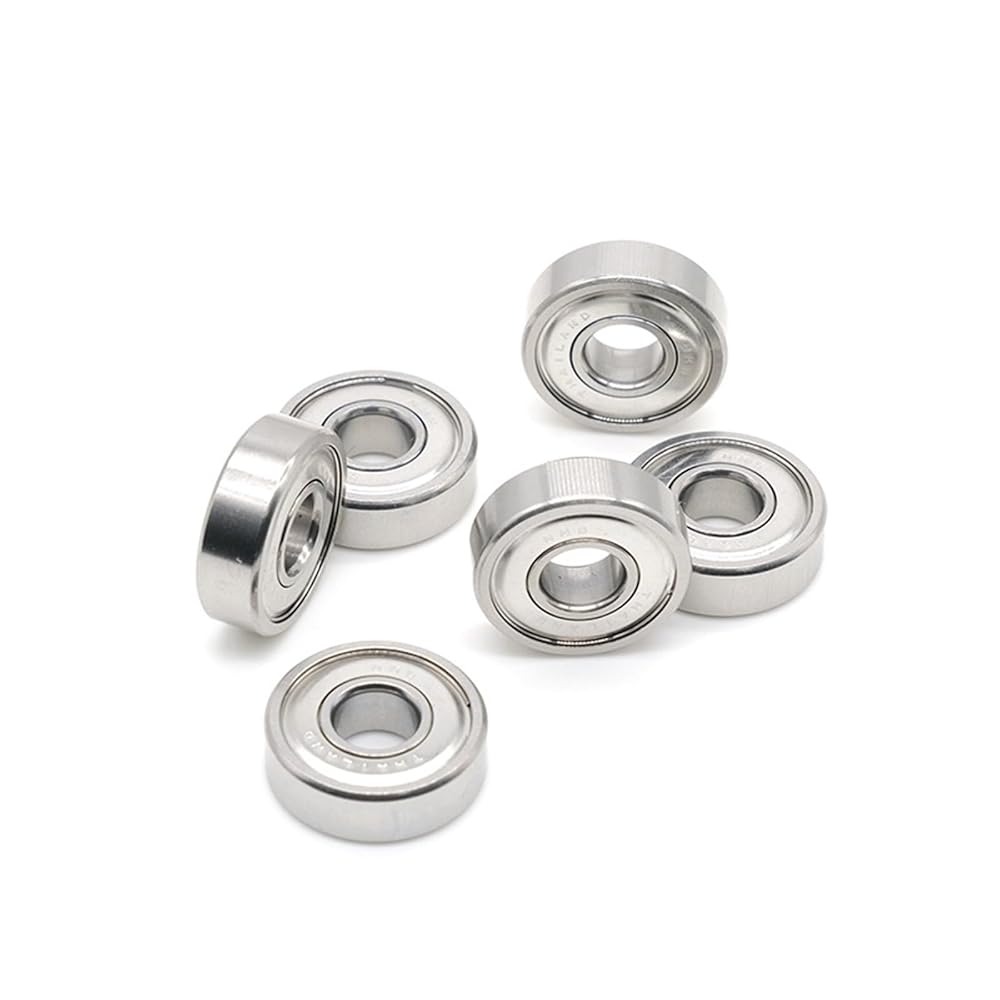

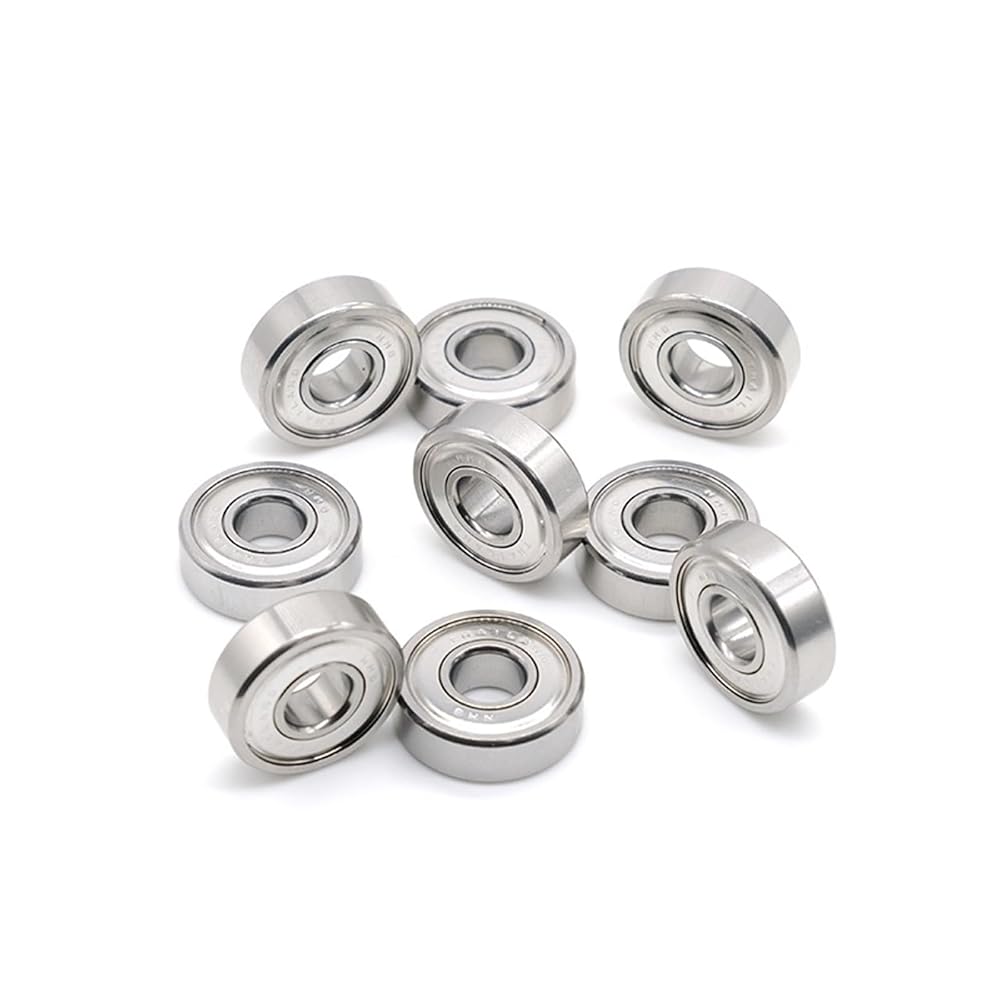

Deep-Groove Ball Bearings
TECHNICAL SPECS
Bearing type: Ball Bearing
Bore diameter: 8.000 mm
Outer diameter: 22.000 mm
Width (B): 7.000 mm
Radius (min) (rs): 0.30 mm
Dynamic load rating (Cr): 2,799 N
Static load rating (Cor): 1,103 N
Max speed (Grease): 34,000 rpm
Max speed (Oil): 40,000 rpm
Max. shaft shoulder diameter, inner (Ui): 10.5 mm
Min. housing shoulder diameter, outer (Uo): 19.03 mm
Ball quantity: 7
Ball diameter (Dw): 3.969 mm
Weight (g): 12.80 grams
Standard clearance: C0/(K25)
Material: Chrom Steel GCr15
