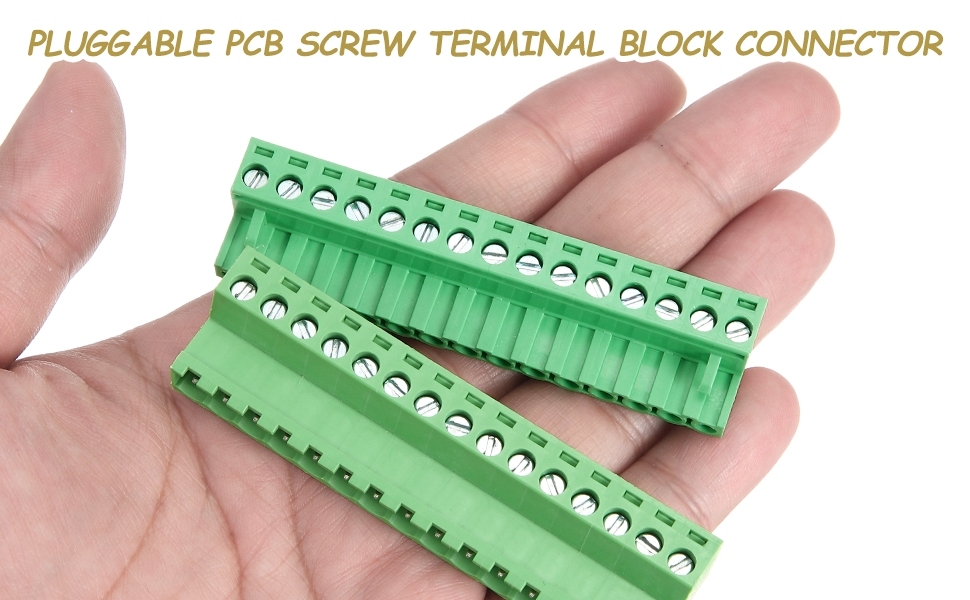

This pluggable screw terminal block connector provides a solderless, reusable interface for securely connecting wires directly to a circuit board. These pluggable terminal blocks are suitable for plug wires. This connector is designed for low-voltage, low-current applications and typical DIY electronic environments.

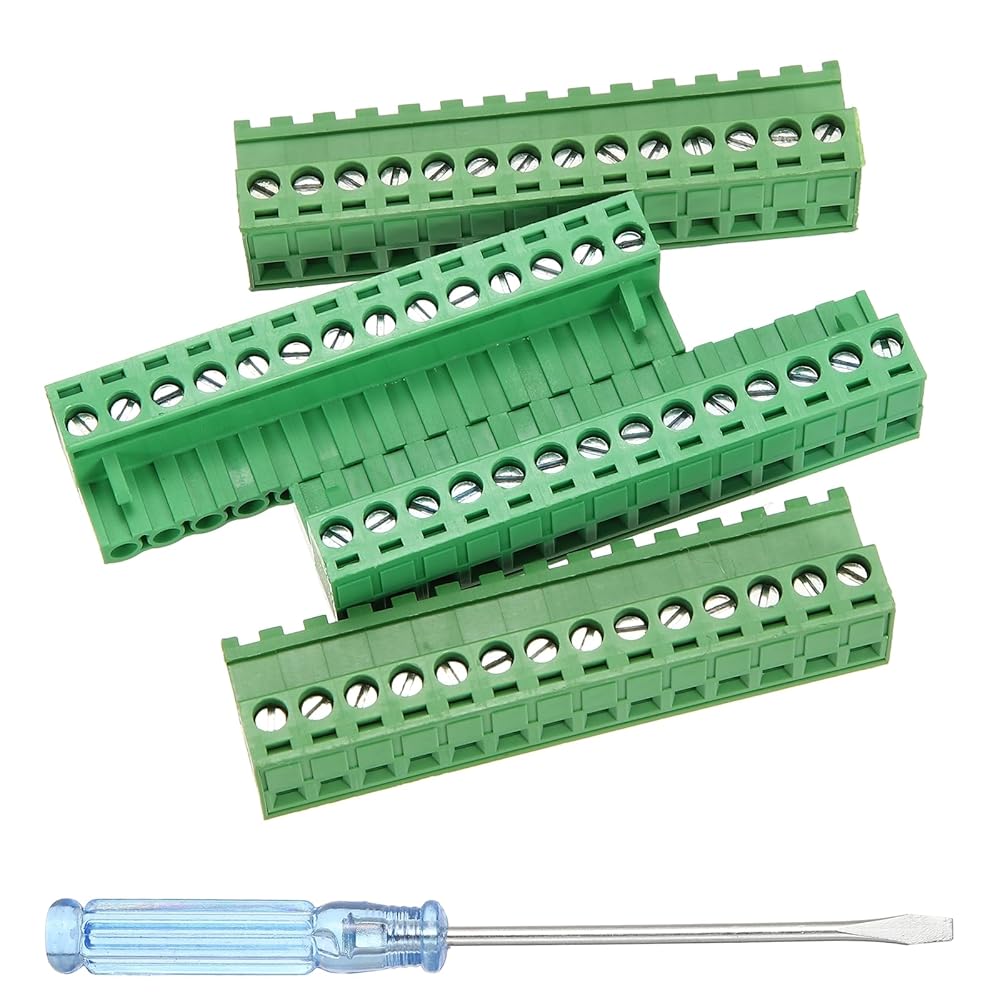

Pluggable PCB Screw Terminal Block Connector; Model: 2EDGKP-5.08; Package includes: 2 sets with 1x wrench, each set includes 1x Male, 1x Female; Type: 15 Pin; Material: Cooper, Nickel, PVC; Maximum Voltage/Current: 300V/20A; Pin Pitch Size: 5.08mm; Male Connector Size: 19x77x15mm / 0.75x3.03x0.59 inch (LxWxH); Female Connector Size: 17x76x15mm / 0.67x2.99x0.59 inch (LxWxH); Suitable Wire Size: 24-12AWG; Color: Green.
These pluggable PCB terminal blocks offer a secure screw-down connection that is both stable and easy to modify without soldering. Our connector's pluggable design simplifies circuit assembly and maintenance. Our PCB terminal block mounts feature flame-retardant and heat-resistant housing material, which allows for safe and long-term use.
First, mount the screw terminal block type mount piece onto your PCB. Then, insert the stripped end of your wire into the appropriate terminal and use a small screwdriver to tighten the clamping screw firmly. Finally, connect the corresponding plug piece to complete the secure, detachable wiring interface.
Ensure the wire gauge matches the connector's specifications for a proper fit. Avoid over-tightening the terminal screws, as this could damage the wire or the connector housing. Avoid using over the maximum voltage or current.
