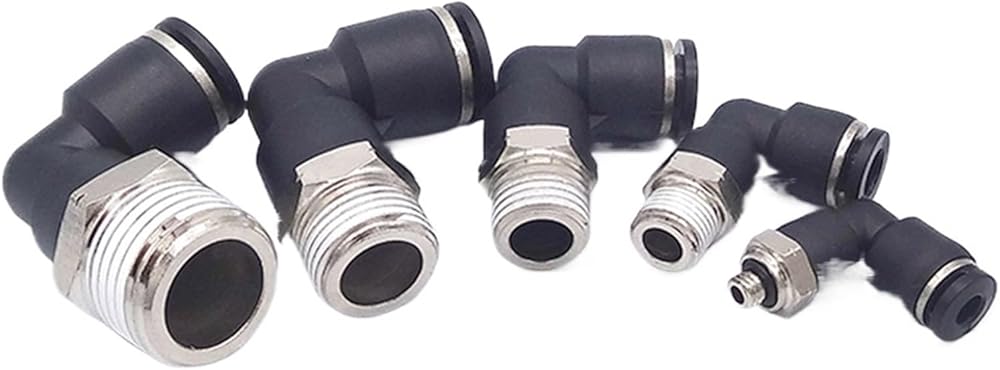

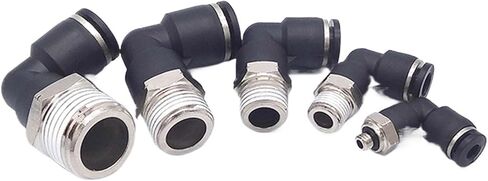

Quick-Connect-to-Threaded Fittings
Product name: PL connector NPT
Hose outer diameter: 5/32 inch = 3.97 mm 1/4 inch = 6.35 mm 5/16 inch = 7.94 mm 3/8 inch = 9.53 mm 1/2 inch = 12.7 mm
Thread: UNF10- 32, 1/8" 1/4" 3/8" 1/2" NPT internal thread
Fluid type: air/vacuum Working pressure: 0~10.2kgf/cm2 (0~1.0Mpa) Negative pressure: -750mmhg (10 Torr))
Operating temperature range: 0~60C
Applicable pipe material: PU/nylon, polyurethane
Quick connector material: brass and plastic
Package content: 1 PL quick connector
