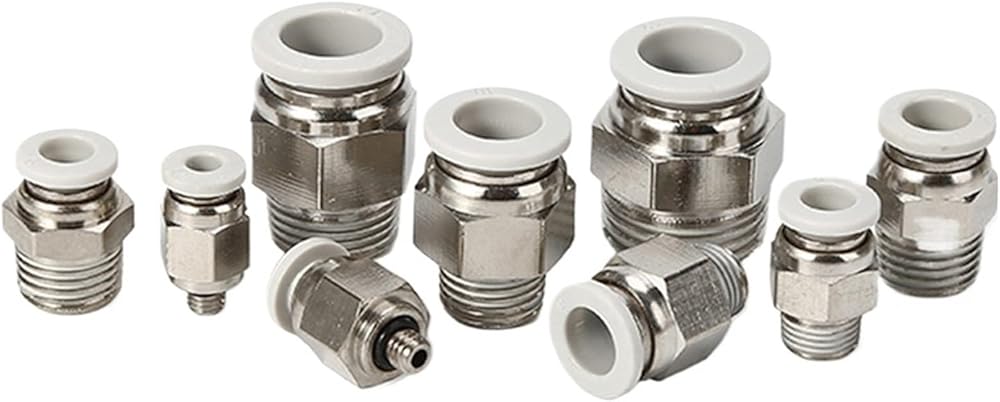

Quick-Connect-to-Threaded Fittings
Feature:
1. Fast installation, simple and intelligent, save space.
2. Various forms can meet the needs of any pneumatic tube.
3. Even after installation, the plastic pipe body can be rotated at will.
4. The button adopts an oval design, which is more labor-saving and easy to disassemble.
5. All tapered pipe threads are pre-coated with PTFE leak-proof glue, which has good sealing performance.
6. The connector is equipped with an inner hexagon socket, which can be easily installed in narrow places.
product information:
Product name: PC boutique pneumatic joint
Material: Plastic + Brass
Circlip: stainless steel
Applicable hose: nylon/PU tube
Tube Outer Diameter: 4mm/6mm/8mm/10mm/12mm
Thread: M5, M6 1/8" 1/4" 3/8" 1/2" BSPT male thread
1/8" Standard Pipe Thread (DN6) external thread diameter 9.5mm
1/4" Standard Pipe Thread (DN8) external thread diameter 12.5mm
3/8" Standard Pipe Thread(DN10) external thread OD16mm
1/2 inch Standard Pipe Thread (DN15) external thread diameter 20mm
Included package: 1 connector (type of your choice)
