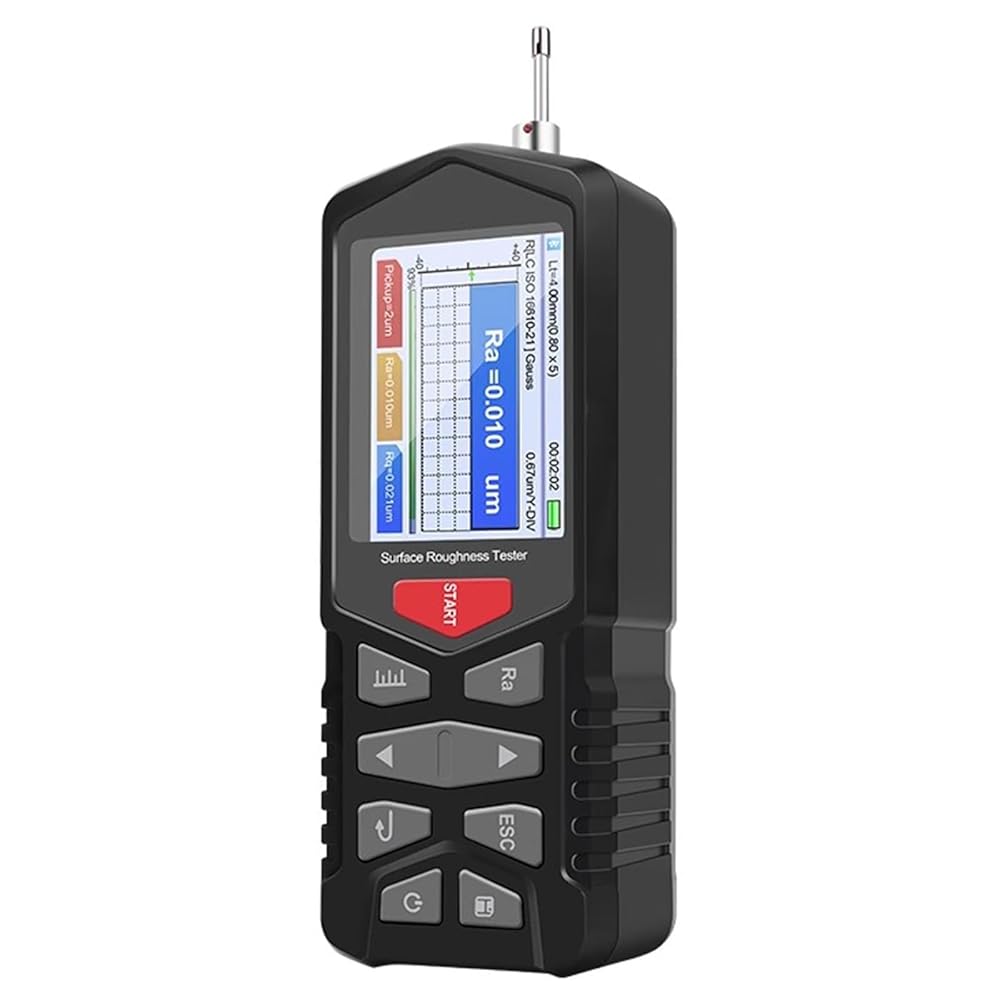

Handheld Digital Profilometer,Precision 0.001μm,Surface Roughness Tester with Real-time Clock, 12 Parameters Measuring, LCD Display,Can Store 100 Sets of Data

SAR 6,081
Brand
Generic
Weight
1.3 kg
– 1 +

Special Features

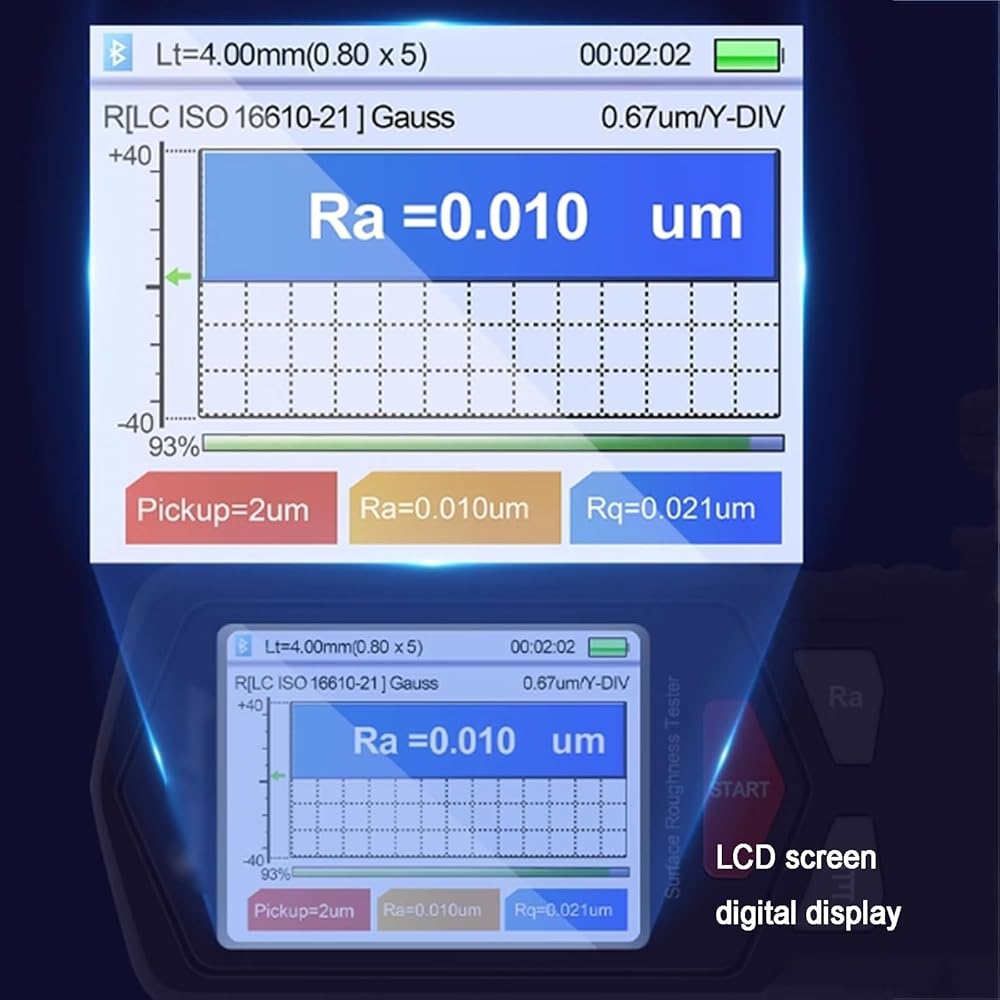

  • Measures variety of surface roughness of machined parts, according to the measurement conditions and the corresponding parameters of selected, shows clearly the measurement results and graphics in LCD screen
  • Surface Roughness Gauge, offers the capability to measure Multiple surface roughness parameters, including Ra, Rq, Rz, Rt, Rv, Rs, Rsm, Rz, Ry, Rsk, R3z, Rmax

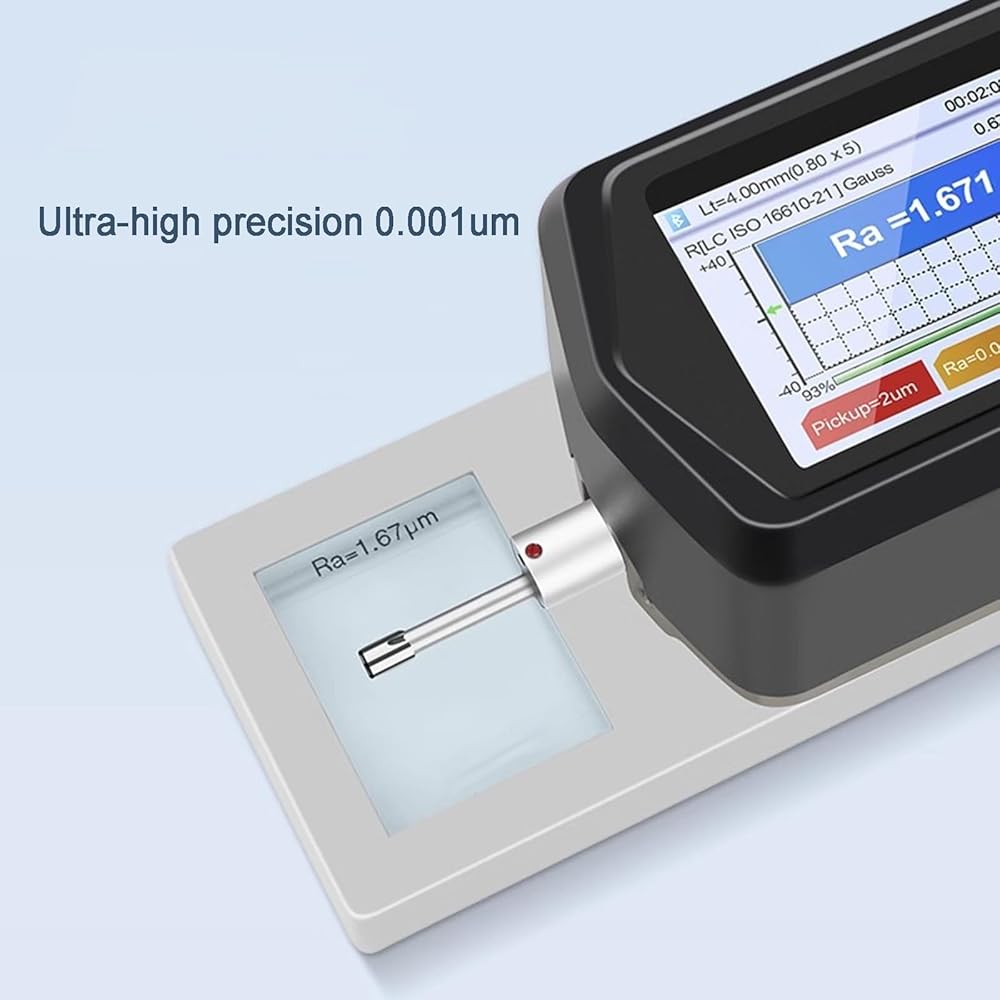

  • Surface roughness tester is equipped with a highly sophisticated sensor that provides excellent accuracy. Excellent measurement accuracy of 0.001μm and minimum measuring force of 0.4mN
  • Surface roughness testers are suitable for various applications such as manufacturing quality control, automotive industry, scientific research and electronic manufacturing

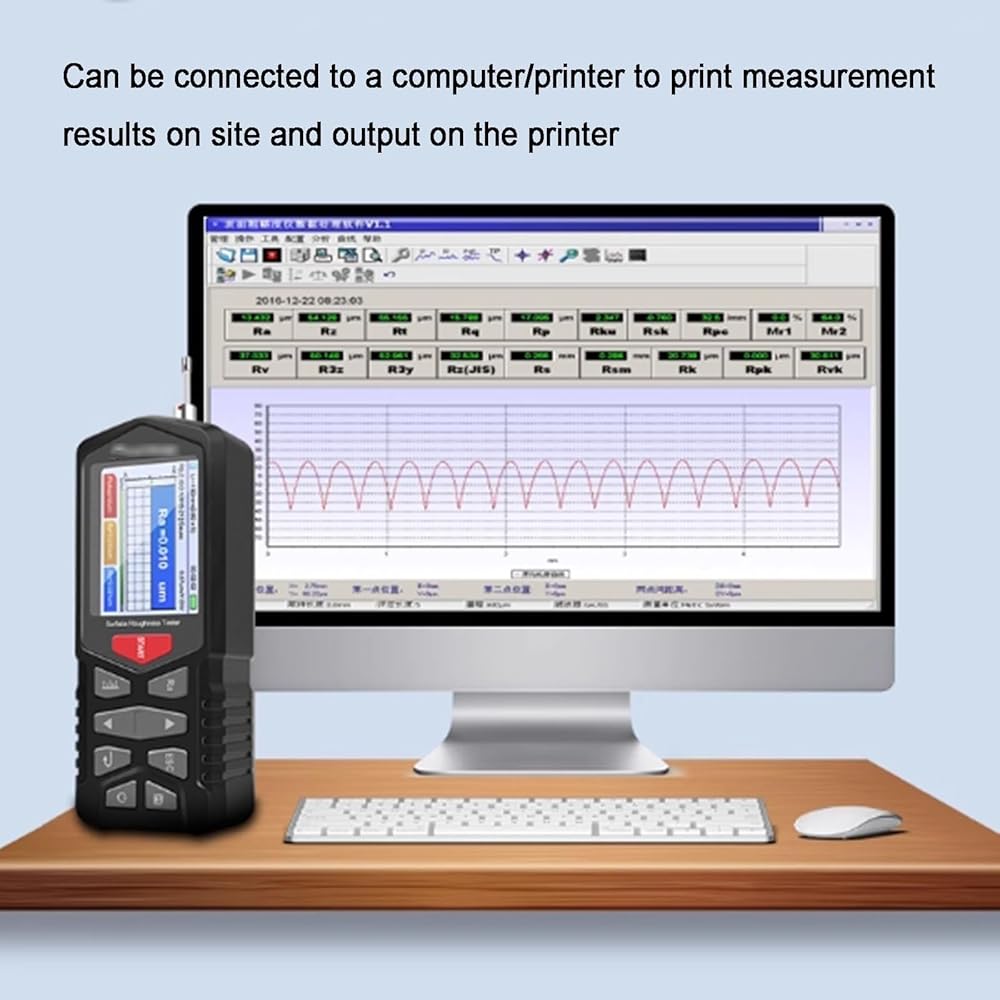

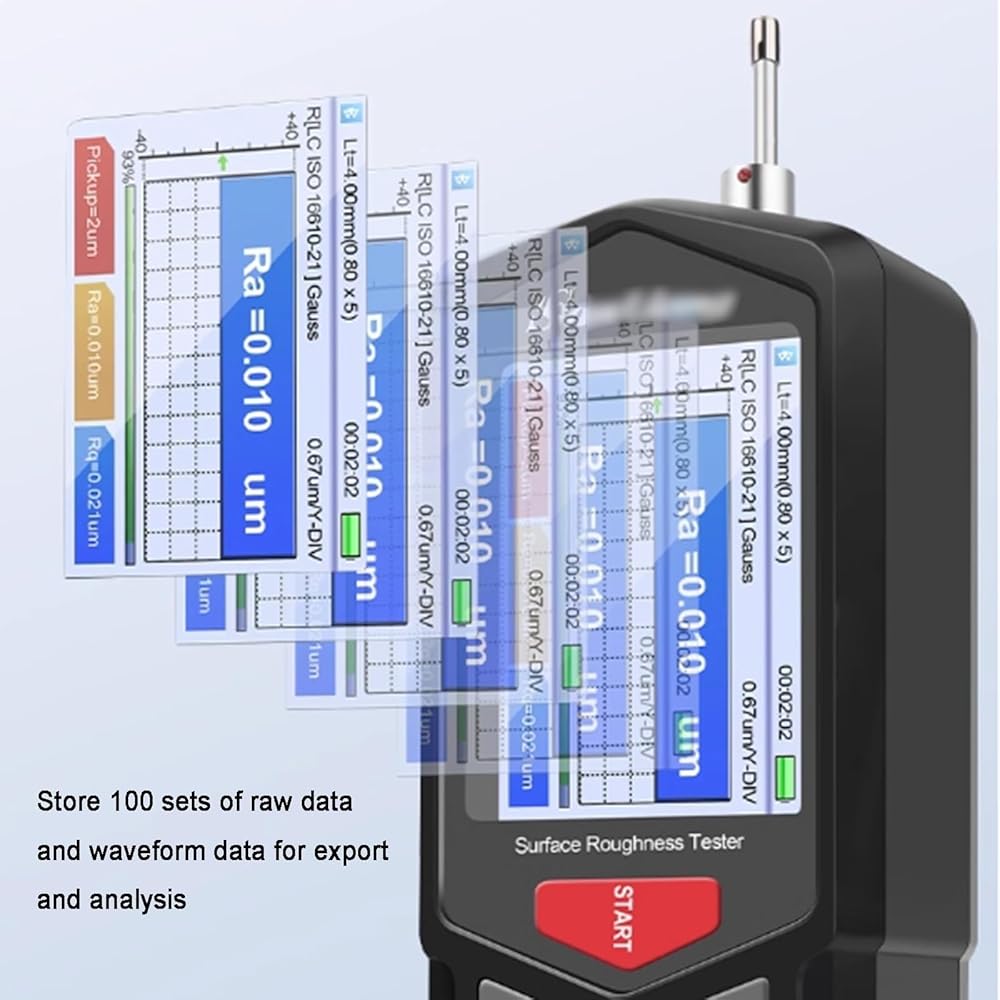

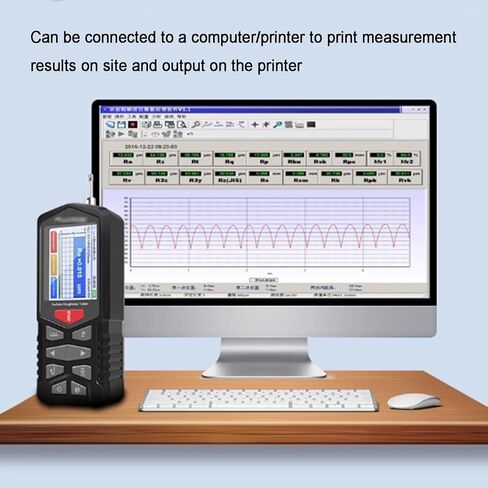

  • Profiler has a large data storage capacity, which can store up to 100 sets of raw data and corresponding waveforms. At the same time, the USB interface allows connection to a computer

Description

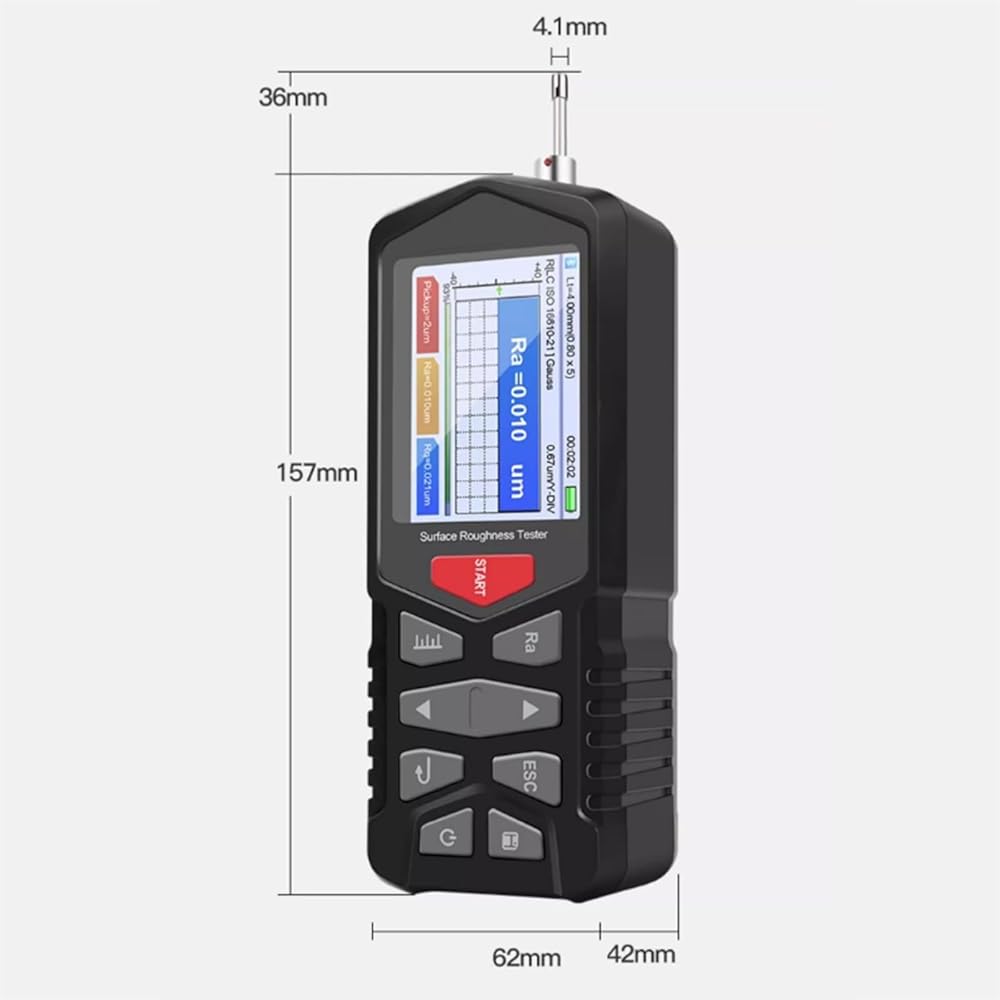

The surface roughness tester is designed with user-friendliness in mind. It is small and lightweight, with a built-in rechargeable lithium battery, making it easy to carry and transport

Specifications:
Measuring range: Z axis (vertical) -160μm, X axis (horizontal) -17.5mm
Measurement parameters: Ra, Rq, Rz, Rt, Rv, Rs, Rsm, Rz, Ry, Rsk, R3z, Rmax
Sampling length (Lr): 0.25, 0.8, 2.5mm
Sensor
Measuring principle: displacement differential inductance

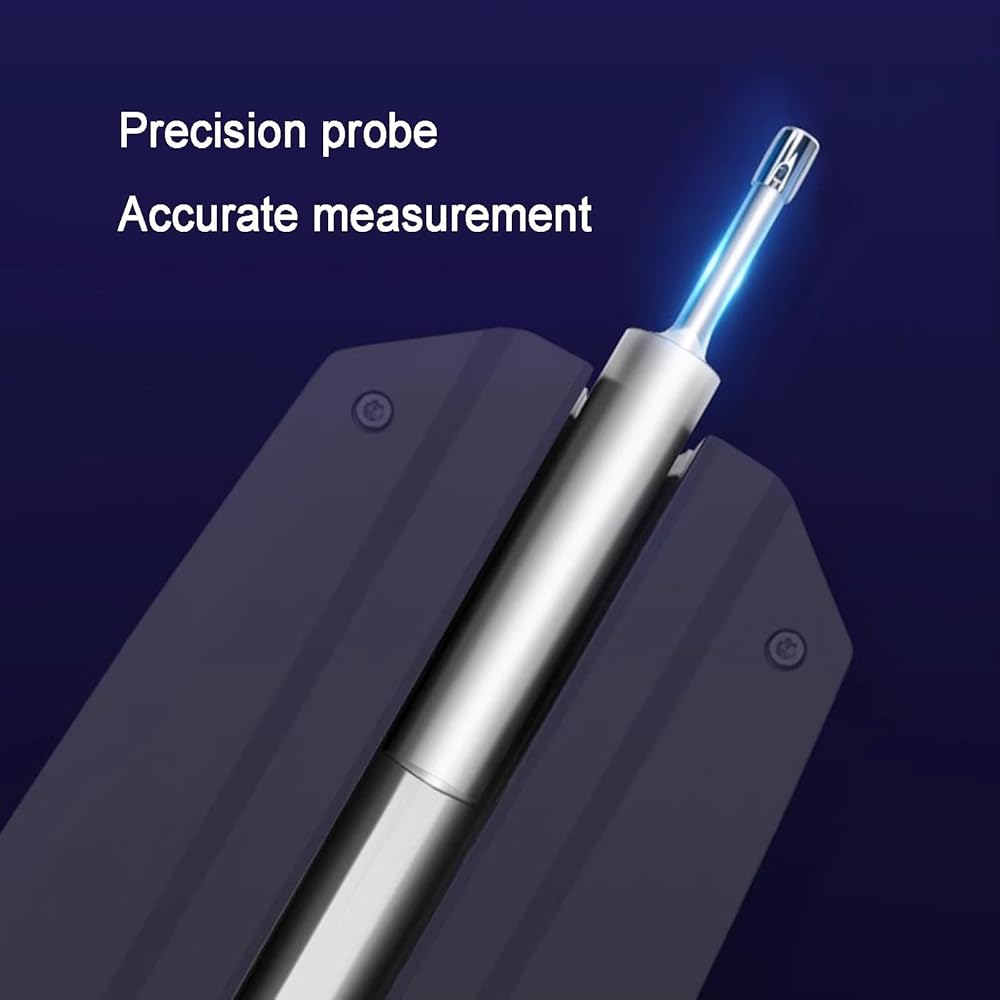

Stylus: natural diamond, 90° cone angle, 5μm tip radius
Guide: carbide, sliding direction radius 40mm

Product includes:
1*Surface Roughness Tester
