مميزات خاصة

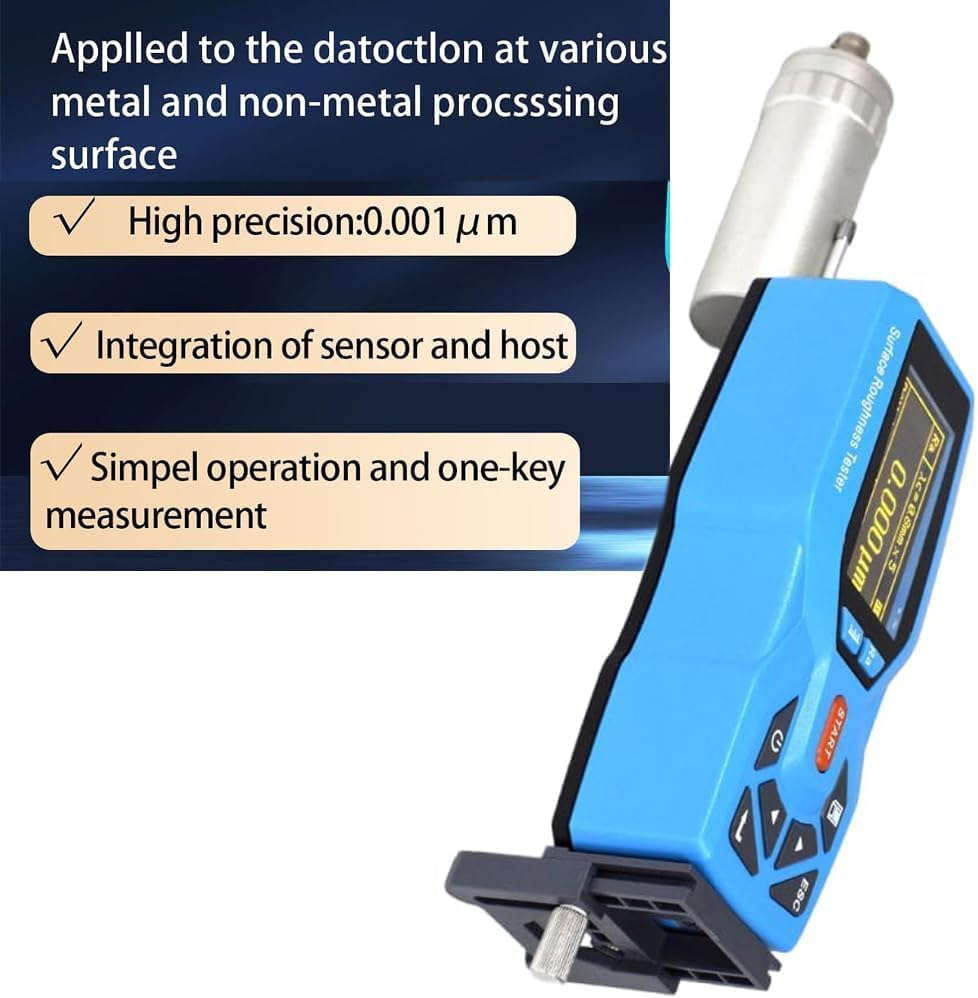

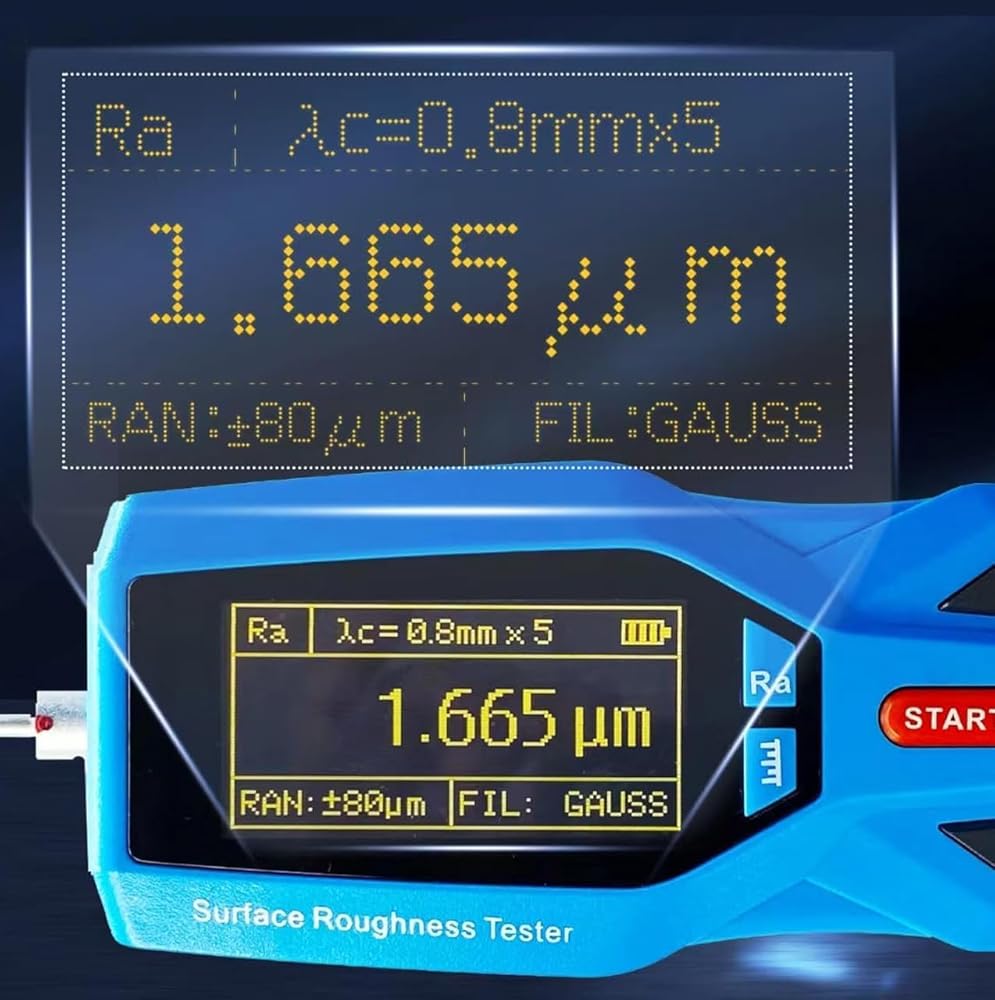

[Data Output]: Measures variety of sur-face roughness of machined parts, according to the measurement conditions and the corresponding parameters of selected, shows clearly the measurement results and graphics in liquid crystal screen, and can output on a printer

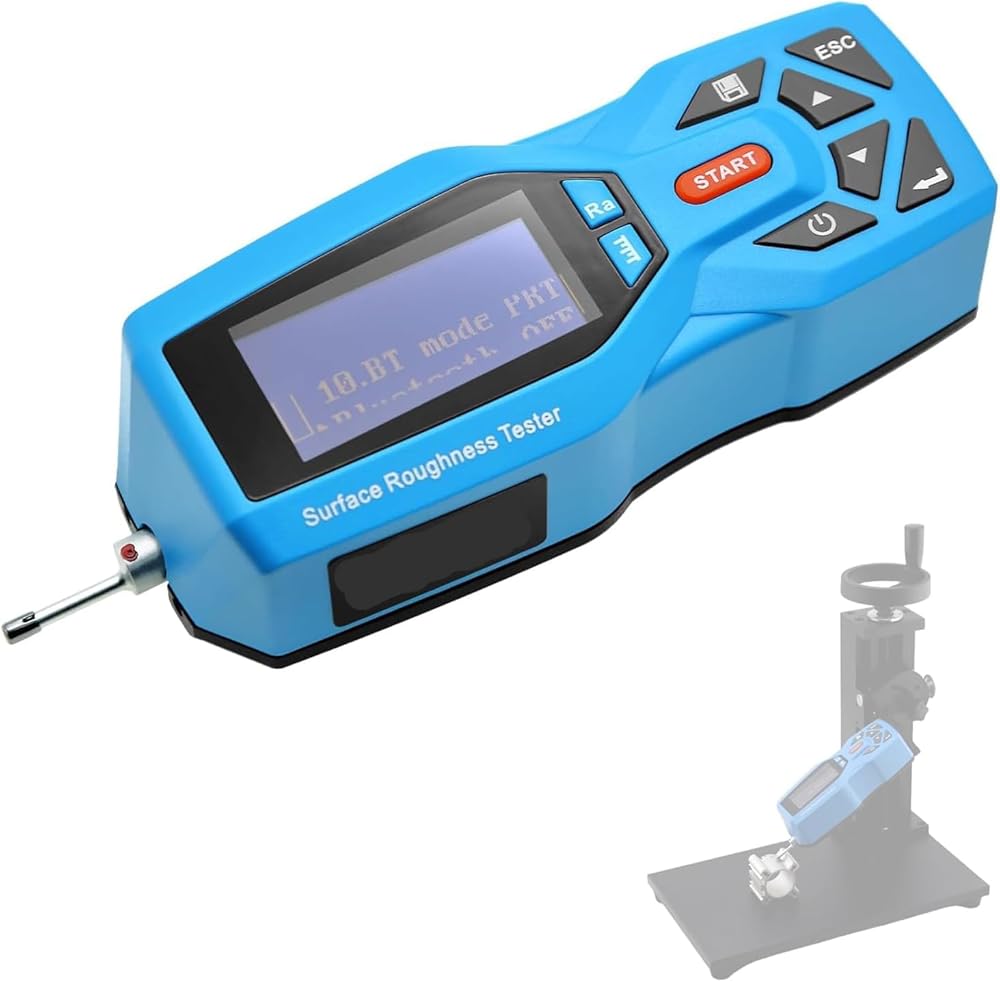

[Sur-face Roughness Tester]: Sur-face Roughness Gauge can measure Rpk, Ra, Rz... 22 roughness parameters. It is especially suitable for field inspection of large workpieces and production lines, as well as outside verification of inspection, measurement and commodity inspection departments
[Multifunctional]: The curved sur-face sensor can be selected to measure the roughness of concave and convex sur-faces, and the inner hole roughness can be measured by the small hole sensor

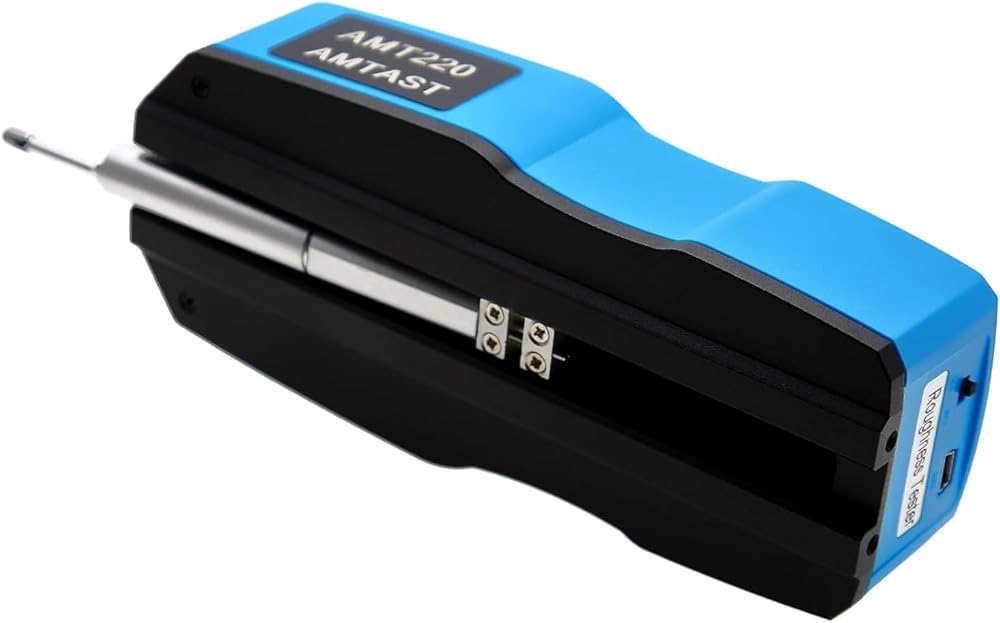

[High Precision]: The roughness measuring heads uses high precision inductance sensor, and the measurement value is stable and accurate. Using DSP chip to control and data processing, high speed, low power consumption
[Service]: We are very sorry for the shopping experience you have experienced. If you have any problems with the goods you received, please contact us and we will serve you 24 hours a day.

وصف

Specifications:
Roughness Parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2
Standard: ISO, DIN, ANSI, JIS
Measuring range: Ra: 0.005-16.000μm; Rz: 0.02-160.00μm
Sample length: 0.25, 0.80, 2.50mm
Evaluation length(mm): (1-5)L
Maximum drive stroke: 0.7inch / 17.5mm
Indication accuracy: 0.001μm
Repeatability: Data Storage: 100 groups
Working temperature: -20℃ ~ 40℃
Relative humidity: Size: 141x55x40mm
Host weight: 400g

مرحبًا،

بحث

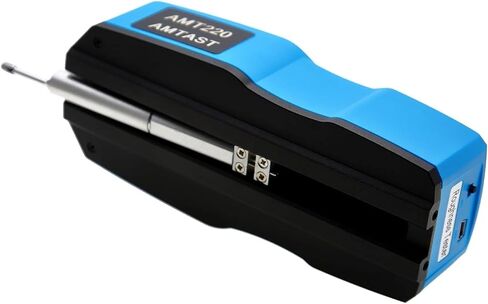

جهاز اختبار خشونة السطح المحمول عبارة عن أداة اختبار محمولة باليد لقياس خشونة سطح الوجه تستخدم لقياس خشونة سطح الأجزاء المصنعة.
