مميزات خاصة

【Can Measure The Workpiece Range】plane, external sur-face, tapered sur-face, bore, groove, sur-face, etc. (special sur-face needs to be measured with applicable sensors)
【Sur-face Roughness Tester】It can measure the sur-face roughness of machined parts, calculate the corresponding parameters according to the selected conditions, and display all measured parameters and graphics
【Versatile Parameter Measurement】The Sur-face Roughness Gauge, offers the capability to measure Multiple sur-face roughness parameters
【Ample Data Storage】The profiler can store up to 100 sets of data and corresponding waveforms. Very useful for record keeping and data analysis. The USB interface allows external data transfer and connection
【Service】: We are very sorry for the shopping experience you have experienced. If you have any problems with the goods you received, please contact us and we will serve you 24 hours a day.

وصف

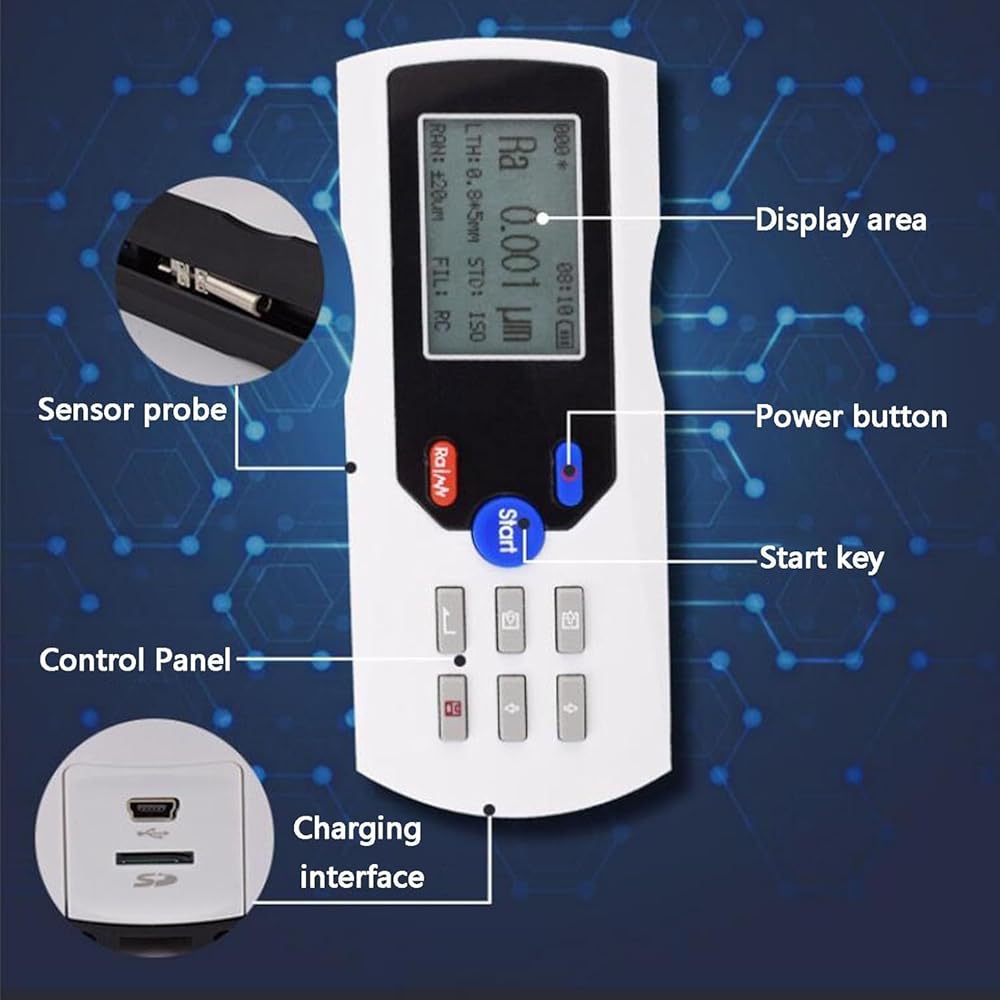

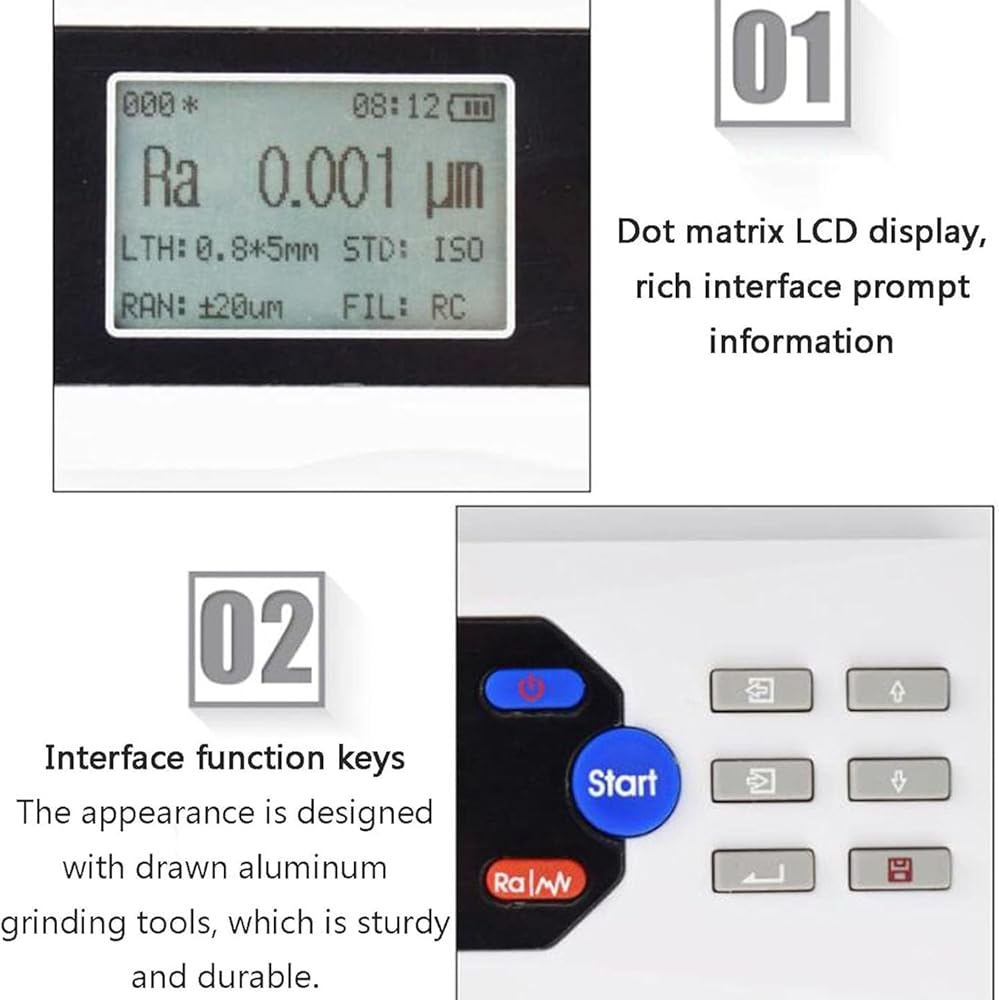

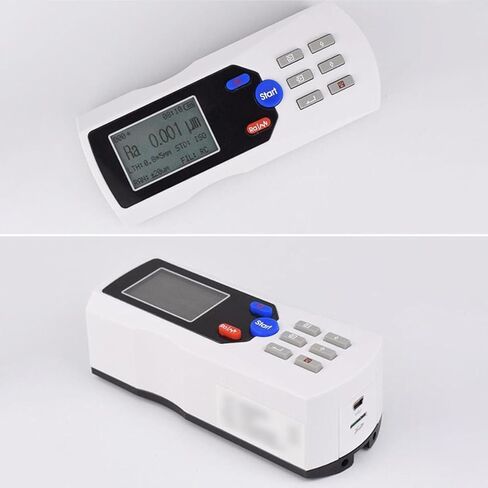

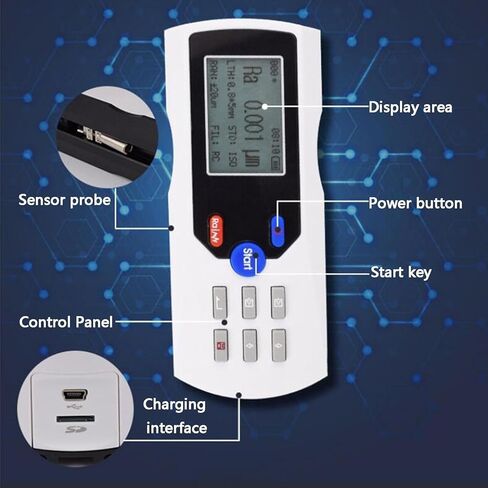

Graphic LCD screen, it includes a backlight for visibility in dark environments. It displays all parameter and graphic.
Built-in lithium-ion rechargeable battery and controlling circuit, there is remaining charge indicator, charging hint.

Specification:
Measurement parameters: Ra, Rz, Ry, Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp
Measuring range: 160μm
Measurement accuracy: 0.001μm
Sensor type: inductive
Tip radius: 5μm
Needle tip material: diamond
Measuring force: 0.4mN
Sampling length: 0.25/0.8/2.5mm
Sensor moving speed: 0.5mm/s, 1mm/s
Data storage capacity: more than 100 measurement results

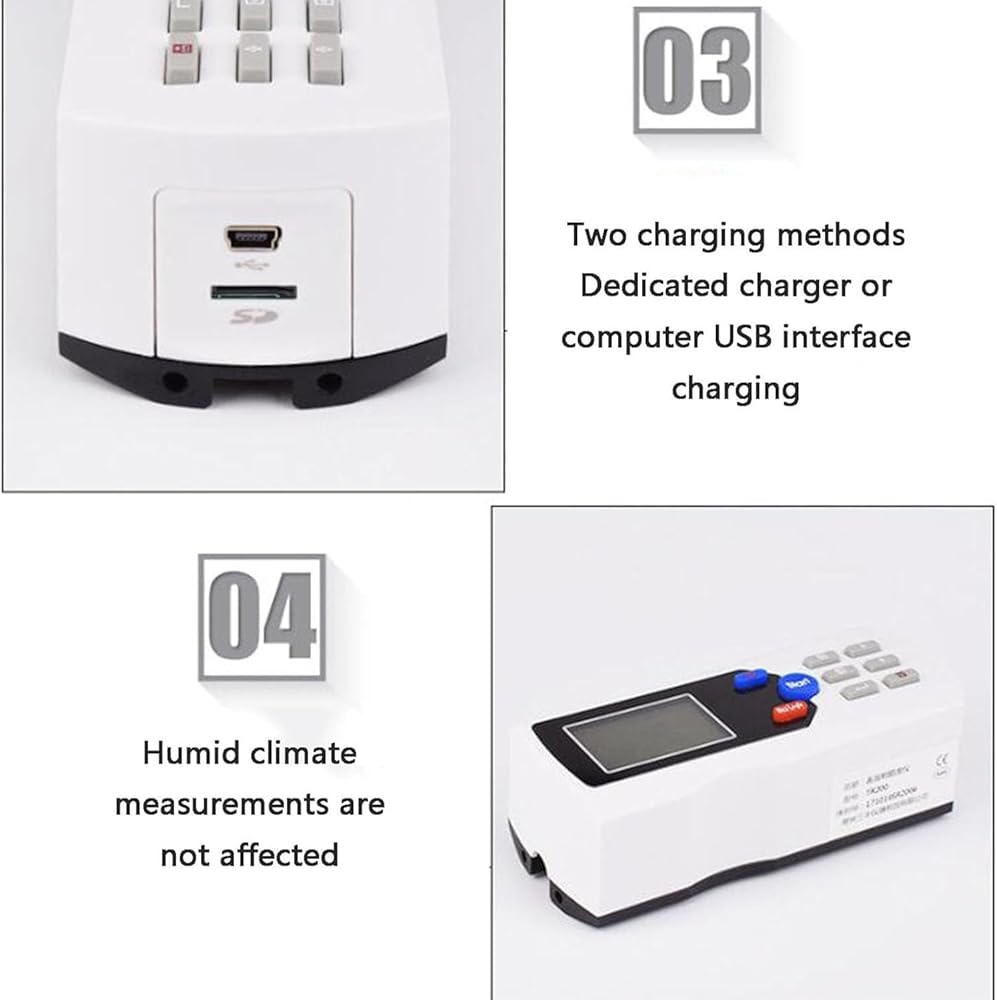

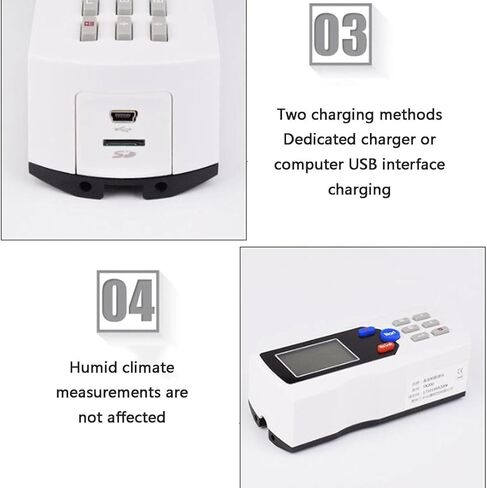

External input and output interface: USB
Power supply: built-in rechargeable lithium battery
Overall dimensions: 140*52* 48mm

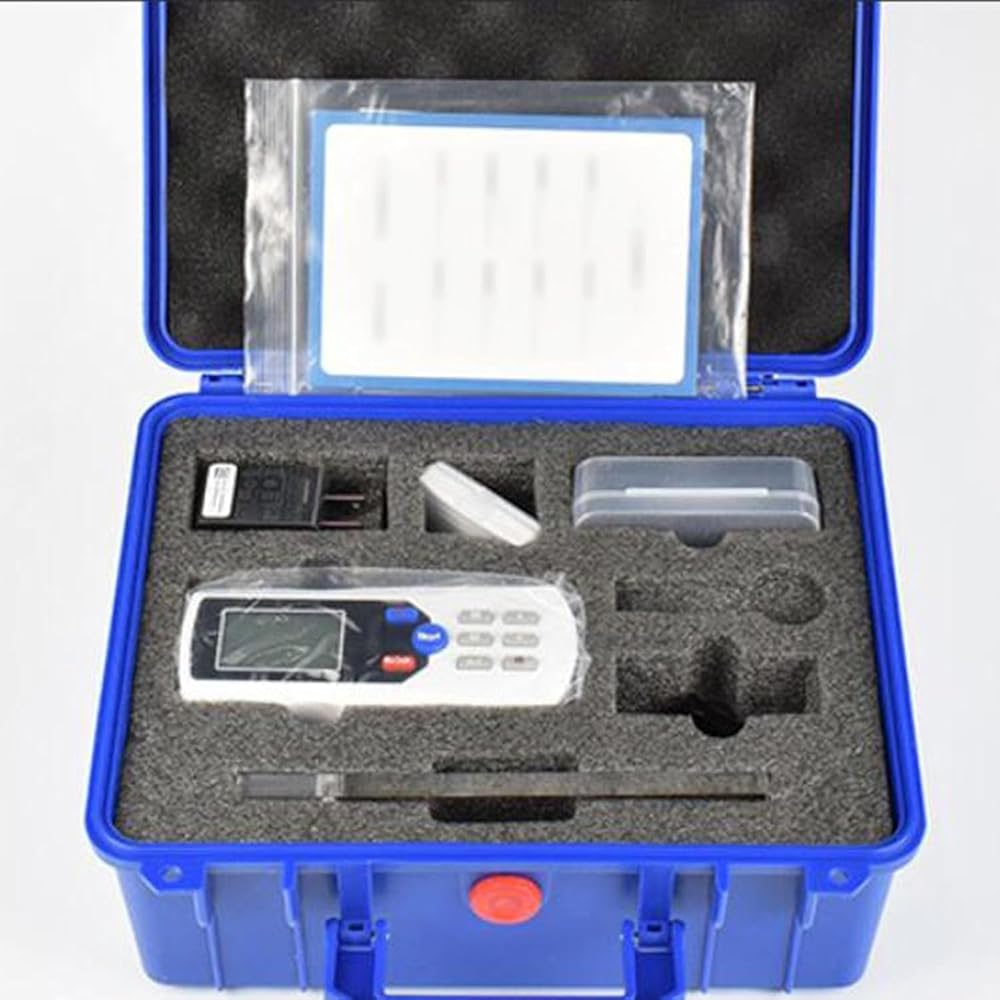

Products include:
1*Sur-face Roughness Tester
1*Packing Box

مرحبًا،

بحث

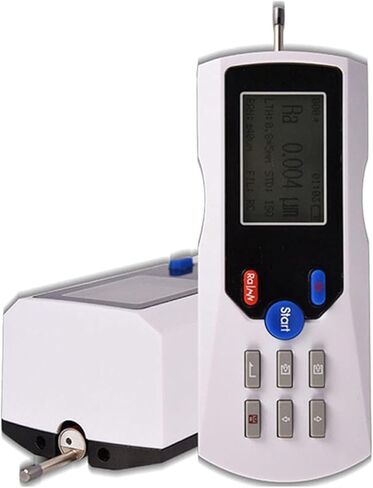

مقياس الملف الشخصي الرقمي المحمول، جهاز اختبار خشونة الوجه، دقة 0.001 ميكرومتر، مع شاشة LCD، مسبار ماسي، قابل لإعادة الشحن
