Finish Tester,Surface Roughness Tester,Precision 0.001μm,Digital Profilometer, Range Ra:0.005 Μm-16.00μm, with 100 Sets of Data Storage, Rechargeable, for Metal Workpiece

SAR 6,304
Brand
Generic
Weight
499 g
– 1 +

Special Features

  • 【VERSATILE PARAMETER MEASUREMENT】Surface Roughness Gauge, offers the capability to measure Multiple surface roughness parameters, including Ra, Rz=Ry(JIS),Rq, Rt=Rmax, Rp,Rv, R3z, R3y, RzJIS, Rs,Rsk, Rku, Rsm, Rmr
  • 【AMPLE DATA STORAGE】Profiler can store up to 100 sets of data and corresponding waveforms. Very useful for record keeping and data analysis. The USB interface allows external data transfer and connection
  • 【SURFACE ROUGHNESS TESTER】It can measure the surface roughness of machined parts, calculate the corresponding parameters according to the selected conditions, and display all measured parameters and graphics

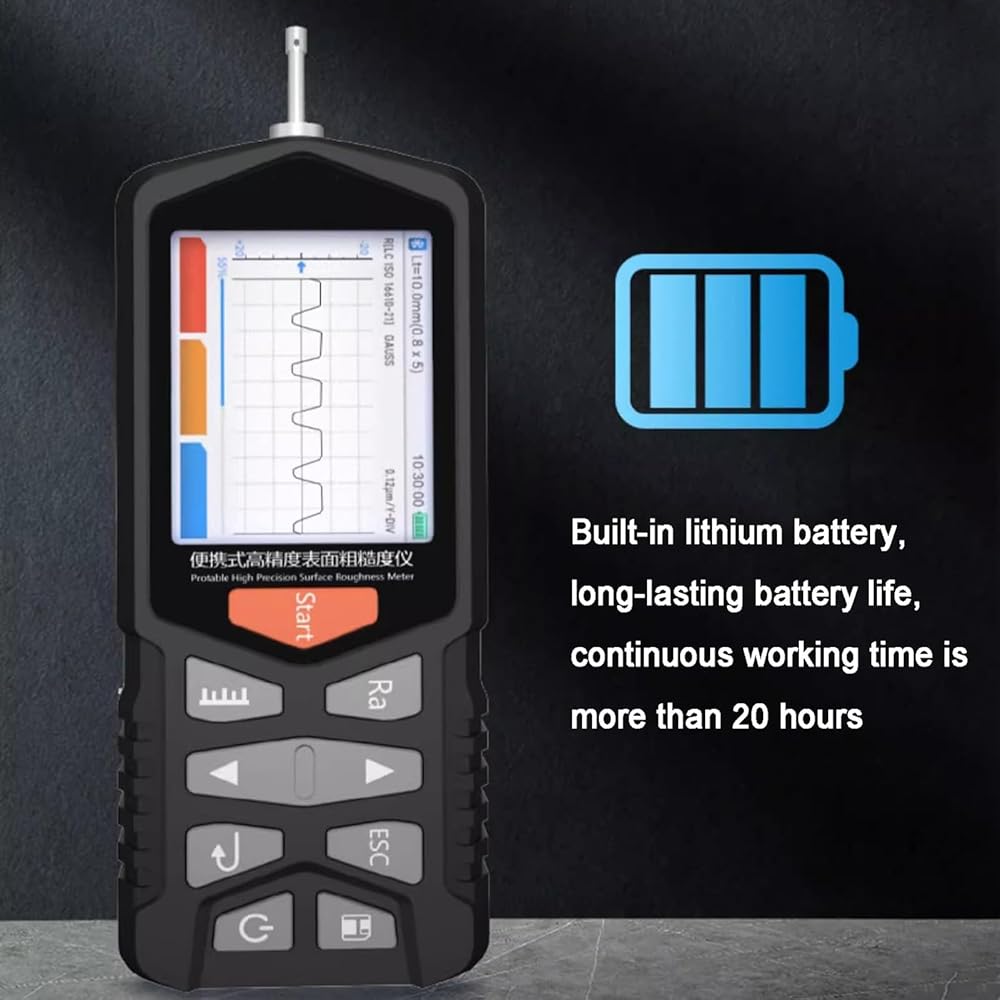

  • 【RECHARGEABLE】Built-in lithium-ion rechargeable battery and charging control circuit, large capacity, no memory effect, continuous working time greater than 20 h

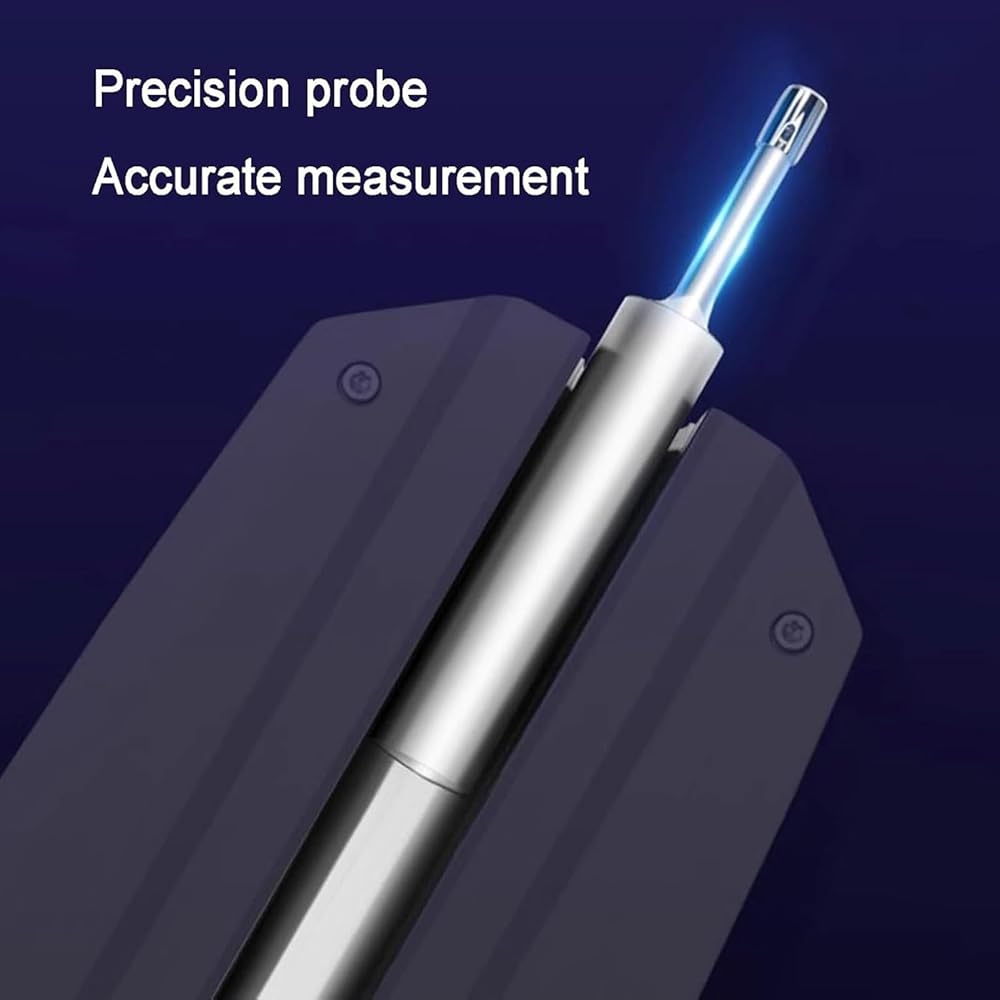

  • 【PROBE】Planar standard sensor, can measure planes and axes; when measuring the inner surface of a hole, the inner surface roughness of the hole with a diameter greater than 6mm, the maximum depth is 22mm

Description

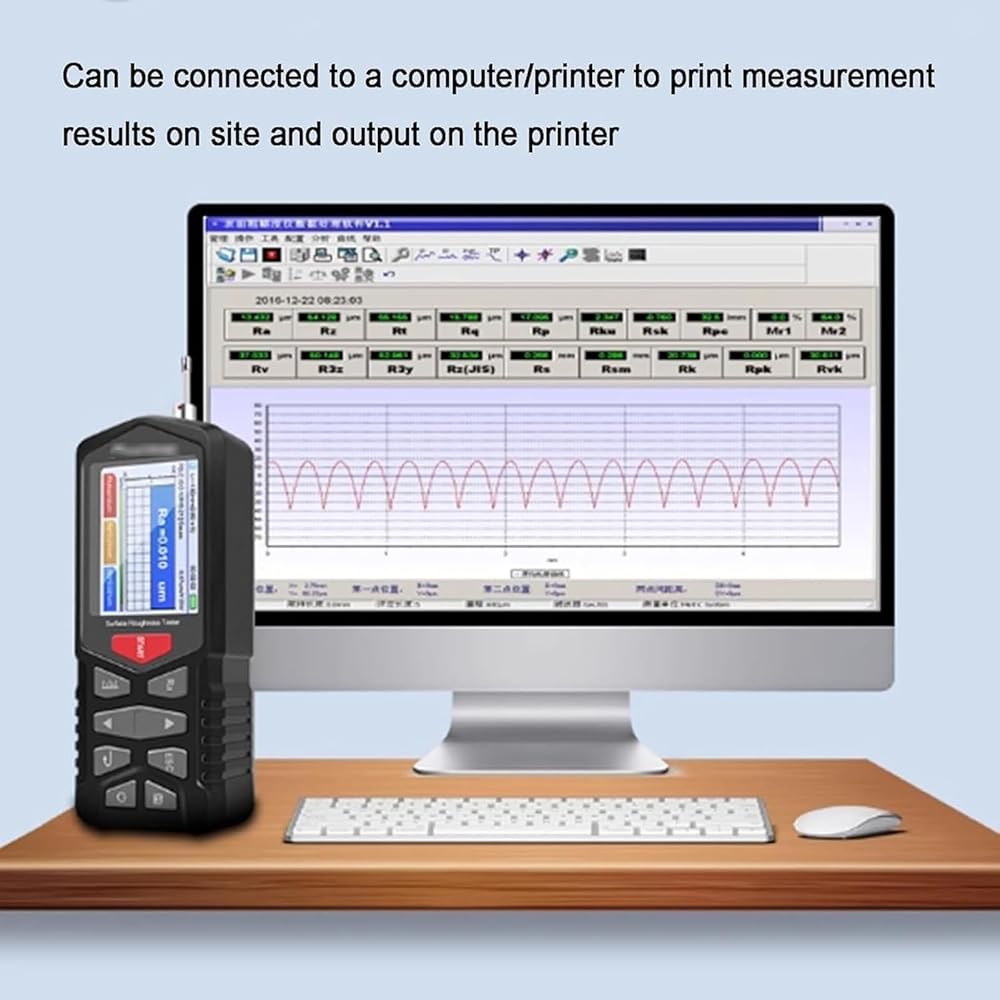

The surface roughness tester is suitable for production sites. The measurement results and graphics are clearly displayed on the LCD screen, and can be printed out and communicated with a PC

Specifications:
Measurement parameters: Ra, Rz=Ry(JlS), Rq,Rt=Rmax, Rp,Rv, R3z, R3y, RzJIS, Rs,Rsk, Rku, Rsm, Rmr
Measurement range: Ra: 0.005 μm~16.00 μm
Display range: Ra,Rq:0.005μm~16 μm; Rz,Rv,R3z,Rt,Rp,R3z:0.02 μm~160 μm
Rsm,Rs:1mm;Rmr:0~100%;Rsk:0~100%

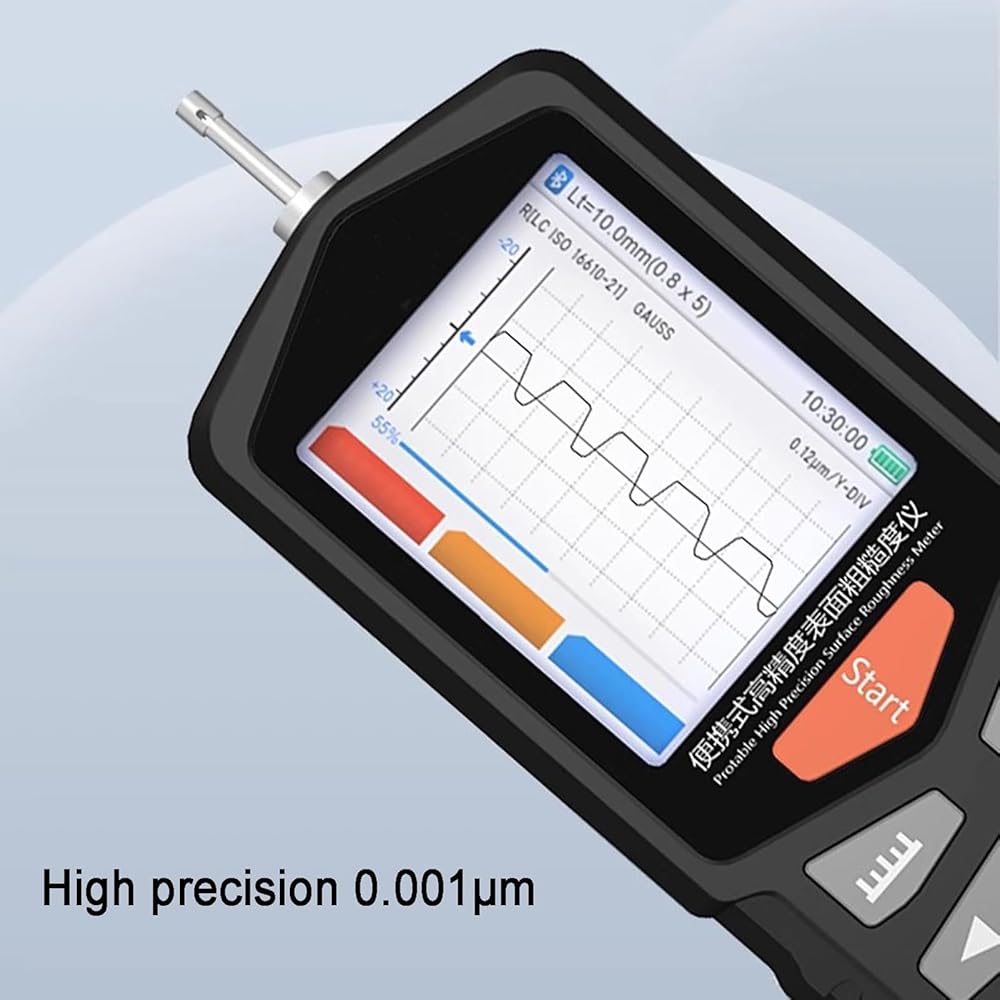

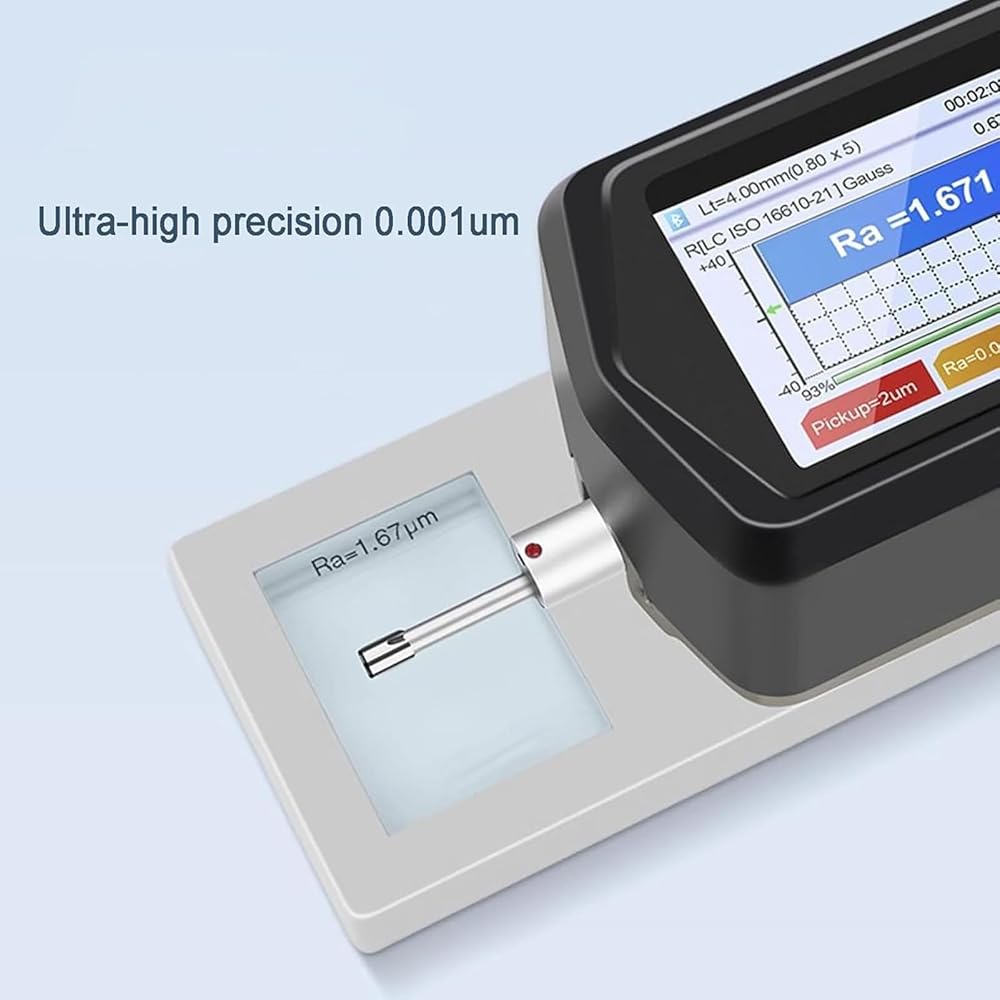

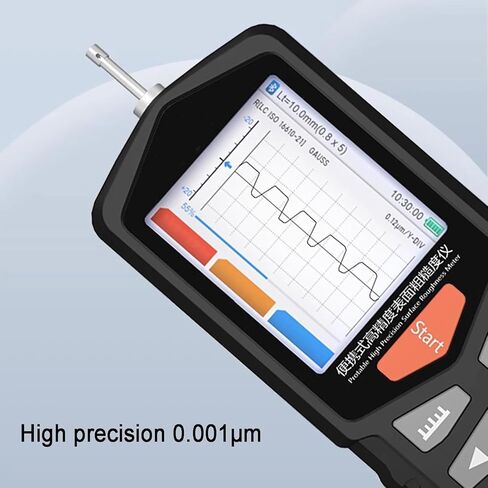

Indication accuracy: 0.001μm
Range:±20μm,±40μm,±80μm
Sampling length: 0.25,0.80,2.50,automatic
Maximum length: 17.5mm /0.71 inch
Minimum length: 1.3mm/0.052 inch
Tip angle: 90°
Measurement profile: roughness, waviness, original profile
Storage capacity: 100 sets of data
Data interface: USB
Battery: built-in lithium-ion rechargeable battery

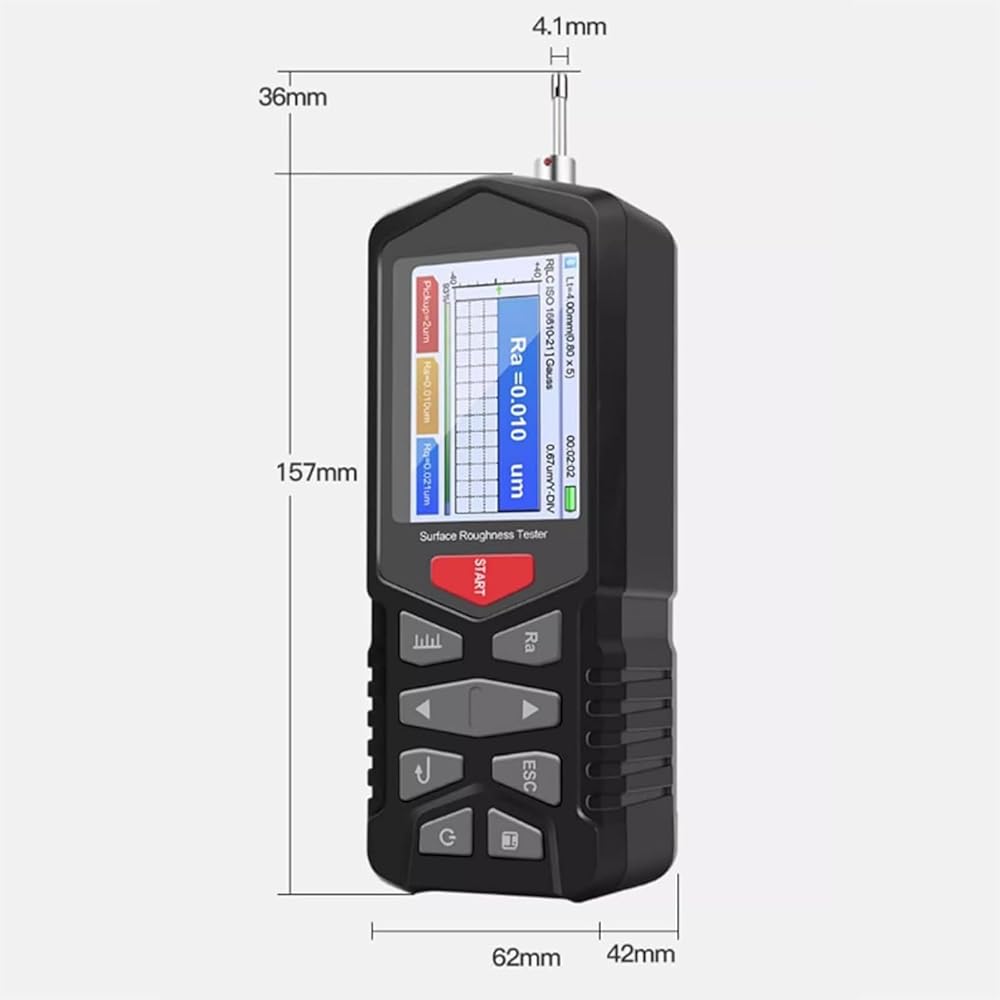

Dimensions: 157 mm x 63 mmx45mm

Product includes:
1*Surface Roughness Tester

NOTES
1. Please be aware that due to variations in lighting, environment, and monitor settings, there may be some color differences between the actual product and the pictures displayed
2. If you have any questions or concerns, please do not hesitate to contact us! We are committed to responding to your inquiries within 24 hours
