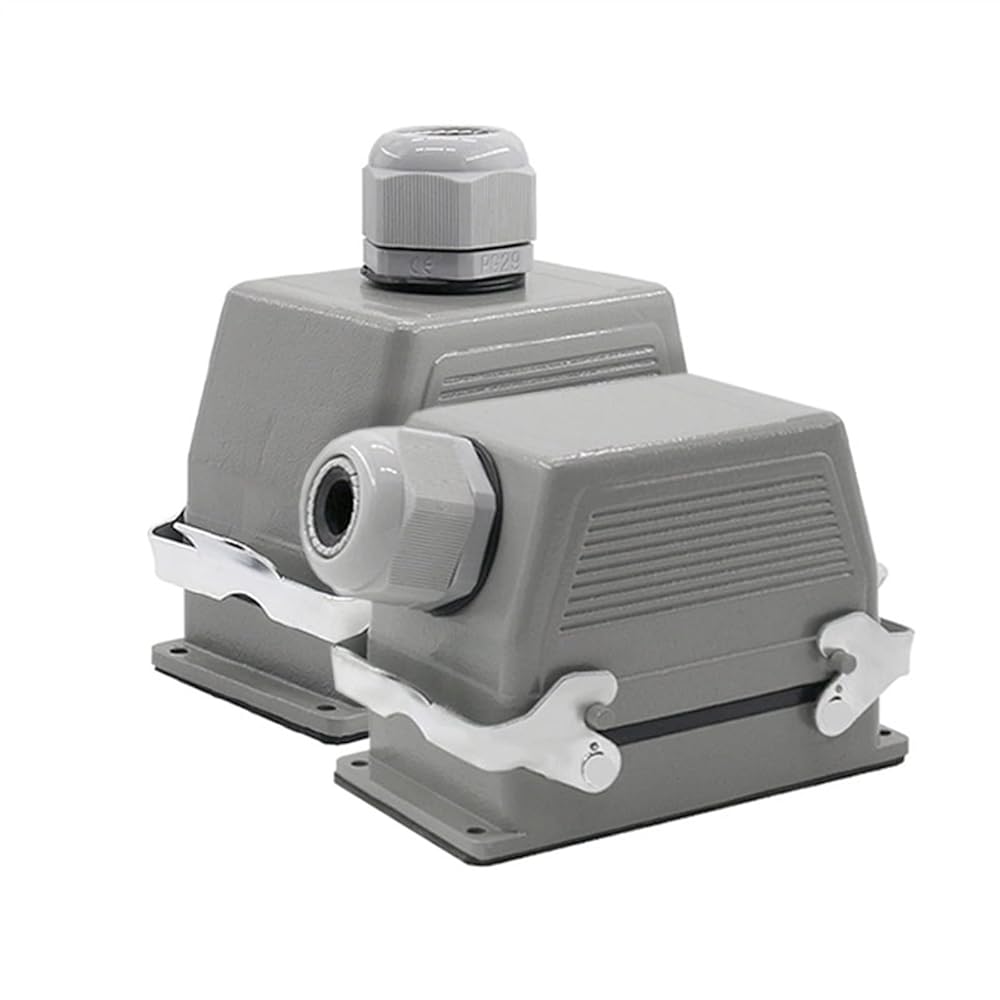

HDC-HE-048-1/2 Heavy Duty Connectors F/M 48pin Screw Connection Industrial Rectangular Aviation Connector Plug 1Pcs
See the second picture for details
Parameter
Plug body
Working current: 16A
Working voltage: 500V
Rated pulse voltage: 6KV
Pollution level: 3
Isolation resistance: 10
Material: Polycarbonate
Operating temperature range: -40~+125
Flame retardant grade (according to UL94): V0
Installation method: hole installation
Connectors
Material: Copper
Surface treatment: silver plated
Wiring form: screw connection
Screw tightening torque/test torque: 0.25Nm+
Wiringforms:screwfixing
Metal upper case/base
Material: Cast aluminum alloy
Surface treatment: high temperature powder coating
Locking device: stainless steel or iron galvanized
Operating temperature range: -40~+125
Protection class: IP65
