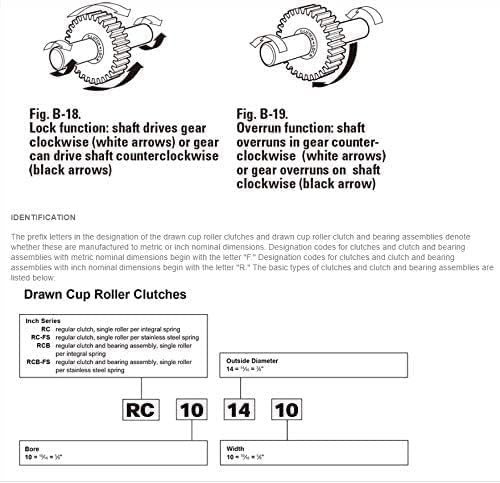

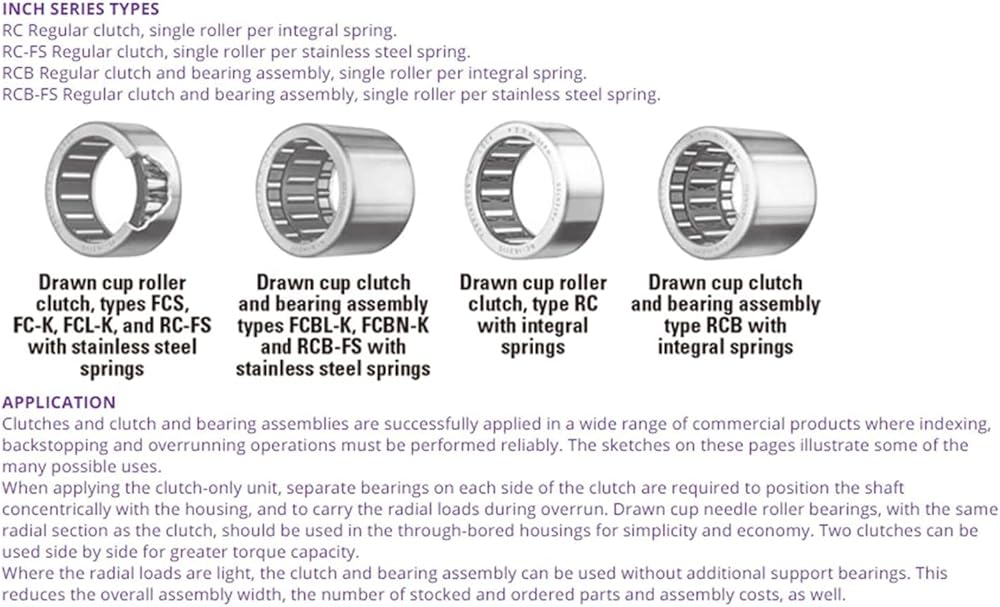

INCH SERIES TYPES
RC Regular clutch, single roller per integral spring.
RC-FS Regular clutch, single roller per stainless steel spring.
RCB Regular clutch and bearing assembly, single roller per integral spring.
RCB-FS Regular clutch and bearing assembly, single roller per stainless steel spring.
APPLICATION

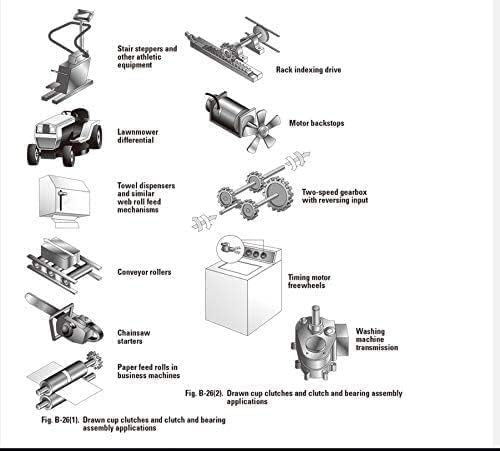

Clutches and clutch and bearing assemblies are successfully applied in a wide range of commercial products where indexing, backstopping and overrunning operations must be performed reliably. The sketches on these pages illustrate some of the many possible uses.
When applying the clutch-only unit, separate bearings on each side of the clutch are required to position the shaft concentrically with the housing, and to carry the radial loads during overrun. Drawn cup needle roller bearings, with the same radial section as the clutch, should be used in the through-bored housings for simplicity and economy. Two clutches can be used side by side for greater torque capacity.
Where the radial loads are light, the clutch and bearing assembly can be used without additional support bearings. This reduces the overall assembly width, the number of stocked and ordered parts and assembly costs, as well.

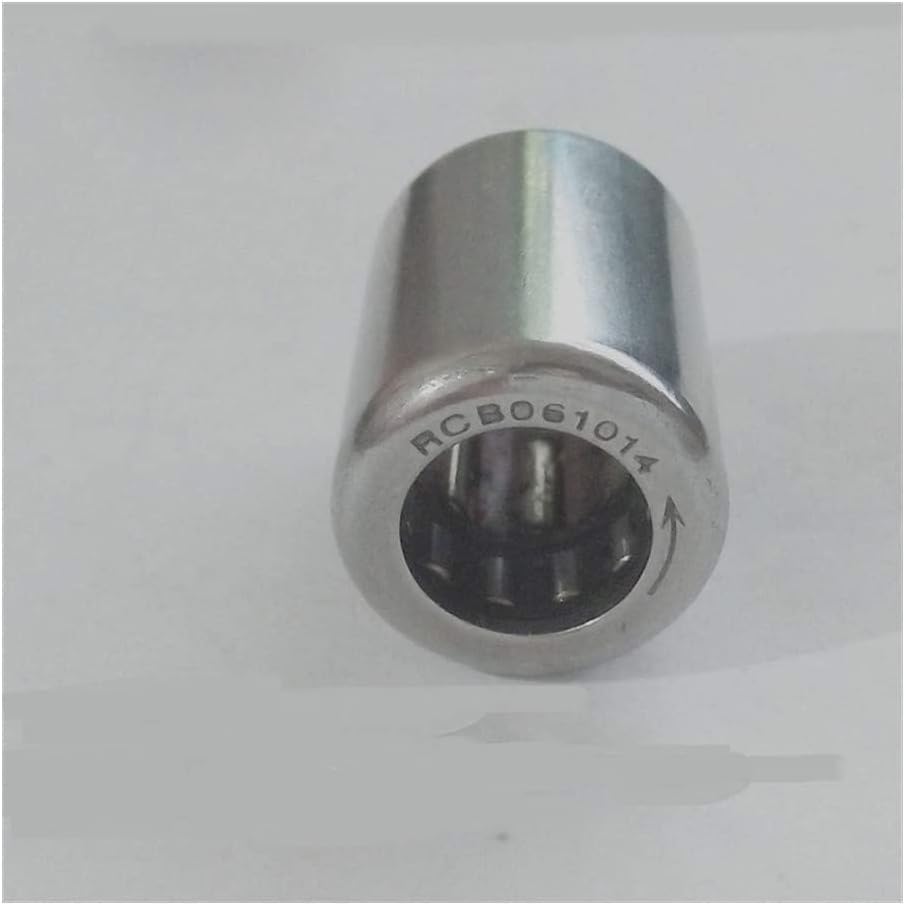

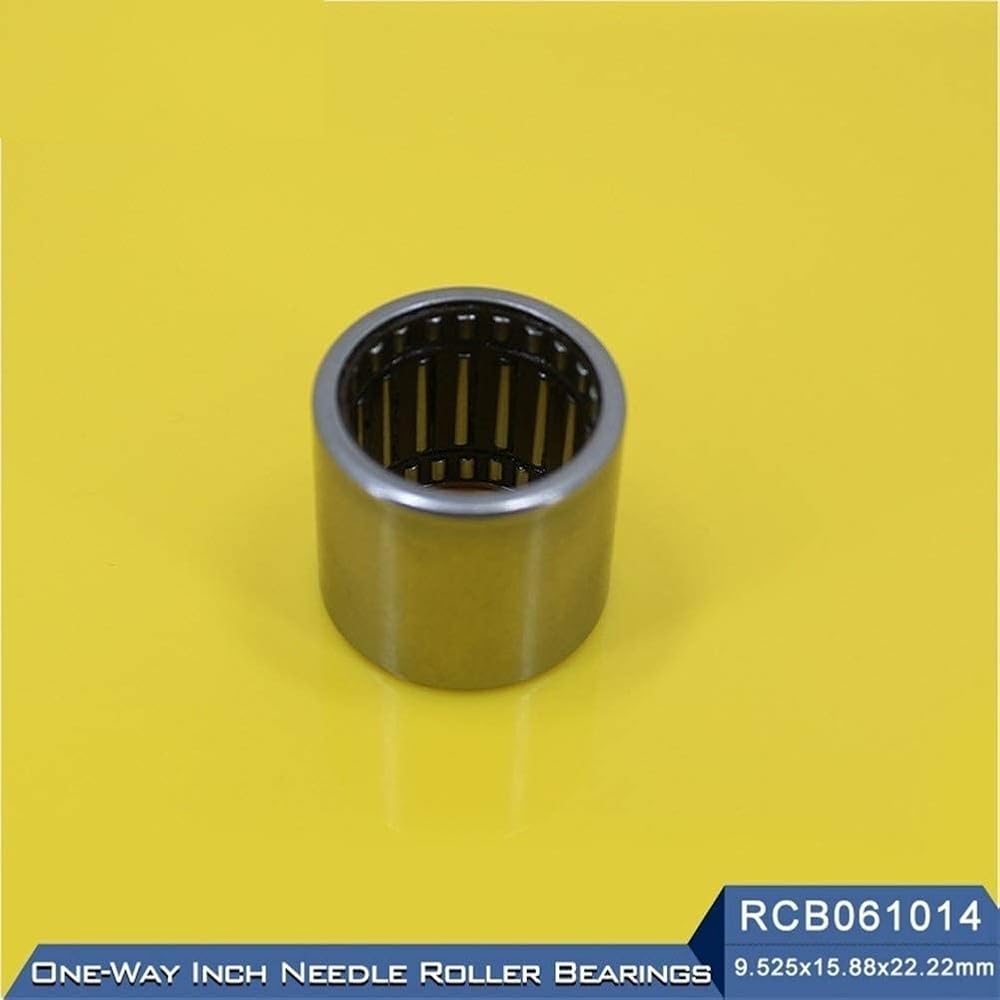

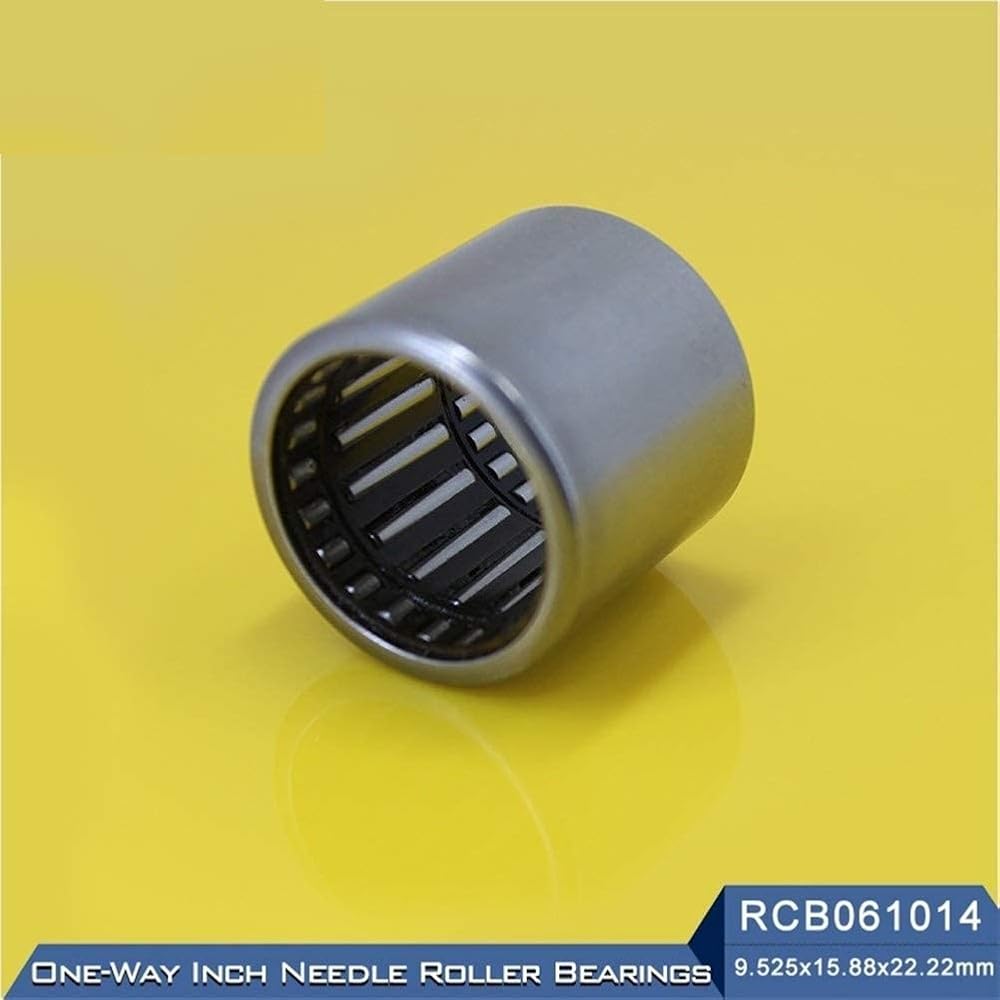

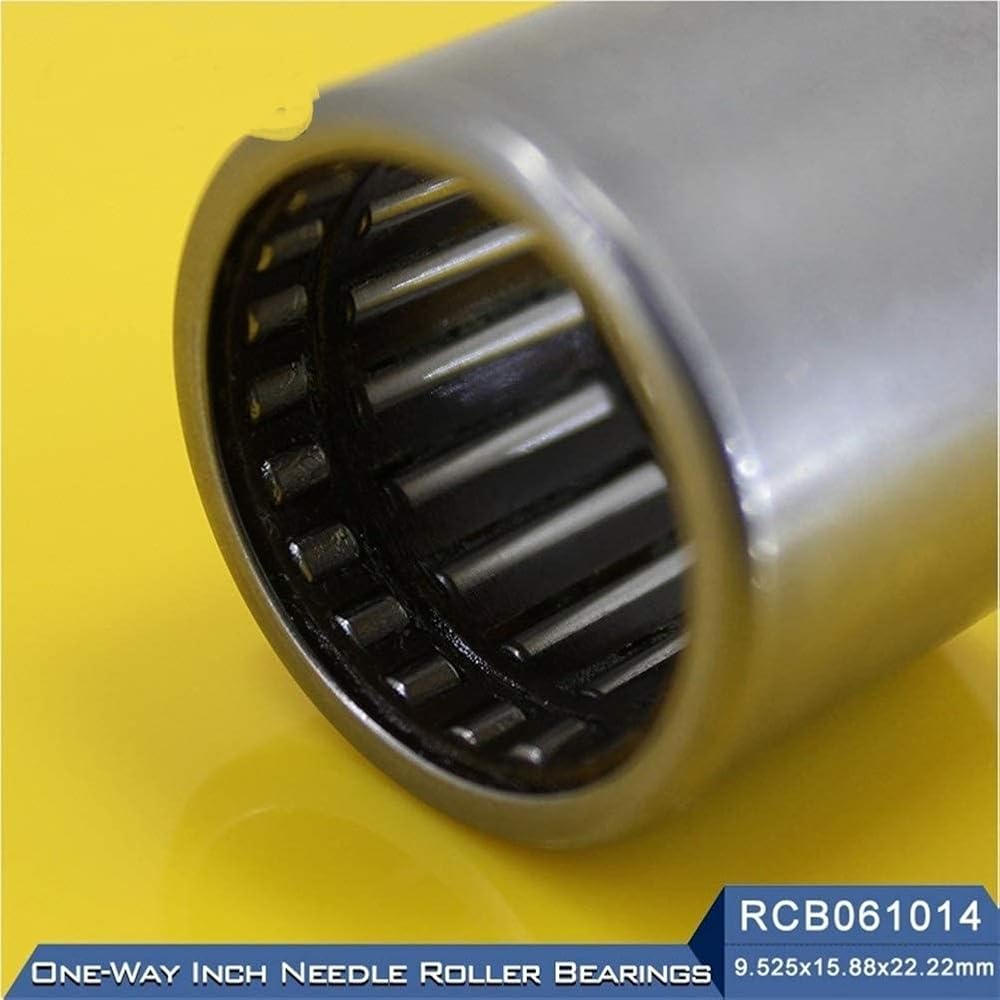

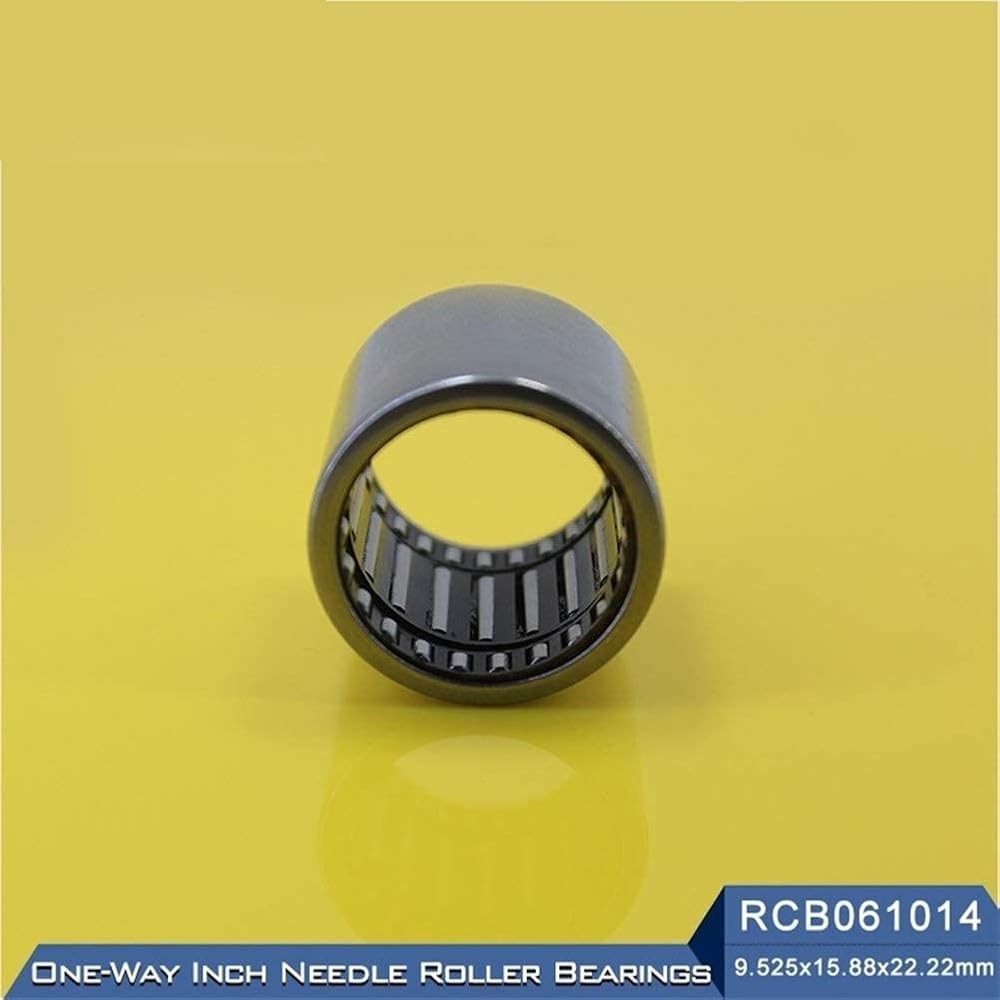

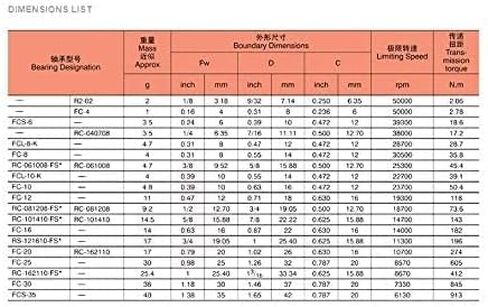

Model Number: RCB061014
Torque Capacity: 9.525*15.88*22.22mm
Surface Roughness: Ra 0.05
Material: 52100 Chrome Steel
Coatings: Antirust oil
Structure: Deep Groove
