LX50-C
مقاسLX50-C
مميزات خاصة

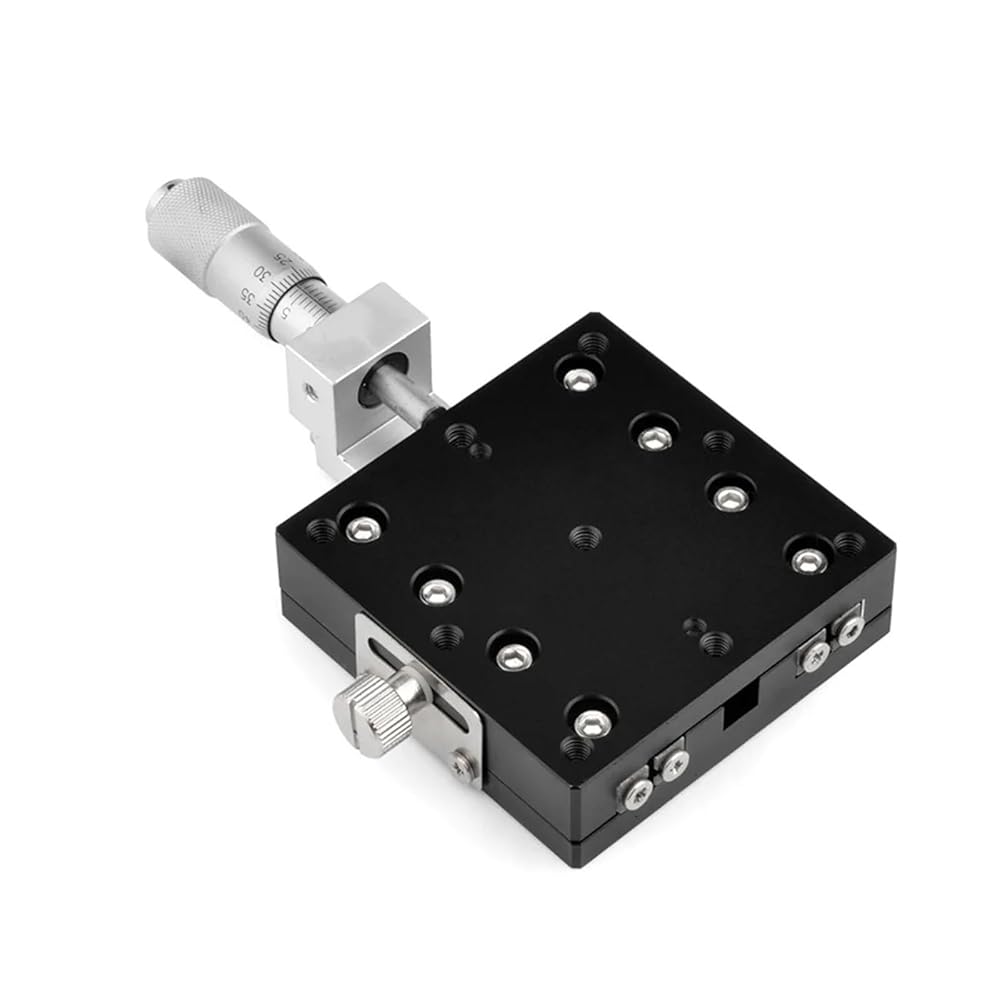

- Roller Tables
- Powerful load capacity: The platform has a load capacity of 44N and is able to support up to 4.5kgf
- Aluminum Alloy Construction: This platform is constructed from durable aluminum alloy to withstand x-axis manual displacement applications
- High-precision micrometer: Use high-precision micrometer for precise positioning
- Lightweight design: This X-axis manual displacement platform weighs only 0.18 kg
- Versatile X-axis manual displacement: The platform is designed for versatility and supports X-axis directional movement
وصف
Roller Tables
scope:
1.Moving direction: X-axis direction
2. Body material: aluminum
3. Driving mode: differential head
4. Workbench size: 50x50mm
5. Countertop thickness: 18mm
6. Stroke: ±6.5mm
7. Load: 44N (4.5kgf)
8.Minimum size: 0.01mm
9. Accuracy level: 0.01mm
10. Parallelism: 0.02mm
11. Weight: 0.18kg
