Specification:

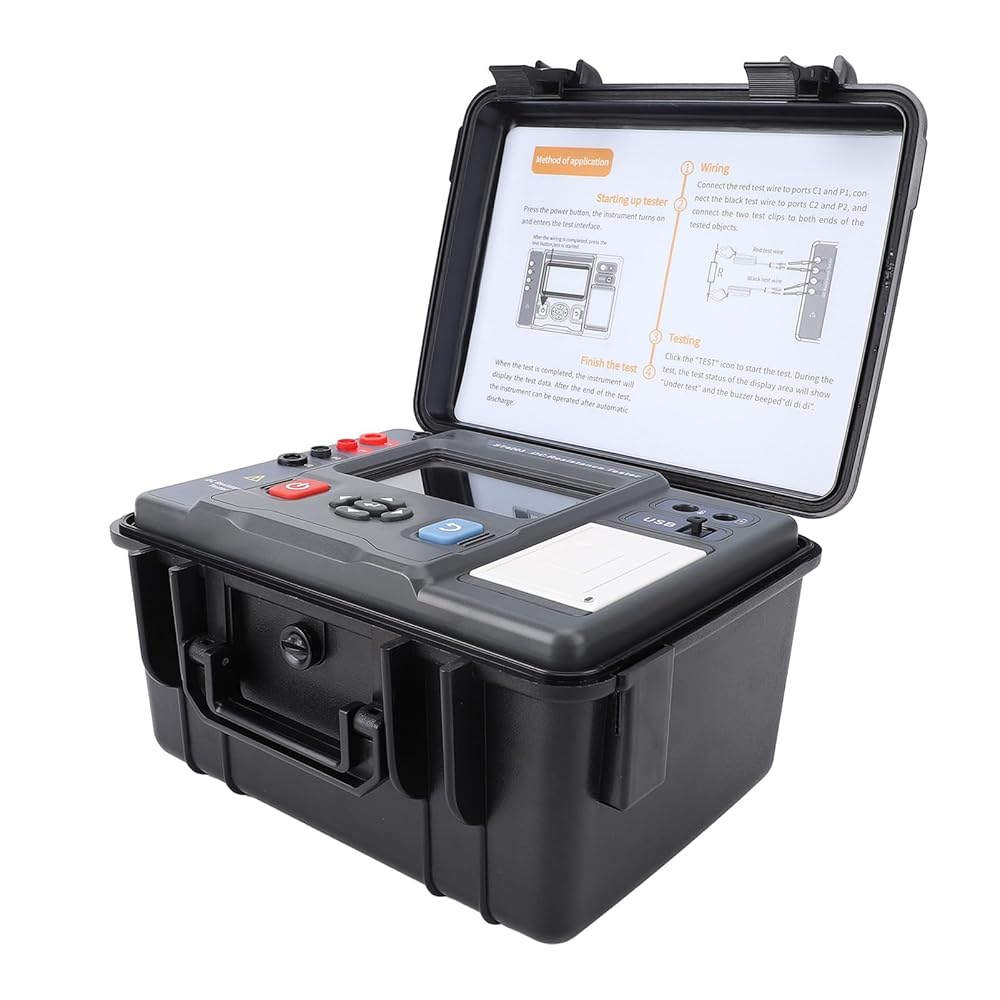

Item Type: High Voltage Megohmmeter
Material: ABS
Temperature Characteristics: Use temperature range plus test 0.3/°C. (Outside of 18℃ to 28℃)
Calculation Method: Accuracy = ( Current Gear Accuracy) + 0.3x(Temperature Difference Number) x (Current Gear Accuracy)
Example: Use of the environment 8 ℃ / 20A current gear The accuracy of the gear ± 0.2% FS ± 10dgt
Accuracy = (0.2%FS±10dgt) + 0.3×10×(0.2%FS±10dgt) = 0.8%FS±40dgt
(Note: 1mA current 1000K level test accuracy is only valid from 18℃ to 28℃)
Technical specifications
Resistor Range: 10.0uΩ-1000.0KΩ
Resolution: 0.1 uΩ
Overflow Display: The “OL” symbol is displayed when the overflow range is exceeded.

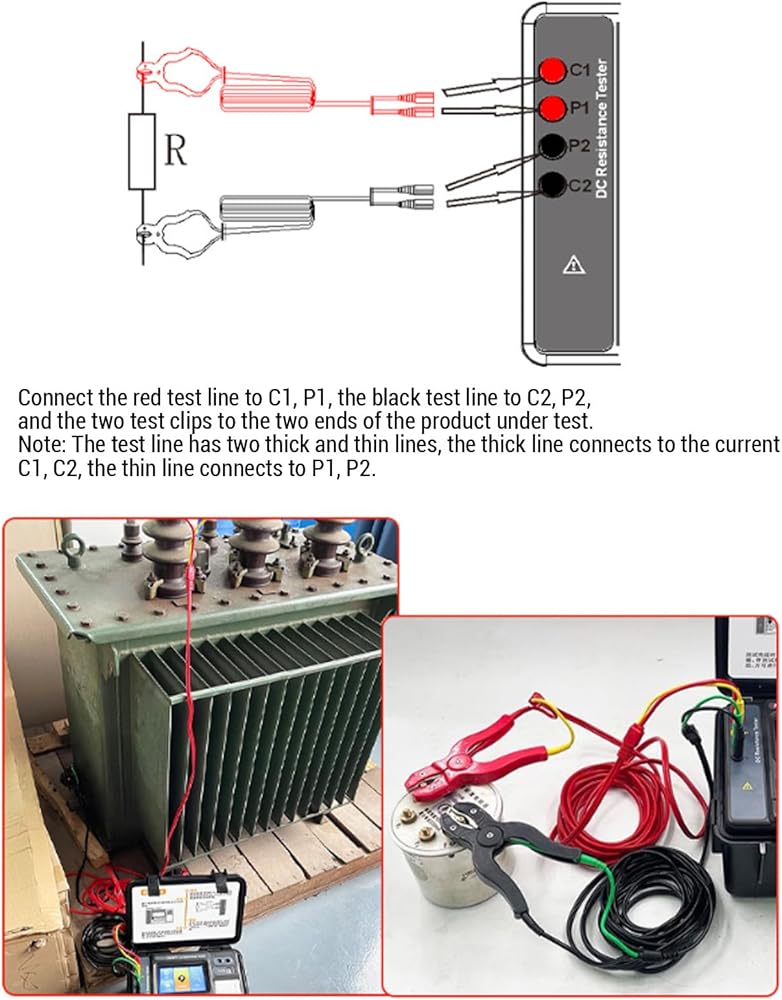

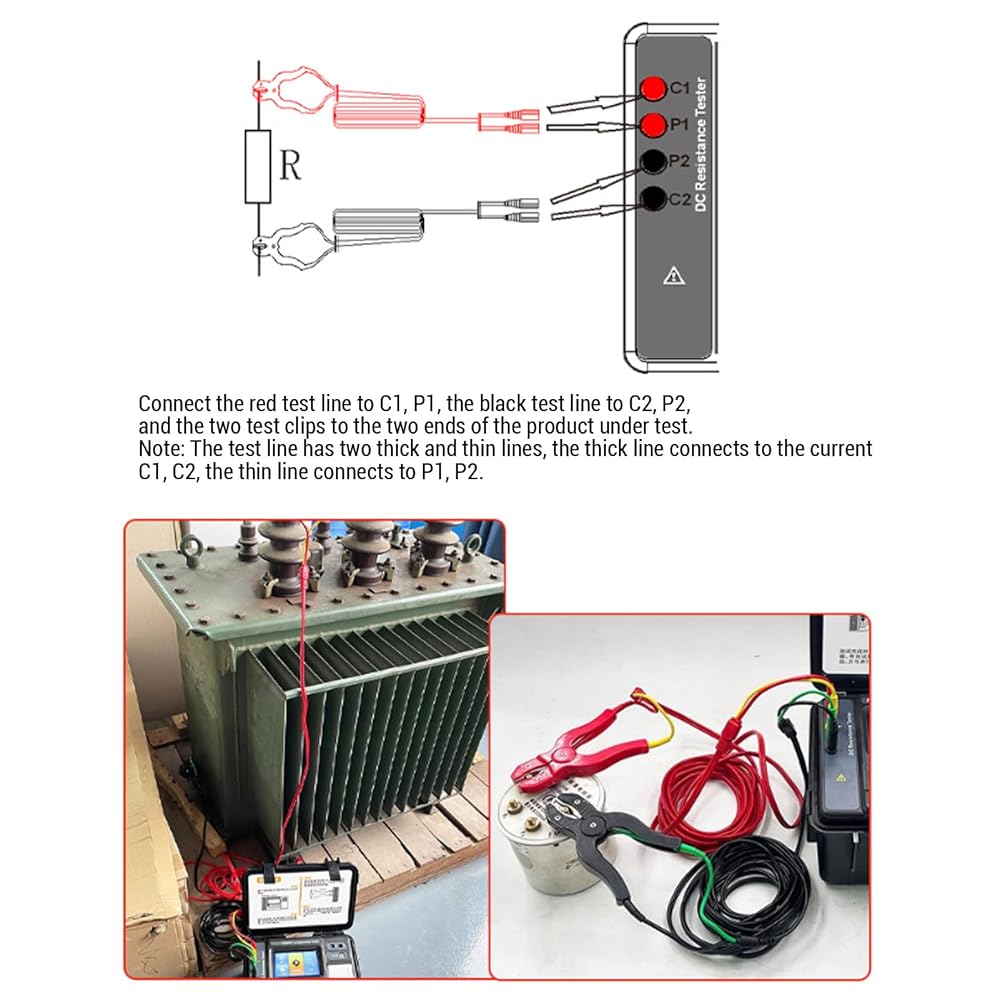

Test Method: Four Wire Method

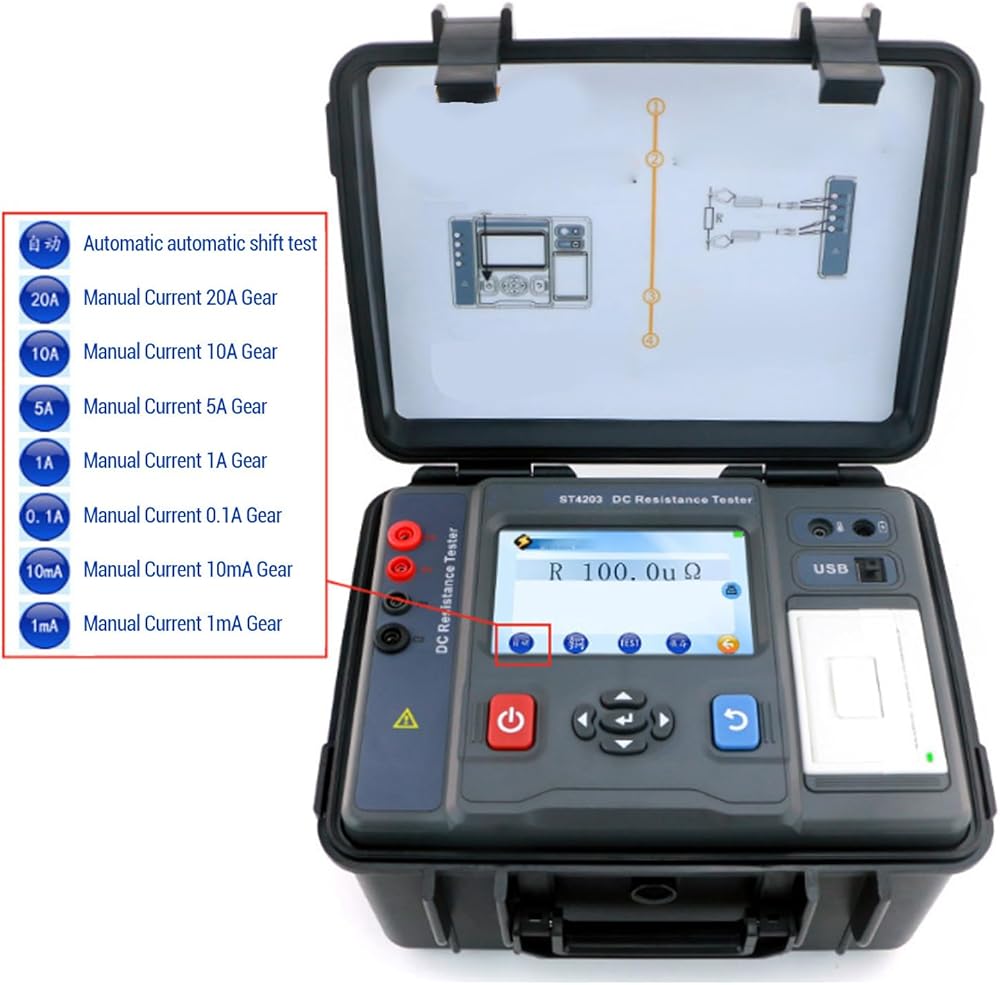

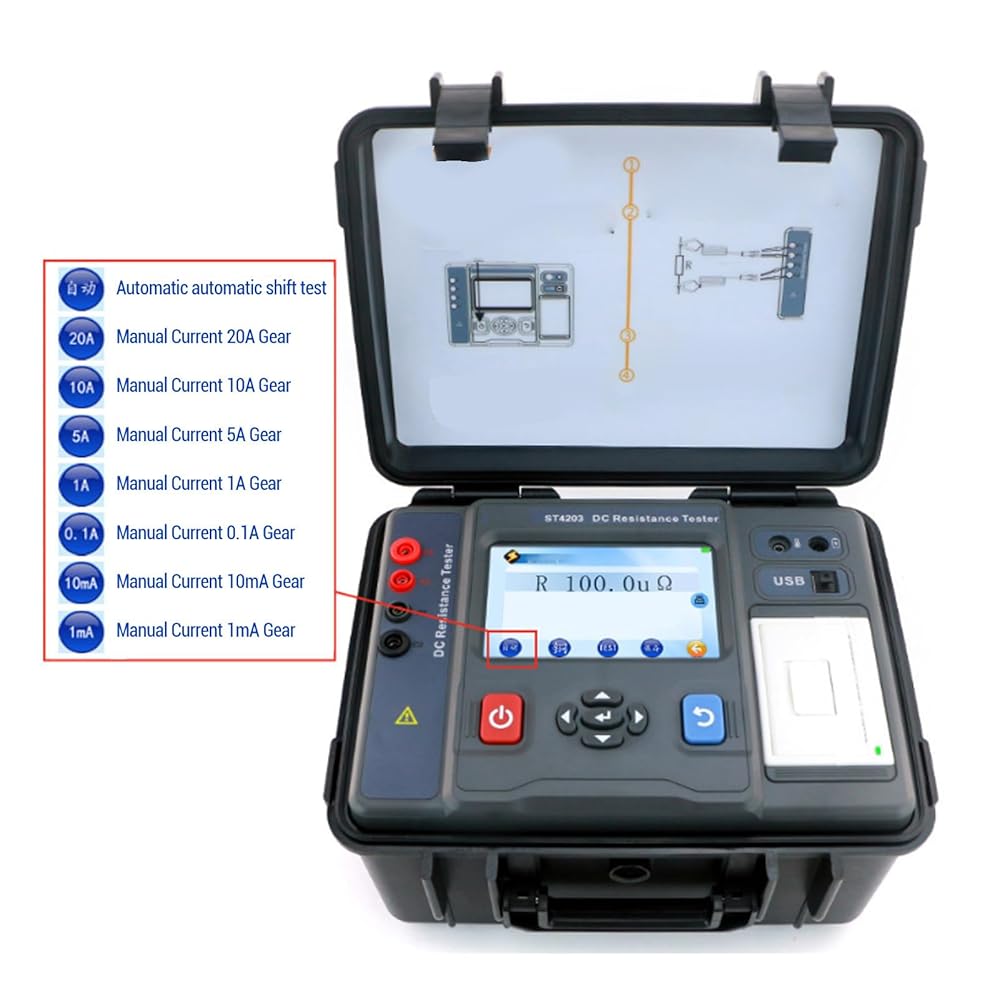

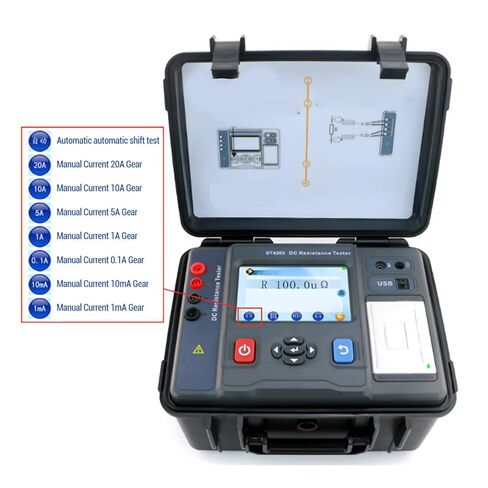

Test Current: 20A, 10A, 5A, 1A, 0.1A, 10mA, 1mA
Maximum Short Circuit Current: 20A
Temperature Detection: Yes, External Temperature Probe, Internal Temperature Sensor, Double Temperature Sensor
Temperature Conversion: Yes, Temperature Conversion, Internal Temperature Sensor, Double Sensor Design
Overload Guard: Yes, Overload Guard
Automatic Discharge: Yes
Power Source: DC14.6V 12000mAh High Capacity Li Battery (Included)
Charging Function: Yes

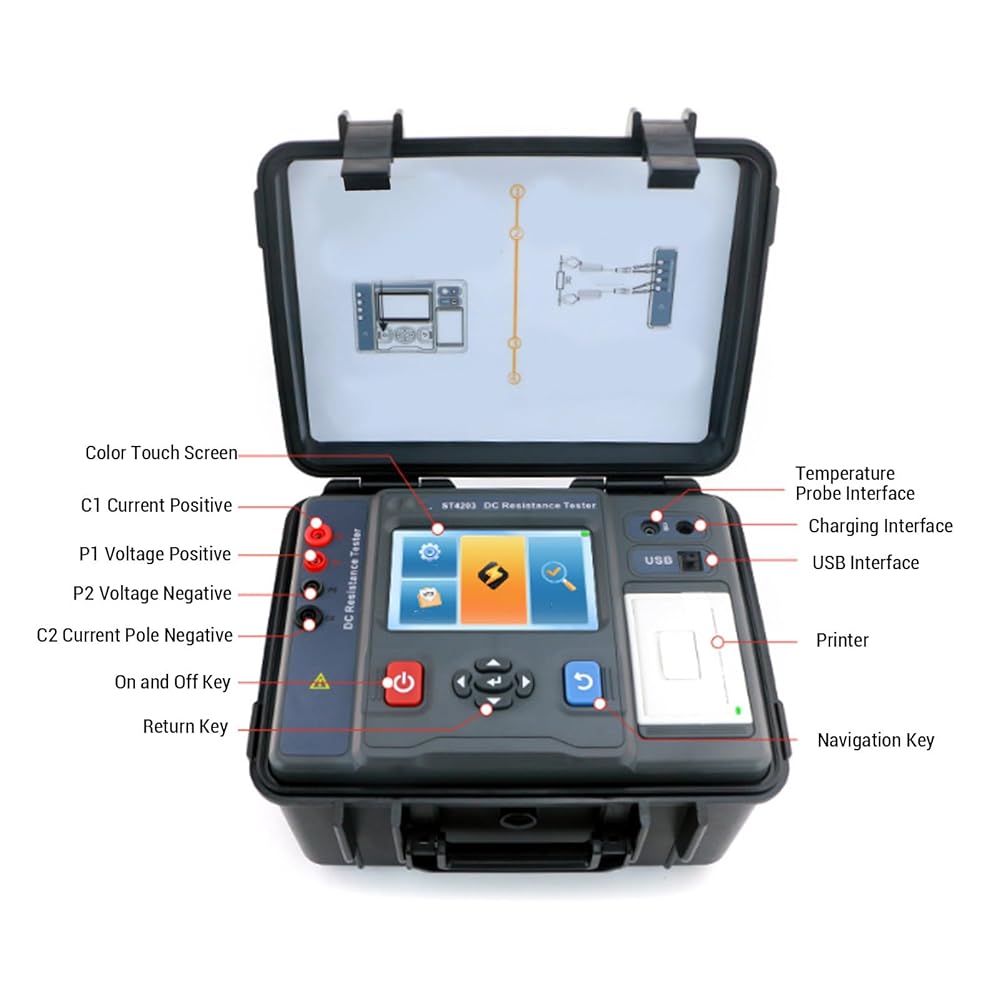

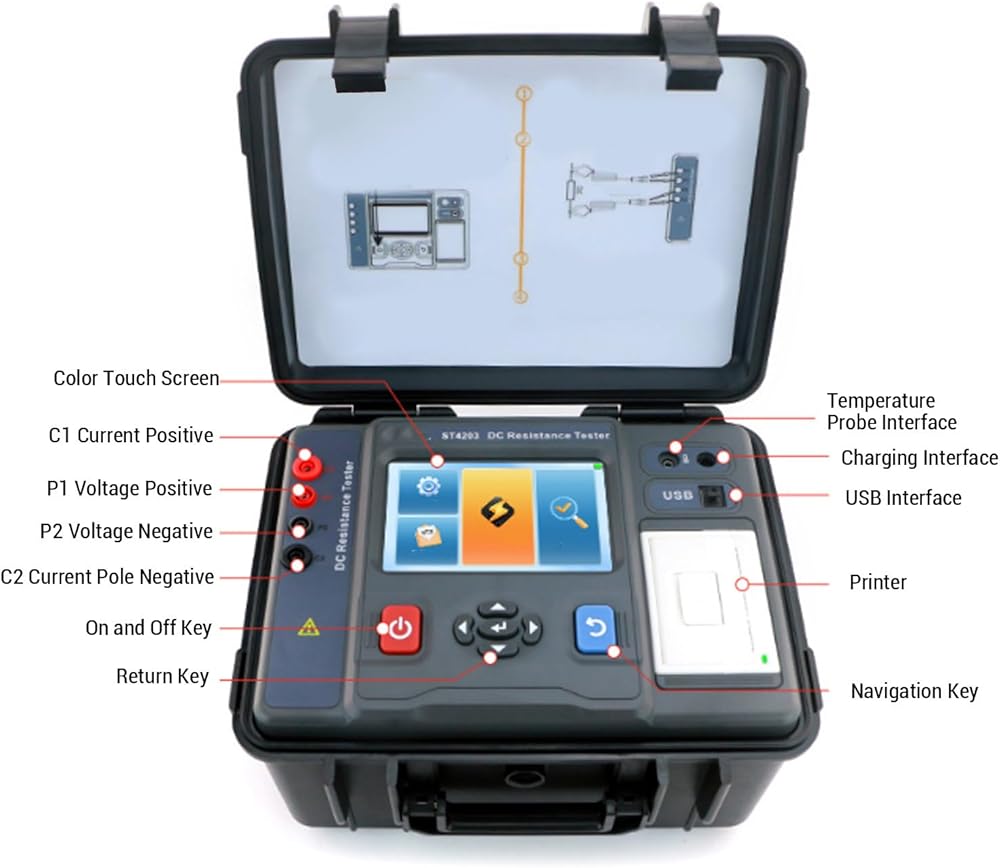

Display Mode: 5 Inch Touch Screen (854dots x 480dots) Full Color LCD Display
Interaction Mode: Touch Screen, Keypad
LCD Size: Length and Width: Approx. 108 x 65mm / 4.25 x 2.56in
Instrument Size: Length, Width and Height: Approx. 277.2 x 277.5 x 153mm / 10.91 x 10.93 x 6.02in

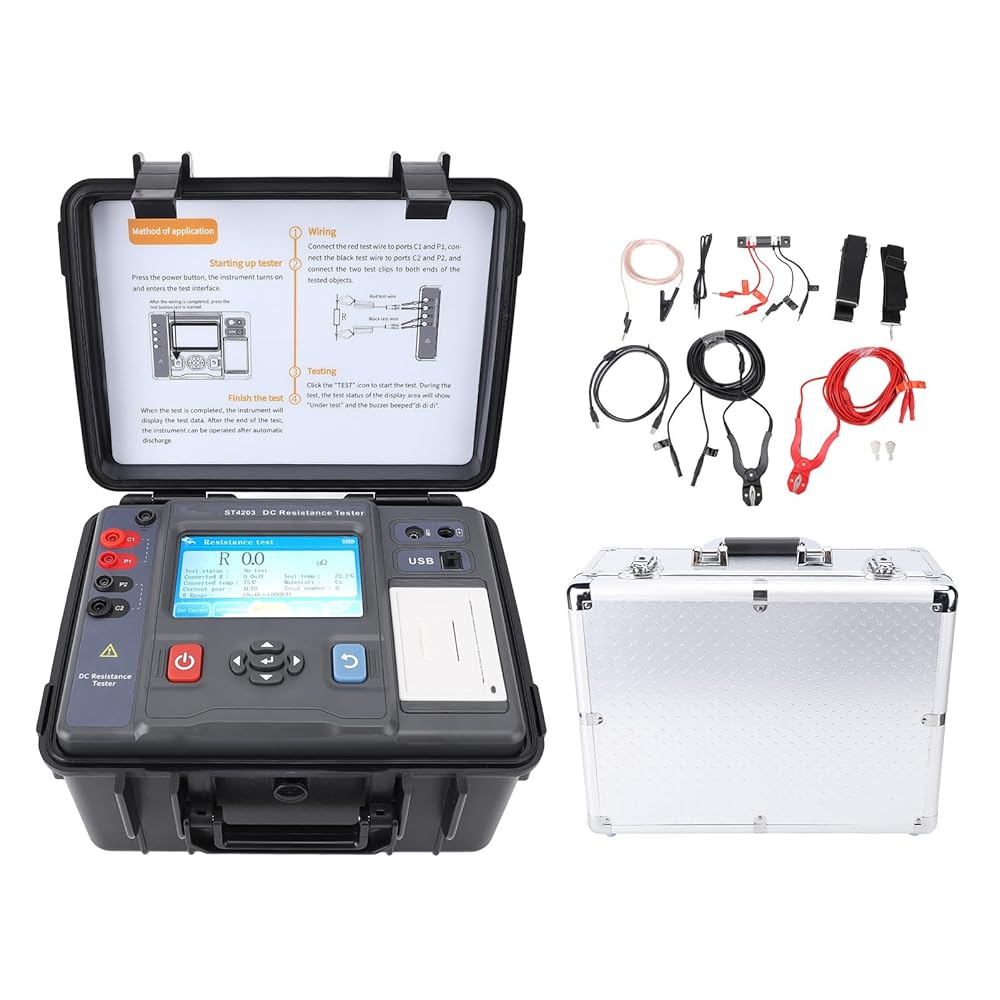

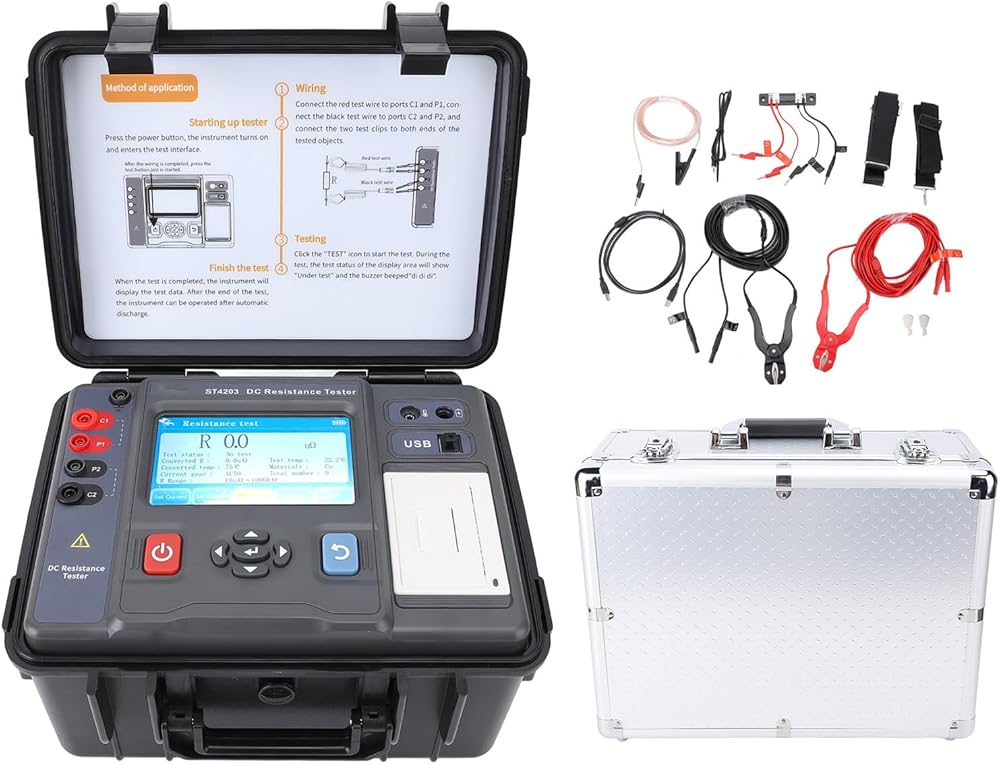

Test Cable Length: 5 Meters, 1 each of red and black
Cell Phone APP: Yes, Bluetooth
