Feature:

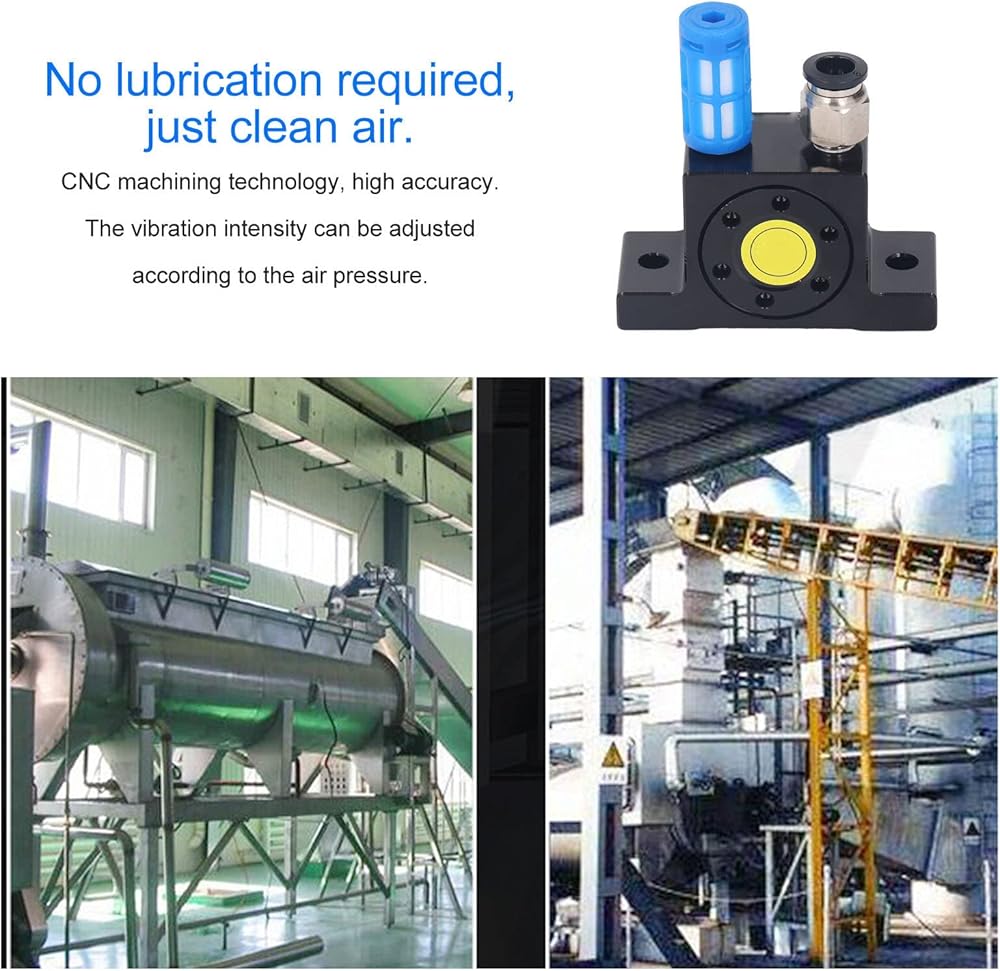

1. Reliable Working: No lubrication required, just clean air. Compared to the force they provide, these vibrators use very little compressed air.
2. High Accuracy: OMT CNC machining process allows the tolerance accuracy to be controlled within 2 micrometers, very high in accuracy.

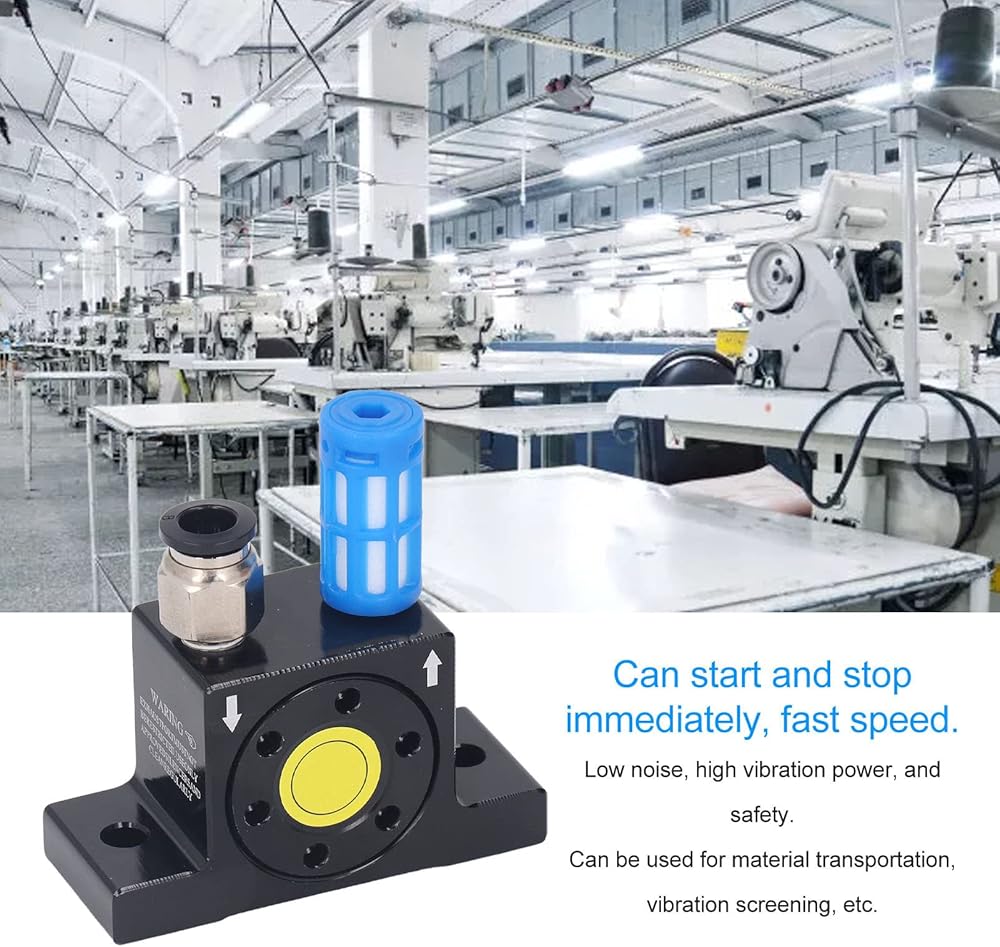

3. Free Adjustment: The vibration can be adjusted according to the air pressure, and can be immediately started or stopped. It has fast speed, low noise, high vibration force, and is safe.
4. Low in Noise: An eccentric copper counterweight is installed inside the gear, and air is filled into the air inlet to impact the gear, generating thrust to rotate the gear. During rotation, the centrifugal force of the eccentric counterweight generates vibration, and the gear is driven by bearings, resulting in low noise.

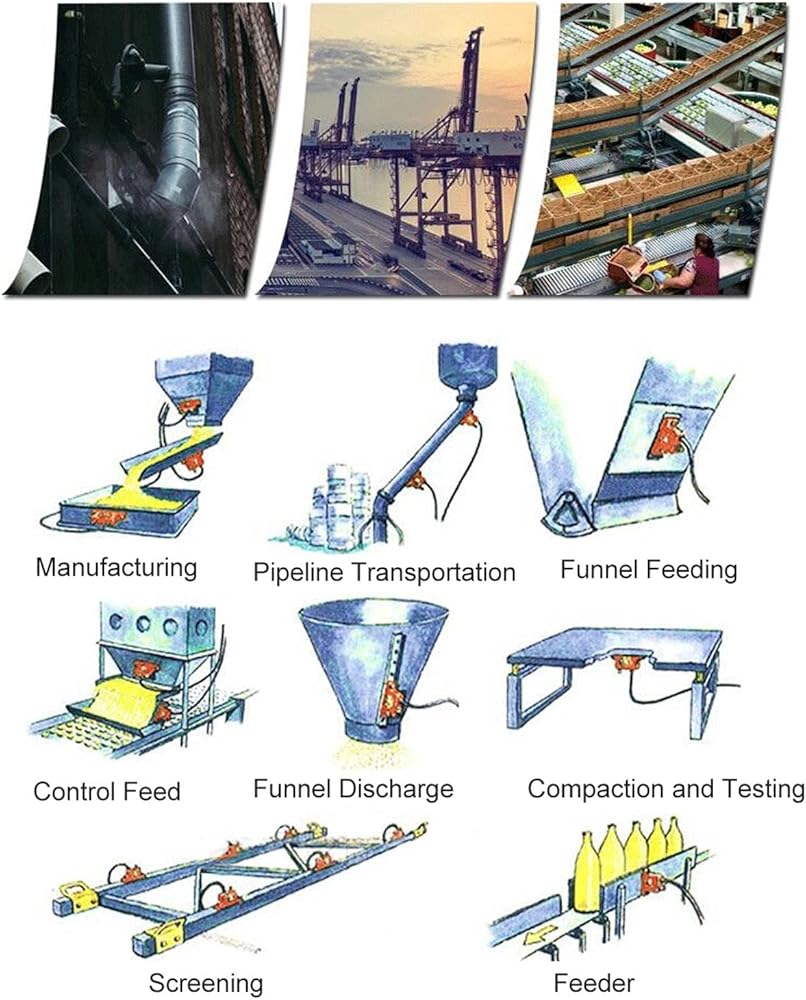

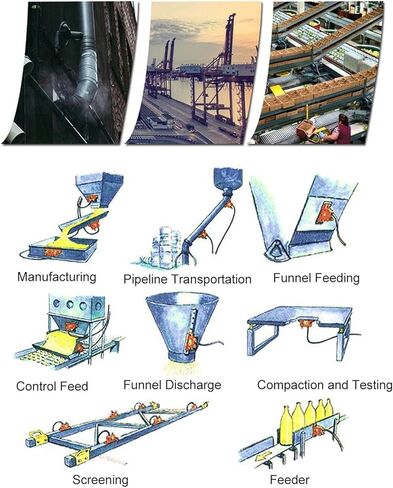

5. Practical Using: Can be used for material transportation, vibration screening, assisting in packaging filling, casting sand mold vibration, etc.
How to Use:
Connect to the pneumatic source for use.
Specification:

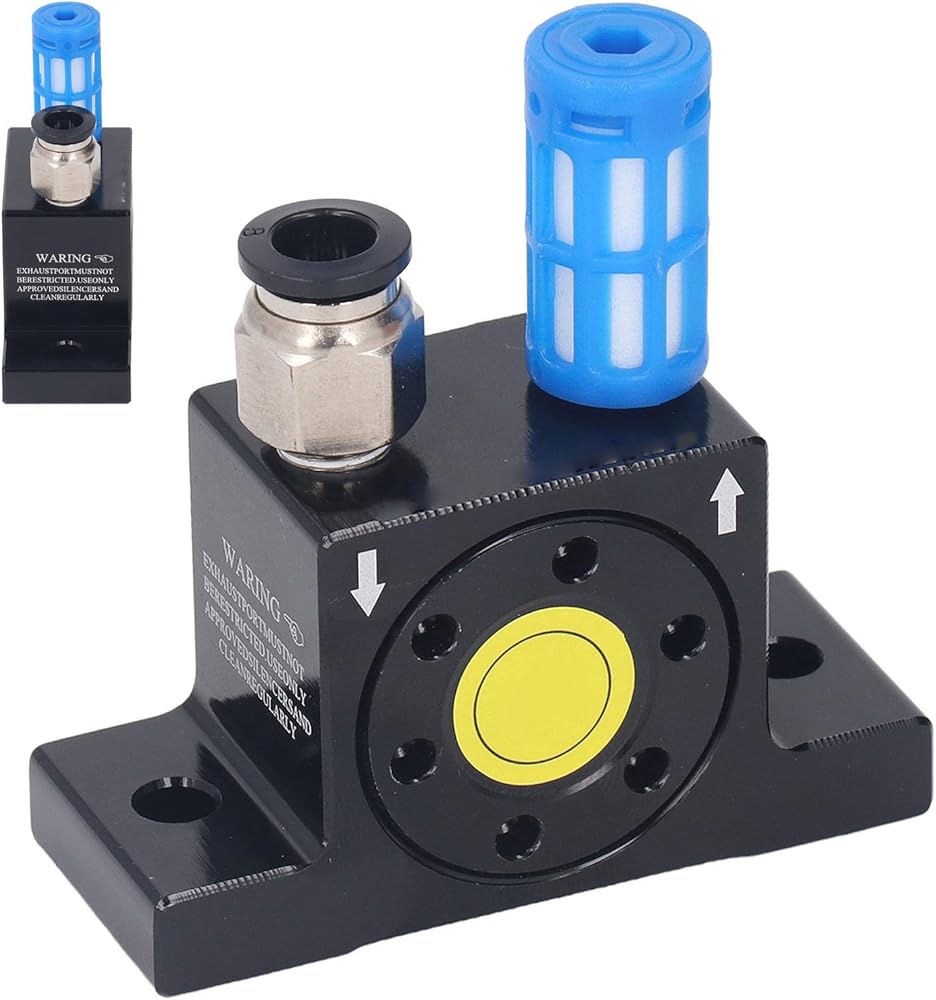

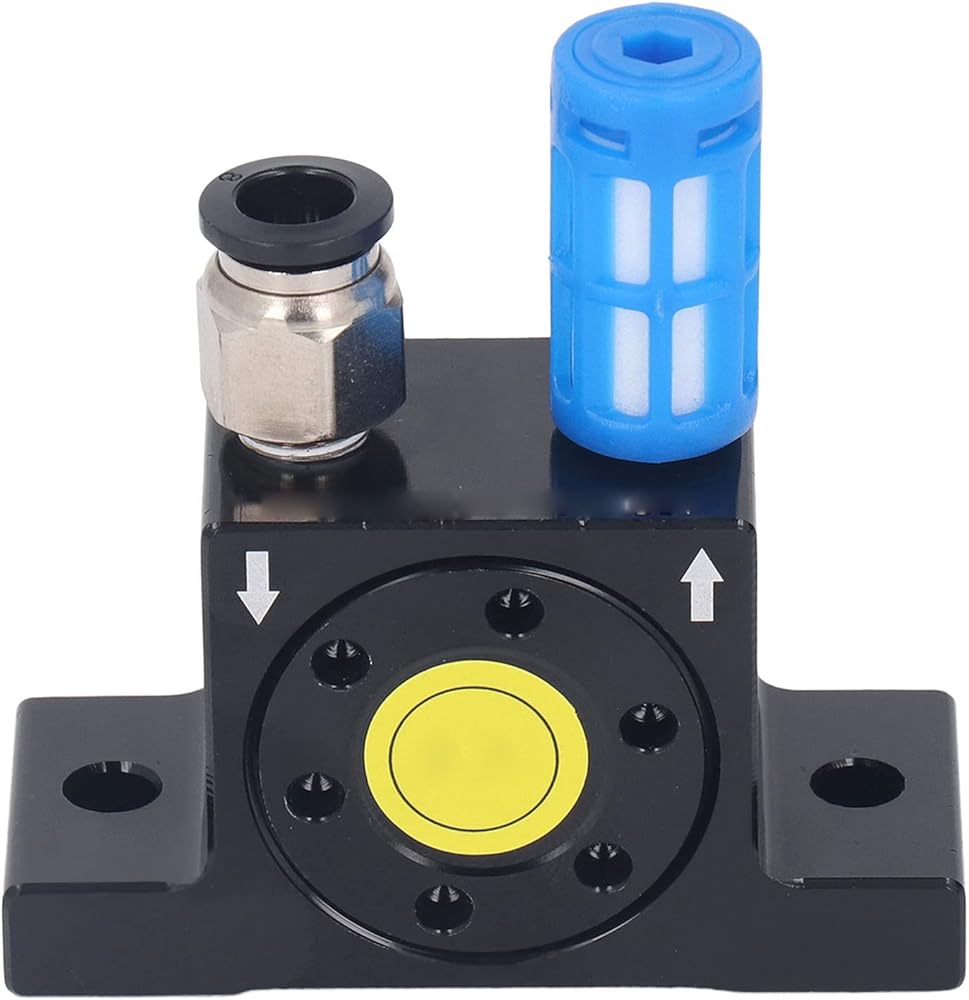

Item Type: Pneumatic Turbine Vibrator
Model: GT4
Vibration Frequency Per Minute: 11,500 times for 0.2MPa. 12,500 times for 0.4MPa. 13,500 times for 0.6MPa.
Vibration Force: 130N for 0.2MPa. 165N for 0.4MPa. 210N for 0.6MPa.
Air Consumption Per Minute: 30 for 0.2MPa. 40 for 0.4MPa. 50 for 0.6MPa.

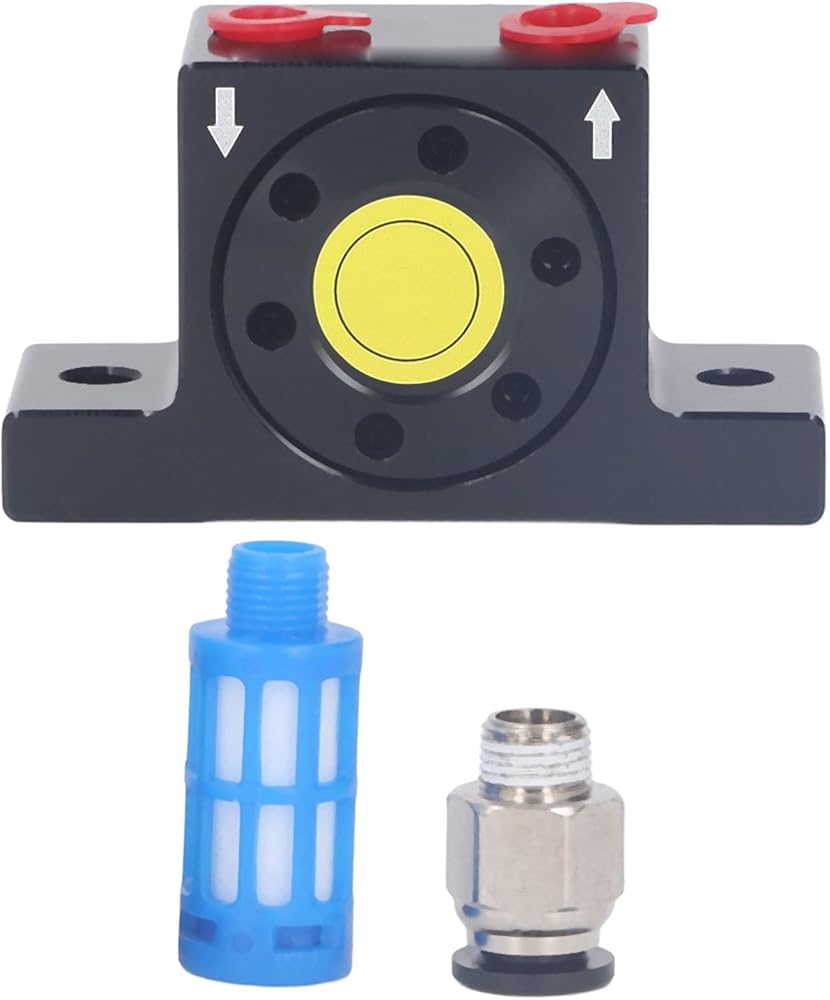

package List:
1 x Pneumatic Turbine Vibrator1 x Connector
1 x Silencer
