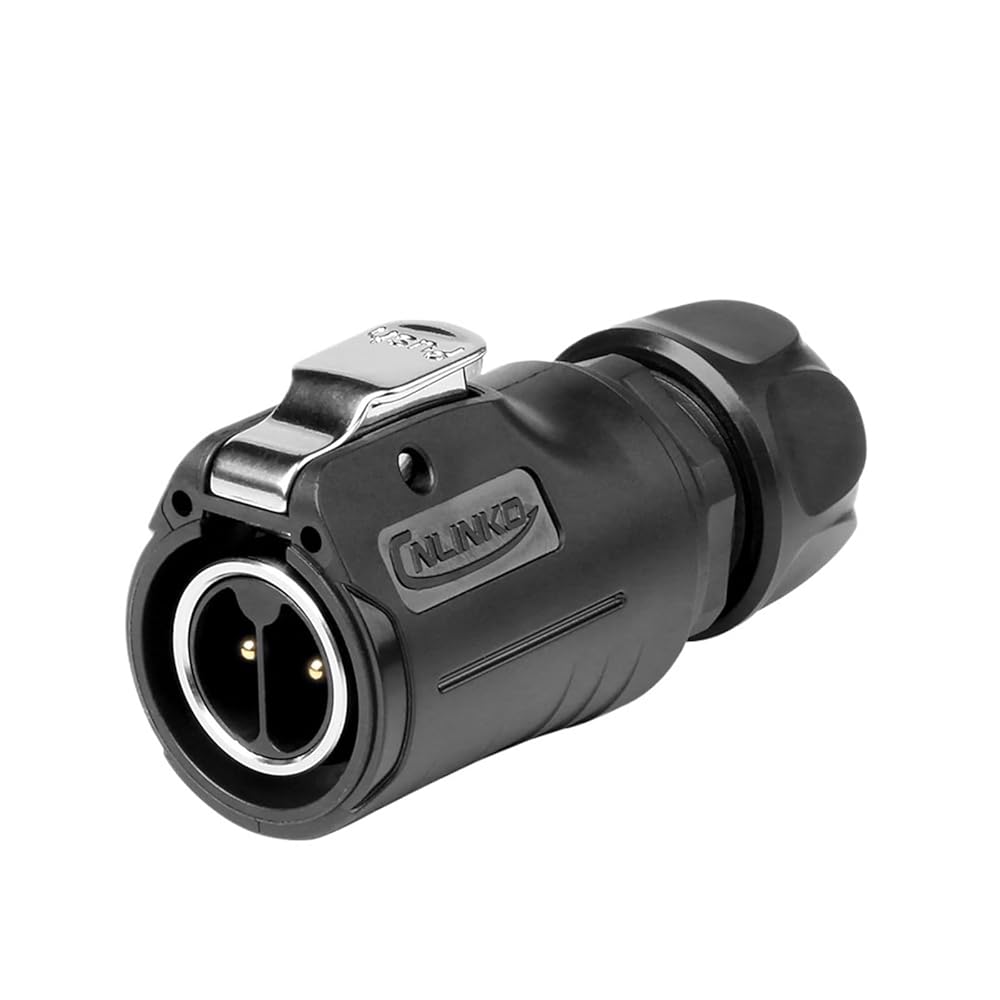

M20 Upgraded LP20 2 3 4 5 7 9 12 14 Pin Connector Circular Industrial Loose-proof IP68 Waterproof Connector
Features:
Loose-proof Design
The loose-proof design prevents accidental disconnection, maintaining stable connections in dynamic industrial settings.
Versatile Pin Options
With pin options ranging from 2 to 14, this connector offers flexibility for various applications and needs.
Material
Crafted with premium materials, the M20 connector ensures durability and longevity for industrial use.
IP68 Water-Resistant
Designed for harsh environments, the IP68 rating guarantees waterproof performance, ensuring reliable connectivity in wet conditions.
Customizable Voltage
Featuring customizable voltage, this connector adapts to your specific power requirements for optimal performance.
==========
Hign-concerned Chemical : None
Model Number : LP-20 Upgraded version
Wire Gauge : 14-12 AWG/18/16AWG/22-20AWG
Current Rating : 5A~20A
Operating Voltage(AC.V.rms) : 250V~500V
Withstandard Voltage(AC.V)1Min : 1500V~2000V
Temperature Rating : -25~+80
Assembly Style : Soldering
Shell & Insulated Parts : High Performance Engineer Plastic
Contact : Copper Alloy(gold plated)
Insulation resistance Min. : 500M
Life cycle Min. : 500 times
Diameter range(2/5/9/12pin) : O.D 5.0-6.5mm
Diameter range(3pin) : O.D 6.5-8.5mm
Diameter range(4/7/14pin) : O.D 10-12mm
Cable specification(2/3/4pin) : 2.5~4.0mm²/14-12AWG
Cable specification(5/7pin) : 1.0~1.5mm²/18-16AWG
Cable specification(9/12/14pin) : 0.34~0.5mm²/22-20AWG
Connector type : Panel connector/inline connector
