Connectors

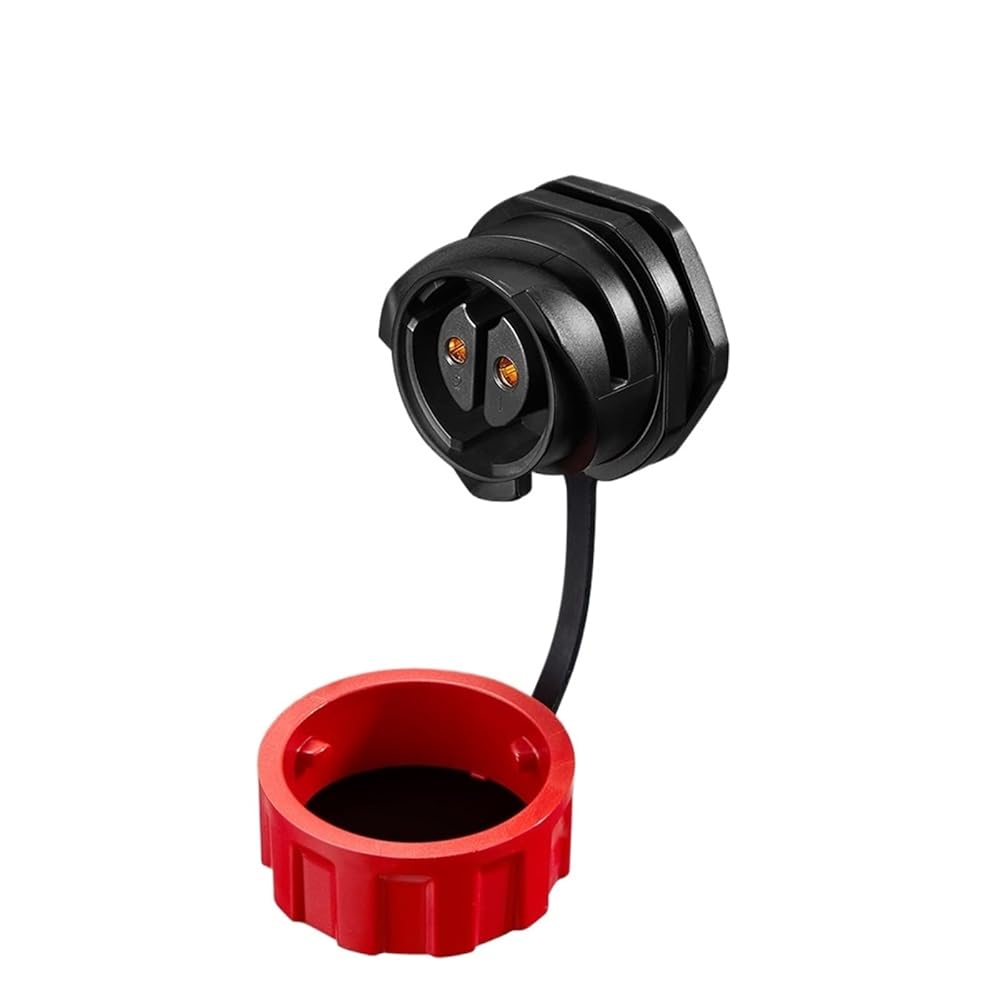

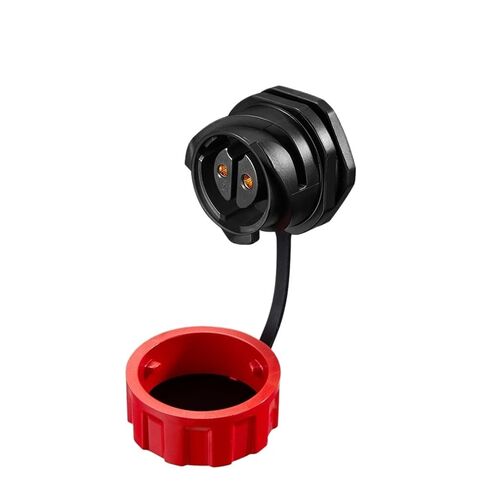

YM24 2 Pin 3 Pin IP68 Waterproof 500V Power Cable Connector Quick Lock Screw-in Electrical Wire Connector Solderless More Safety Creepage Distance
Features:
Waterproof Design
IP68 rated waterproofing, ideal for outdoor use where water exposure is a concern.
Efficient Connectivity
Quick screw-in connection eliminates the need for soldering, saving time and effort.
High Voltage Tolerance
Designed to withstand up to 500V, making it suitable for high-power applications.
Ample Current Capacity
With a maximum current of 25A, this connector can handle substantial power demands.
==========
Hign-concerned Chemical : None
Model Number : YM-24 Screw Locking connector
Insulation resistance(min.) : 500m omega
Contact resistance(max.) : 1m omega
Protection Class : IP68
Working temperature : -25 degrees Celsius~85 degrees Celsius
Life cycle(min.) : 500 times
Shell&insularted parts : PBT
Contact pin : Brass with gold-plated
Wire size : 2.5~4.0mm²/14~12AWG
Diameter range : O.D 10.5-13.2mm
Operating voltage : 500V AC
Current rated : 25A
Assembly style : Screw locking
Withstand voltage : 2000V
Pins : 2/3 Pin
