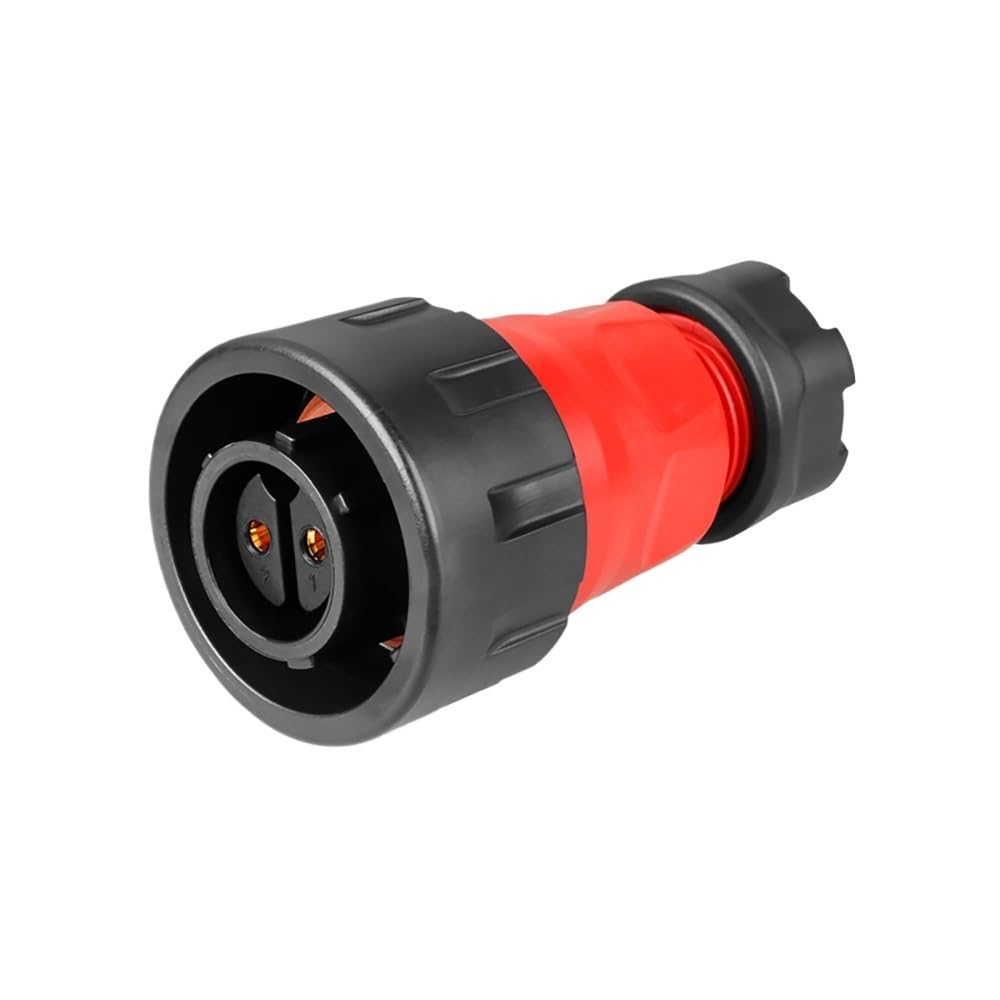

YM24 Waterproof IP68 Industrial Power Male Female
Socket Connector 2 3 4 10 12 19 24 Pin M24 Soldering Cable Connectors PBT Plastic
Features:
Waterproof Design
The YM24 connector boasts an IP68 waterproof rating, ensuring reliable performance in harsh environments.
Easy Installation
With its M24 size, this connector is easy to install, making it a convenient choice for DIY enthusiasts.
Versatile Pin Options
Available in 2/3/4/10/12/19/24 pin configurations, this connector caters to various automotive needs.
Soldering Pin Feature
Equipped with soldering pins, this connector offers a secure and connection for electrical wiring.
Suitable for Automotive Use
Designed specifically for automotive applications, including trucks, cars, and quad bikes.
==========
Hign-concerned Chemical : None
Model Number : YM-24 Gen2 rubber core
Color : Red
Approved : UL & TUV
Materials : PBT Plastic
Rated current : 5A~25A
Operating voltage : 250V~500V AC
Cable specification(2~4pin) : 2.5~4mm²/14~12AWG
Protection Level : IP68
Durability(Min.) : 500 Times
Flammability rating : UL94-V0
Pin : 2/3/4/10/12/19/24 Pin
Type : Connector
Application : Audio & Video,Lighting,Power
Assembly Wire : Soldering
Diameter range(2~4/24pin) : 10.5mm~13.2mm
Cable specification(10~12pin) : 1.0~1.5mm²/18~16AWG
Cable specification(19~24pin) : 0.34~0.5mm²/22~20AWG
Diameter range(10~19pin) : 7.0mm~10.5mm
