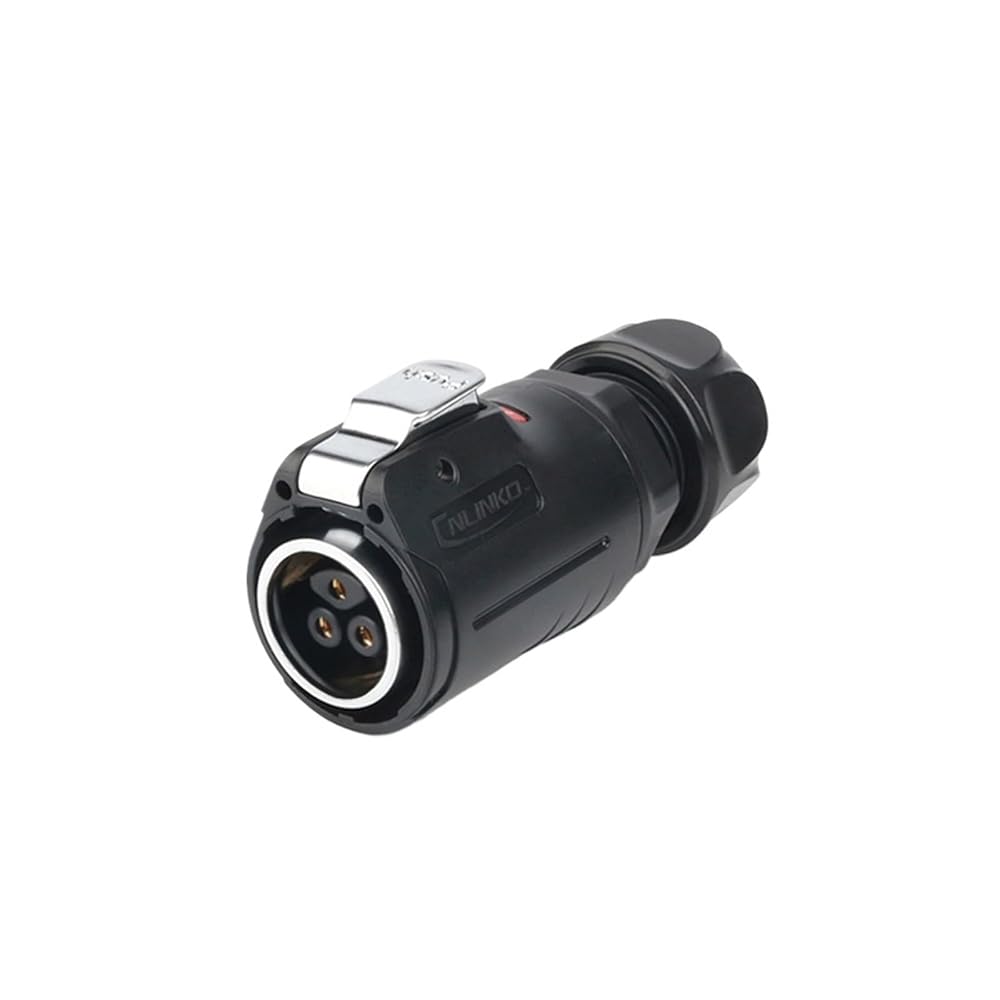

M24 35A Waterproof Electrical Wire Connector LP24 2 Pin 3 Pin Quick Release Butt Panel Mount Socket Welding Pin Connector
Feature:
2 or 3 Pin Configuration
The 2 or 3-pin configuration offers versatility and flexibility, accommodating different wiring needs and configurations.
Quick Release Feature
With its quick release butt design, this connector allows for easy and swift connection or disconnection, enhancing efficiency and convenience.
Panel Mount Socket
This panel mount socket welder pin connector provides a secure and stable connection, ideal for various electrical applications.
High Current Capacity
Capable of handling up to 35A current, this connector is perfect for heavy-duty electrical systems requiring high power transmission.
Waterproof Design
The M24 35A Waterproof Electrical Wire Connector ensures reliable performance in wet environments, thanks to its robust waterproof design.
==========
Hign-concerned Chemical : None
Model Number : LP-24 35A
Color : Black
Material : PBT
Type : Wire connector
Current rating : 35A
Certificate : UL/CUL/ISO9001/CE/ROHS
Operating voltage : 300V AC
Contact Resistance(Max.) : 1.0m
Life cycle(Min.) : 500 times
Temperature rating : -25~+85
Withstand voltage : 2000V AC
Wire size : 6.0~8.0mm²/10~8AWG
Cable O.D range : O.D10.5~14.0mm
Assembly style : Soldering
Protection level : IP68
Insulation resistance(Min.) : 500M
Contact diameter : O.D3.0*2/3
Hardware metal : Zinc Alloy
Sealing : Silicone / rubber
Temperature rise : 35A Per contact at 30K
