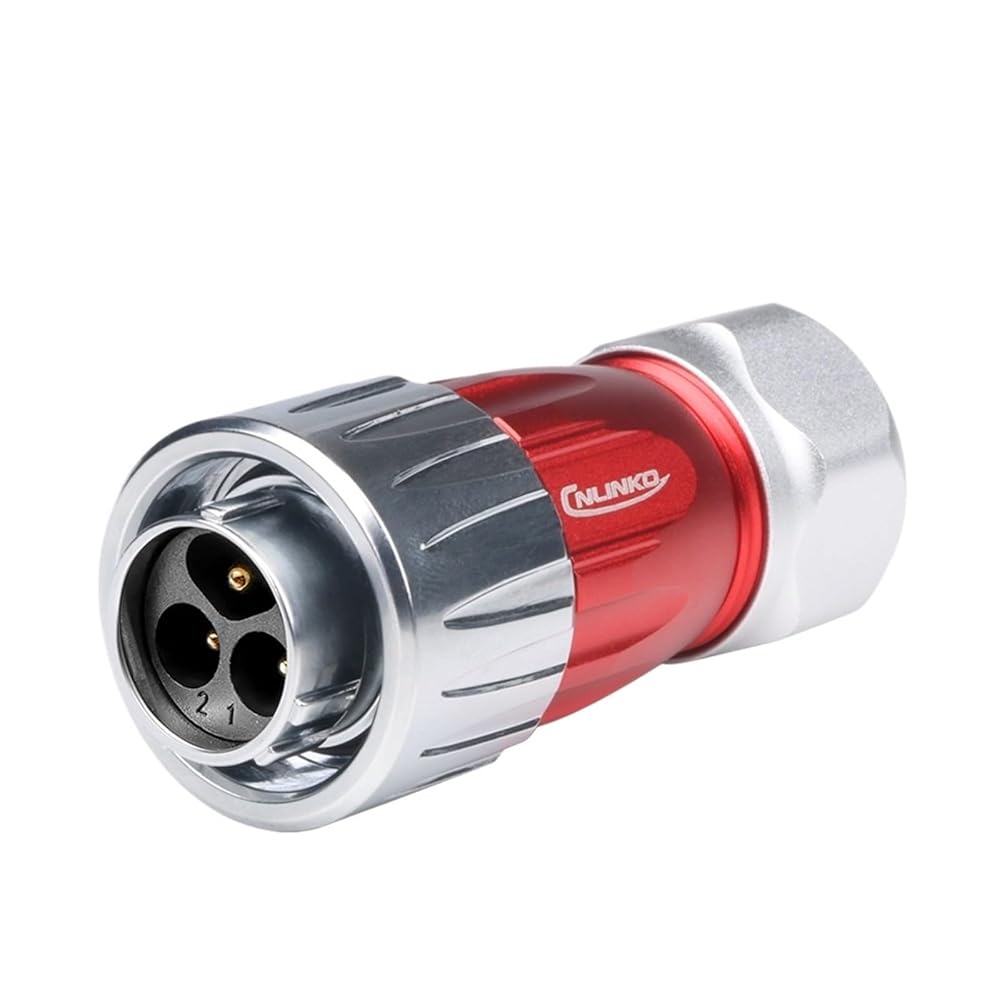

M20 Waterproof IP68 Connector Heavy Duty 2/3/4/5/7/9/12 Pin Metal Shell Wire Soldering Panel Mounting Power Connectors
DH-20 series electrical connectors IP68
1. Three positioning, as wave spring knob, the outer ring card point locking snap engaged with the socket, making the connection operation for the and socket be more simple and convenient, uniform intensity engaging, and keeping the current and signal transmission more stable.
2. Using wave spring structure, so that elastic wave spring stranded automatically when connect the and socket.
3. Copper needle retainer , so that copper welding operations and install socket were separated, thus solve up limited operating environments from install to then welding.
4. Using outer alloy ring, keeping the and socket more stable in the closed state, making the power supply or signal transmission more stable and comparable while connection.
5. Using tail jaws design, to tighten the wire more effective, twisted more effective too, improving the product waterproof rating and tensile strength requirements, and prevent the nut back effectively.
6. Waterproof clip coil , so that the products have better waterproof rating when closed.
7. Waterproof IP68 while connection.
==========
Hign-concerned Chemical : None
Model Number : DH-20
Color : Red and silver
Working Voltage : 250V~300V
Rated current : 5A~20A
Pins : 2/3/4/5/7/9/12 Pin
Wire assembly : Soldering
Copper needle : Gold plated
Housing : Zinc alloy
Plastic part : PBT plastic
Cable specification(2~4pin) : 2.5~4.0mm²/14~12AWG
Cable specification(5~7pin) : 1.0~1.5mm²/ 18~16AWG
Cable specification(9~12pin) : 0.34~0.5mm²/22~20AWG
Diameter range(2~9pin) : 10.0~12mm
Diameter range(12pin) : 5.0~6.5mm
Connector type : Panel connector
