Needle-Bearing

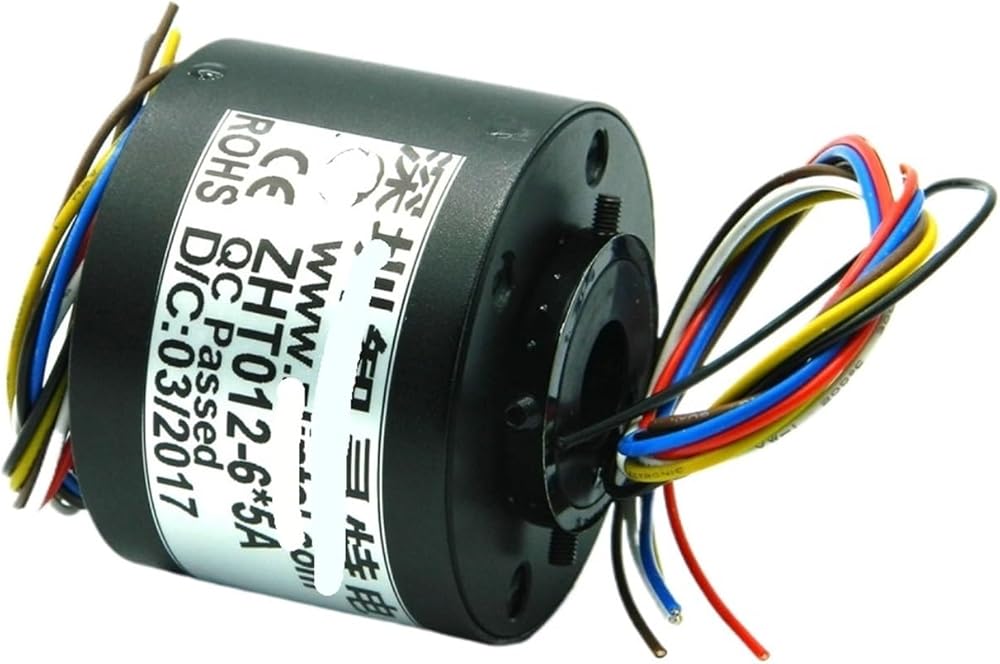

Model: ZHT012-6R5A
Custom processing: Yes
Part Number: ZHT012-6R5A
Shell material: Stainless steel

model
ZHT012-6R5A
Number of channels
6
Rated current
5 A/channel, higher current can be customized
Rated voltage
240VAC/DC
Speed
0-250rpm (higher speed can be customized)
Outside diameter
ø12mm
Contact material
Precious Metals
Shell material
Aluminum Alloy
Dynamic resistance
Minimum 1mΩ
noise
Wire Specifications
AWG16 Silver-plated
Compressive strength
500VDC@50Hz,10s
Wire length
Standard 250 mm
Dielectric strength
500mΩ@500VDC,10s
Protection level
IP54
Operating temperature
-20℃ ~+60℃ (recommended)
Operating humidity
10%-85% RH
Shockproof level
MIL-STD-810E
