Needle-Bearing
model

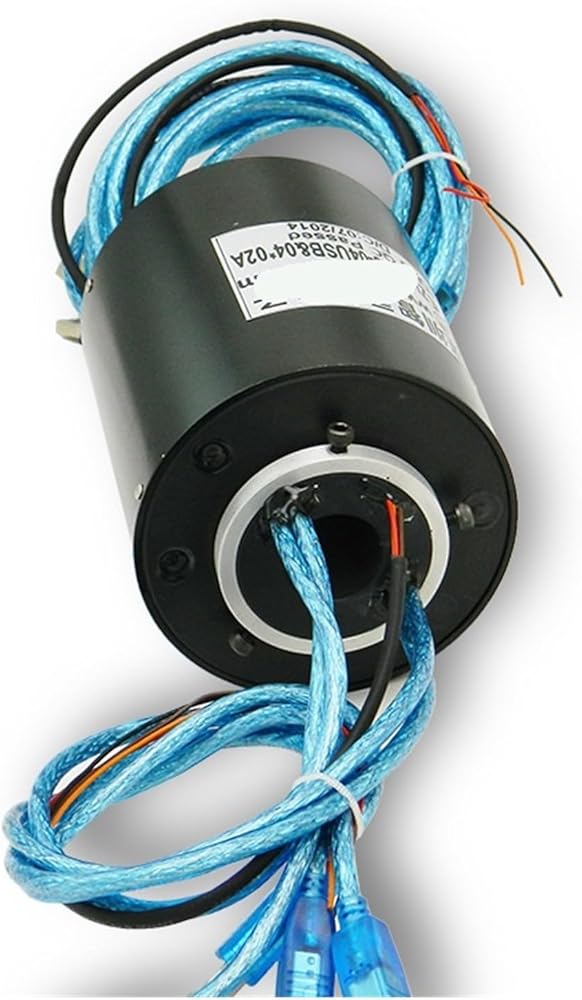

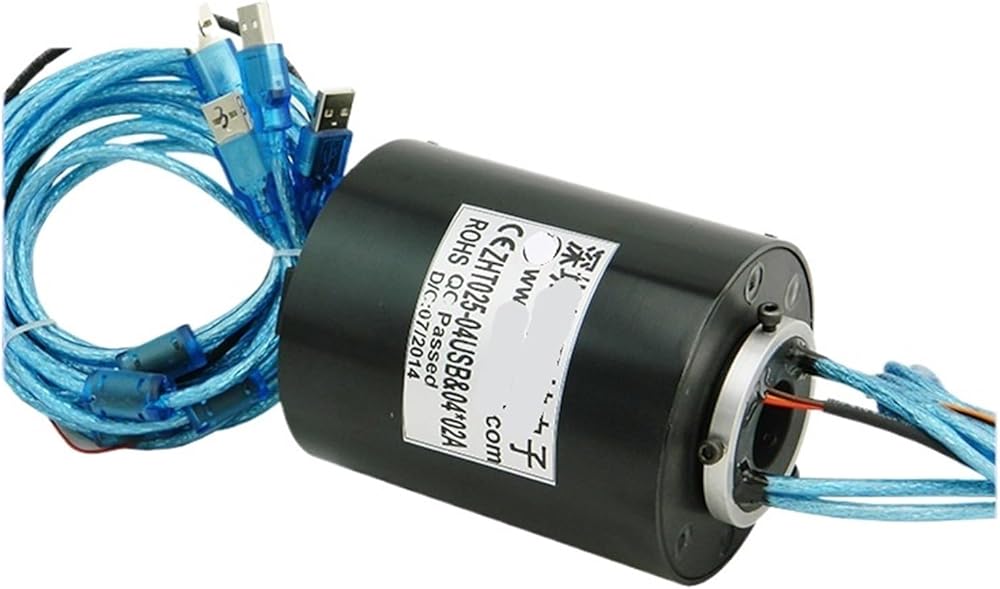

ZHT025-04USB&06*2A
Number of channels
6
Rated current
2 A/channel, higher current can be customized
Rated voltage
240VAC/DC
Speed
0-200rpm
Outside diameter
ø25mm
Contact material
Precious metal
Shell material
Aluminum Alloy
Dynamic resistance
Minimum 1mΩ
noise
Wire Specifications
AWG16 Silver-plated
Compressive strength
500VDC@50Hz,10s
Wire length
Standard 250 mm
Dielectric strength
500mΩ@600VDC,10s
Protection level
IP54
Operating temperature
-20℃ ~+60℃
Operating humidity
10%-85% RH
Shockproof level
MIL-STD-810E
