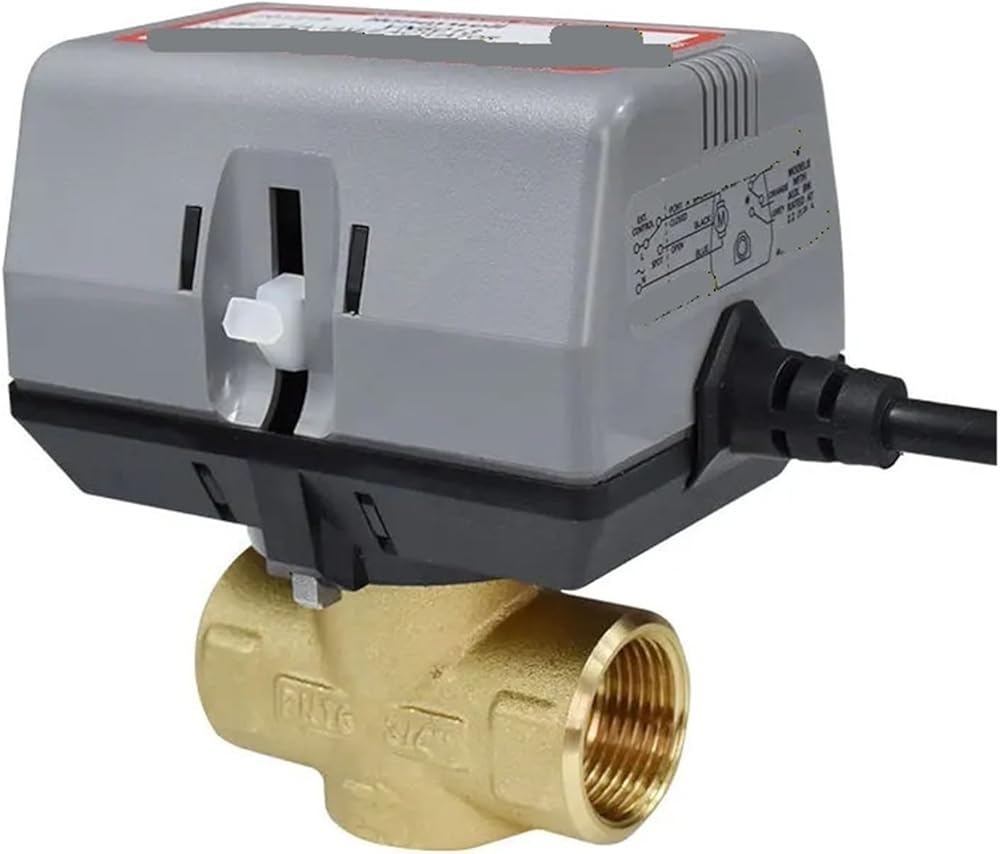

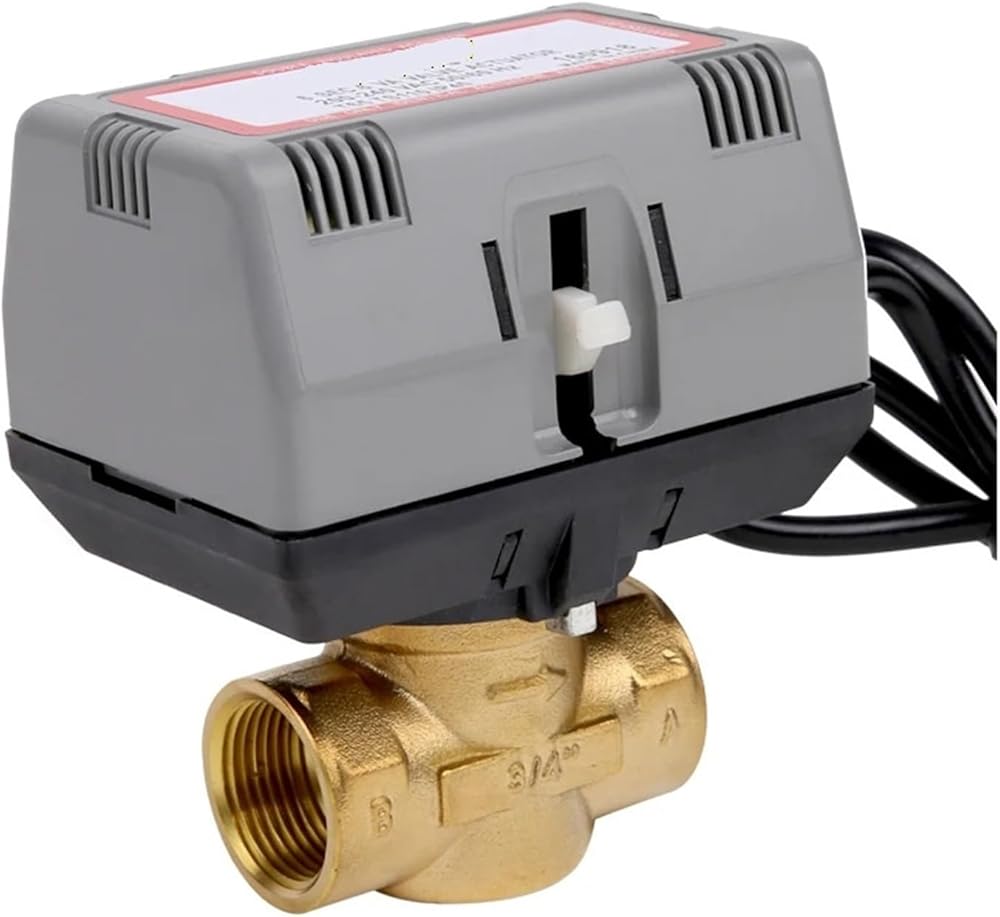

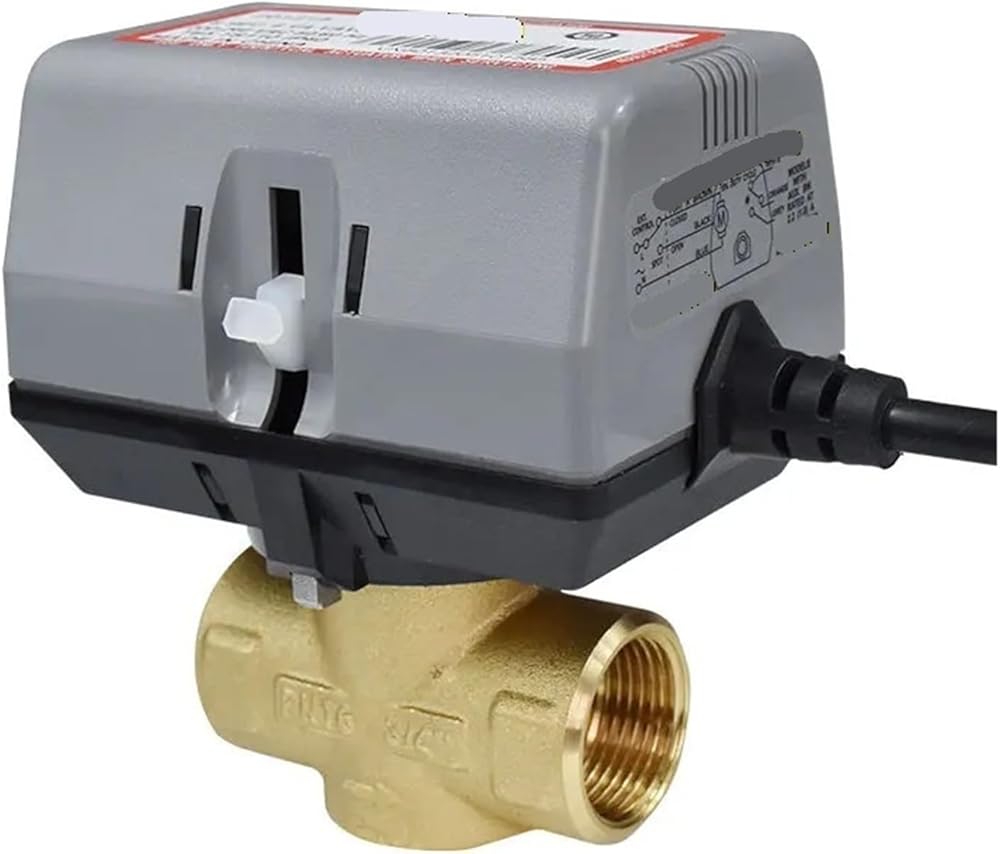

On/off hydronic valves are intended for use in a normal indoor environment to control the flow of hot and/or cold water, or glycol solution up to 50% concentration. They consist of an actuator, valve and replaceable valve cartridge assembly. These valve are designed for on-off" zone" control of board radiator orconvector applications. Depending on the model selected they can be controlled by either a low or line voltage SPST or SPDT controller, sush as a room thermostat, aquastat of flowswitch.Recommended thermostats include T6818, T6800, T6820 and T6861 families.
Specification:
200-240V 50-60Hz Model
Colour coded label: Red
Power consumption:
6 Watts Max. at nominal Voltage(during valve position change). Provide 6 VA for transformer and connection wire sizing.

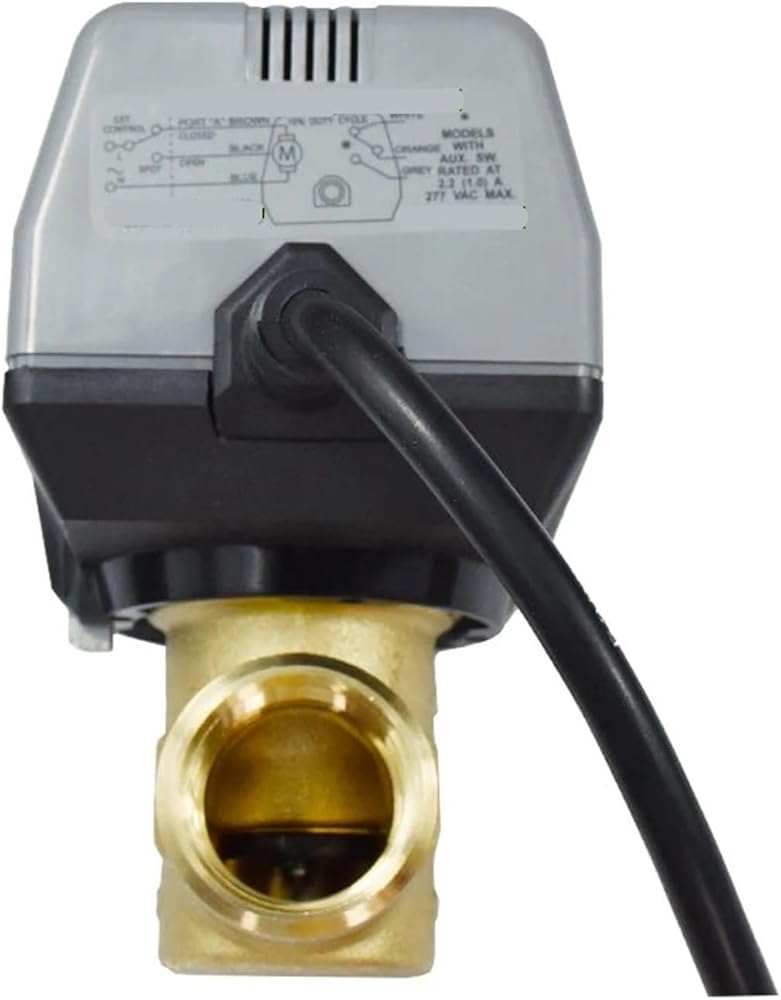

End switch rating:
1.0A inductive above 200 to 240Vac
Nominal timing
Valve opens in 6 seconds@60Hz(20% longer@50Hz)
Electrical termination: With integral 1 meter [nominal 39''] leadwire cable
Atmosphere: non-corrosive, non-explosive
Min.&max fluid temperature 1 to 95 (Short duration peak:120
Operating pressure differential: Max. 3.5 Bar[50psi]
Pressure rating:16 Bar
Installation Description:
1. The electric valve must be installed at a sufficient maintenance distance from the surrounding objects and within reach of maintenance personnel. There shall be no electrical equipment under the valve body to avoid the danger of valve leakage. The driver must be above the level of the valve body (As shown below);
2. Before installation, the pipe must be clean and of debris, and a 50 micron or finer filter should be installed at the front end of the electric valve;
3. Never apply force to the drive during installation, otherwise it will damage the drive; When the valve body is removed and installed, it must not apply force to the spring valve stem part that protrudes from the valve cover, otherwise the valve stem will be deformed and lead to water leakage. Do not wrap the drive in insulation.

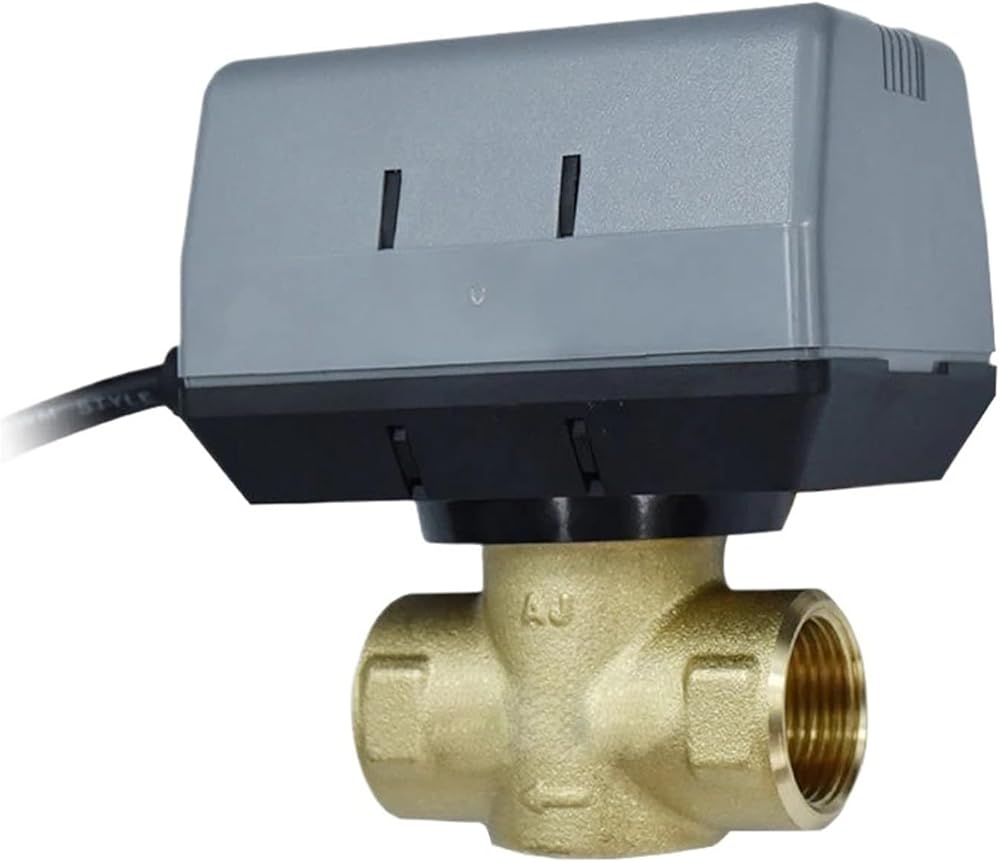

Structure : Ball
Port Size : 1/2'' 3/4'' 1''
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Standard or Nonstandard : Standard
Model Number : VC6013AJ1000T
Power Source : AC
Is Smart Device : No
Origin : Mainland China
Drive voltage : 220VAC
Power consumption : 5VA
Valve body pressure : 1.6MPa
Allowable pressure difference : 1.0MPa
Medium : cold water, hot water
Opening and closing time : 16S
Applicable medium temperature : 1~95
Applicable ambient temperature : 0~65
Connection mode : G Thread
