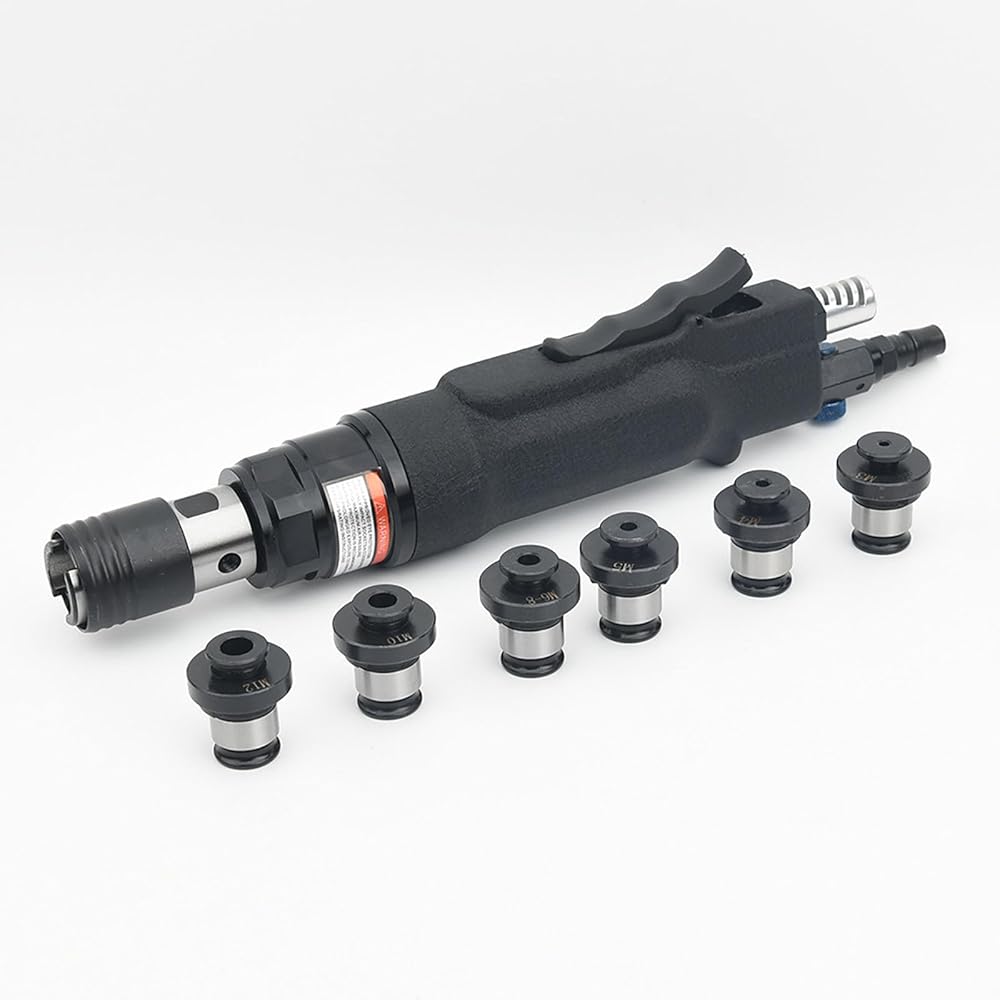

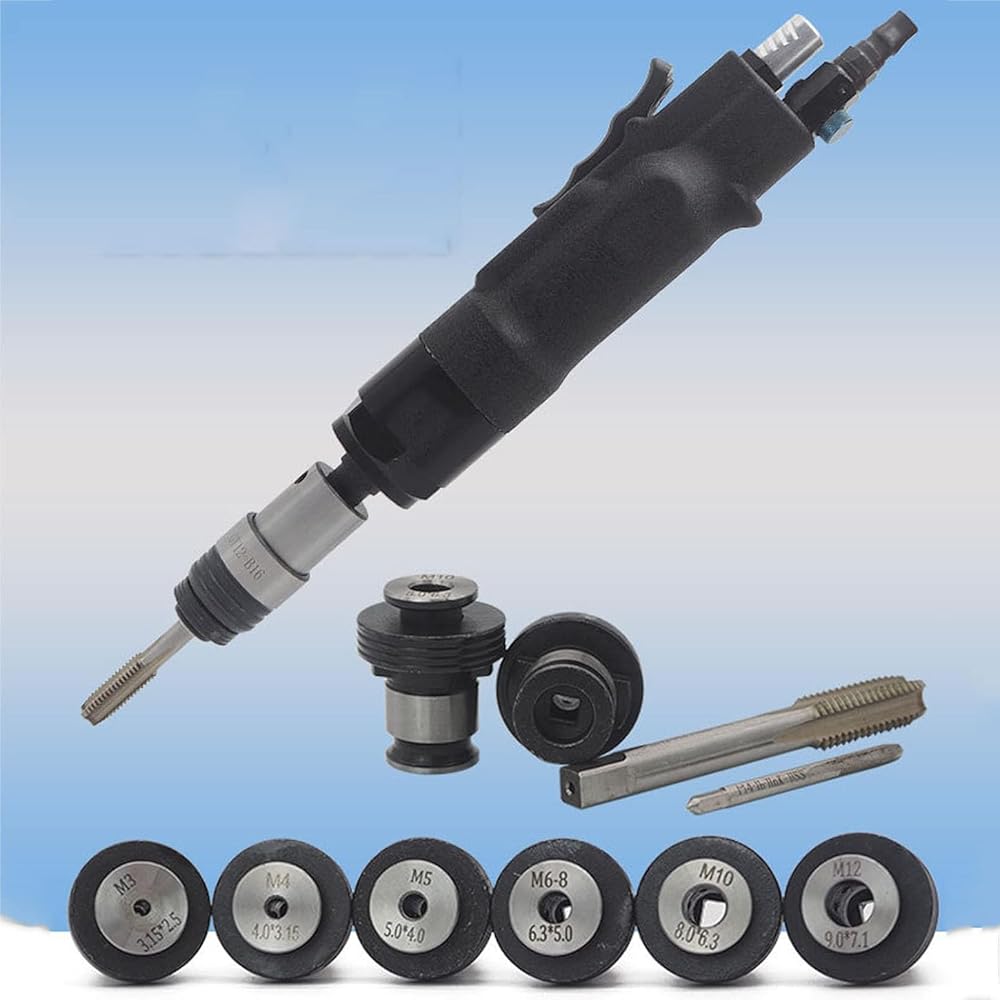

The DBXMJWCMDT handheld pneumatic tapping machine is engineered for precision and efficiency, making it ideal for threading applications with tap sizes ranging from M3 to M12.

Product Specifications:
- Name: Pneumatic Tapping Machine
- Power Source: Air-powered
- Applicable Tap Range: M3–M12

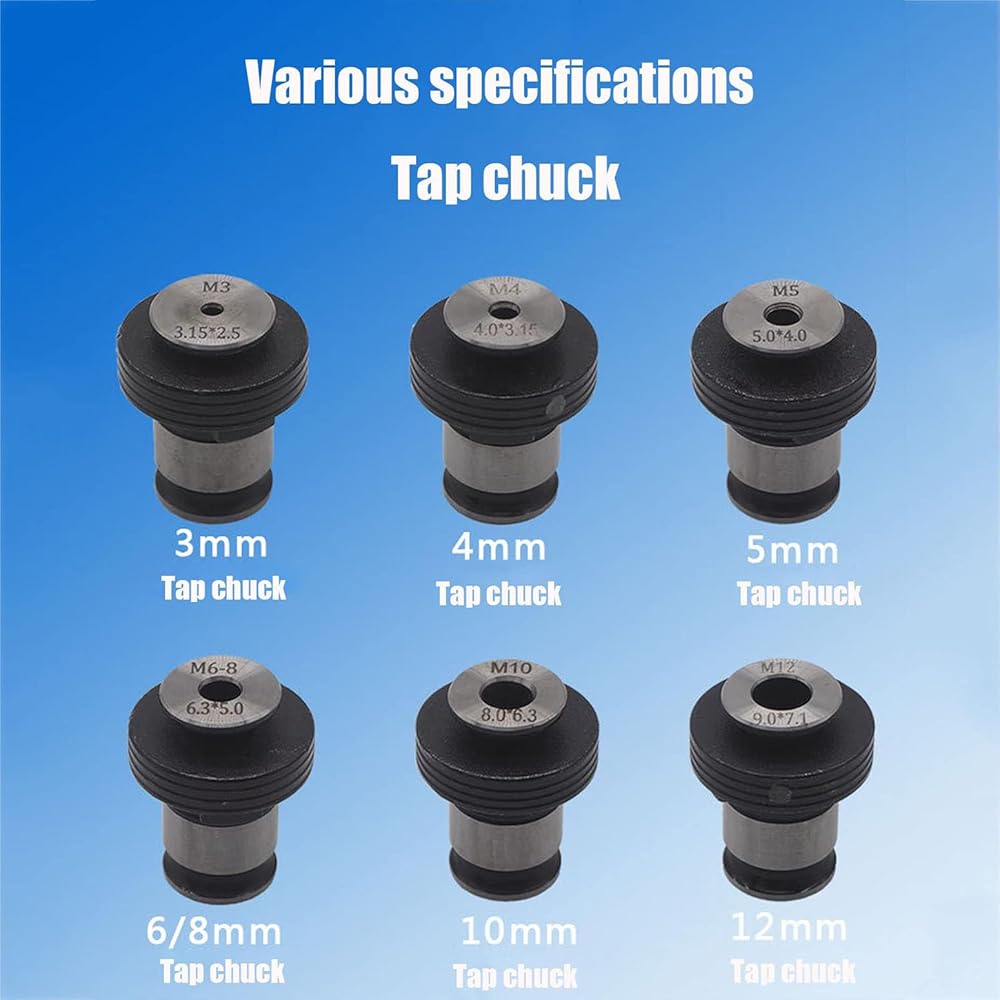

- Collet Sizes: 3mm, 4mm, 5mm, 6/8mm, 10mm, 12mm
- No-load Speed: 700–2000 rpm
- Air Consumption: 0.37 m³/min
- Air Pressure: 5–7 MPA
- Air Inlet: 1/4 LN
- Drill Capacity: Max 12mm
- Air Tube Size: 8mm
- Working Pressure: 5–7 MPA
- Product Size: 350mm
- Net Weight: Portable handheld design
- Applicable Scenes: Metalworking, machinery threading, industrial manufacturing, workshop, home DIY

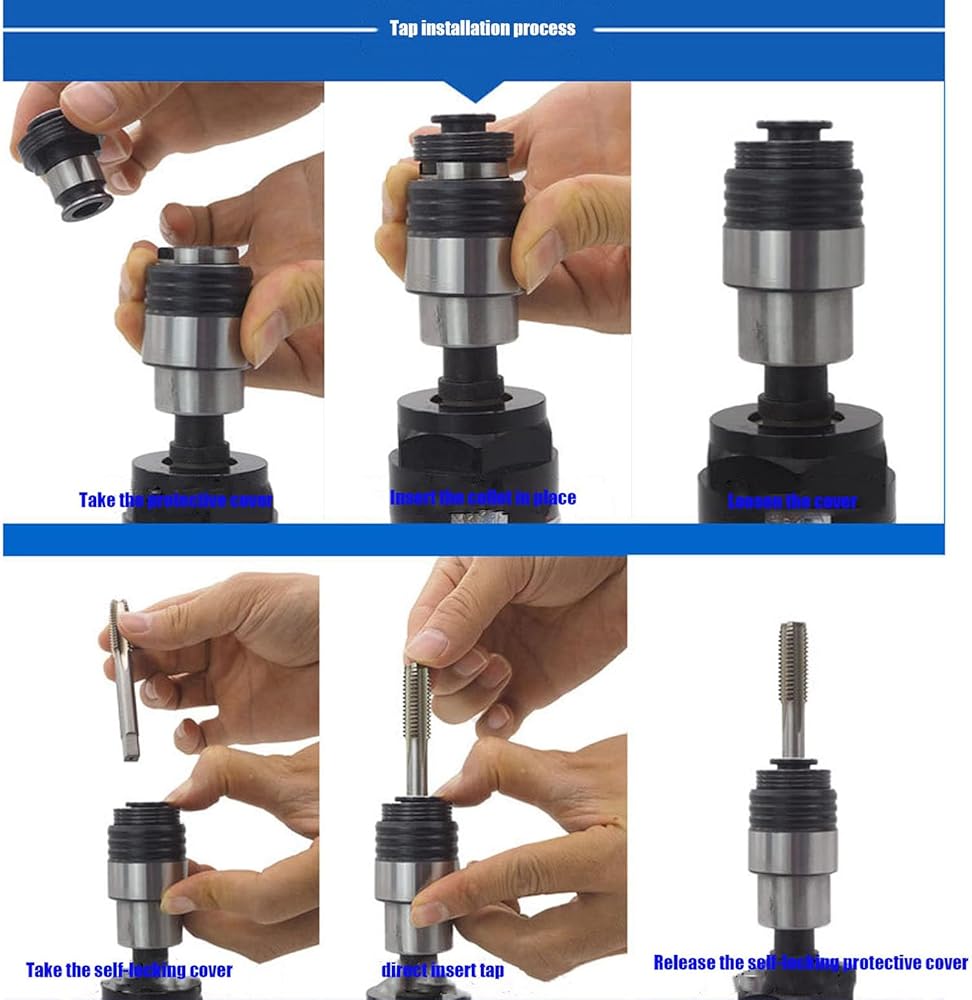

Usage Method: Connect the machine to an air compressor with a minimum output of 1.5kW, secure the tap into the collet, align it with the workpiece, and press the trigger to initiate tapping. Release the trigger to stop the operation.

Package Includes: 1 x Pneumatic Tapping Machine, 1 x Set of Tap Collets
