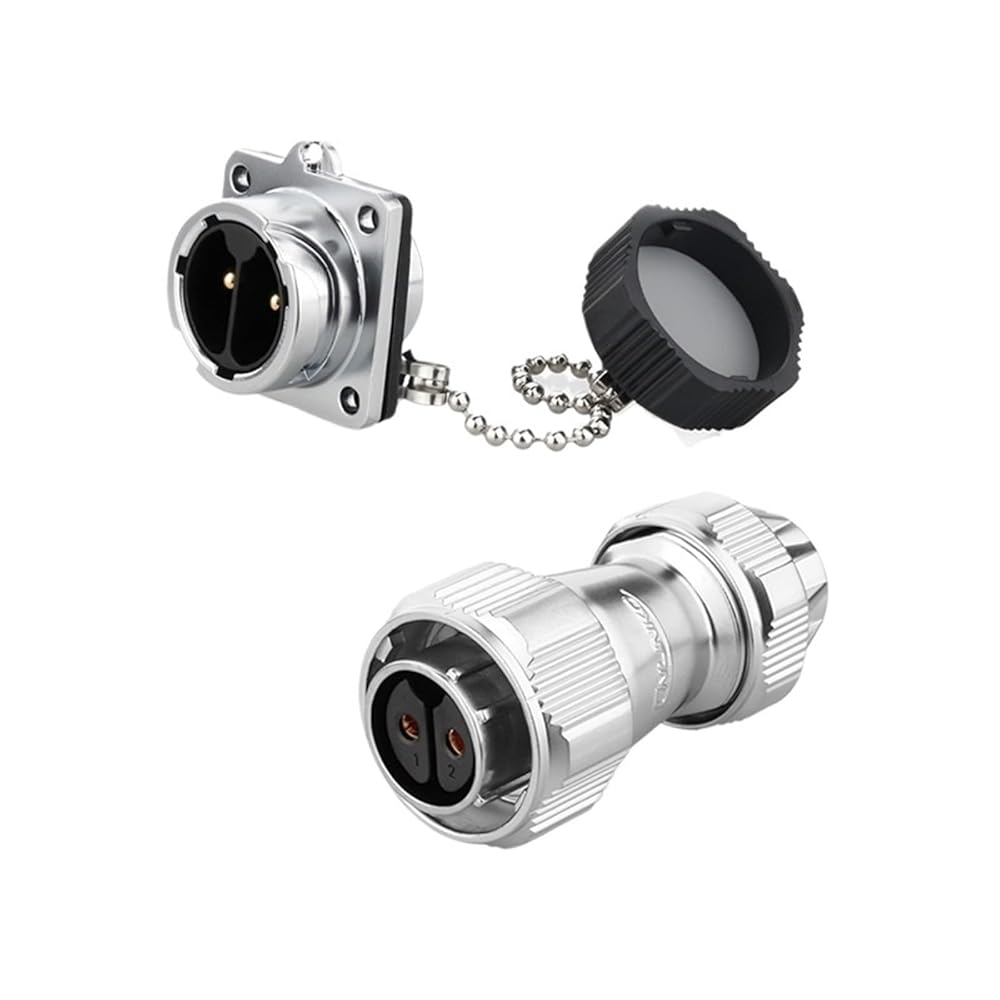

M20 Metal Waterproof IP68 Power Signal YZ-20 2 3 4 5 7 9 12 Pin Wire Cable Circular Socket Panel Connector
Features:
Versatile Pin Configuration
Available in 2 to 12 pin configurations, this connector offers flexibility for different wiring needs.
Signal and Power Compatibility
This connector supports both power and signal transmission, making it a versatile choice for various applications.
Material
Crafted from metal, the M20 connector ensures longevity and reliability in various environments.
Waterproof Design
With an IP68 rating, this connector is fully waterproof, making it ideal for use in wet or harsh conditions.
Easy Installation
The plug-and-play design of this connector makes installation quick and hassle-free.
==========
Hign-concerned Chemical : None
Model Number : YZ-20
Voltage :
Origin : Mainland
Certification : ,UL,weee
Wire size(2~4pin) : 2.5~4.0mm²/14~12AWG
Wire size(5~7pin) : 1.0~1.5mm²/ 18~16AWG
Wire size(9~12pin) : 0.34~0.5mm²/22~20AWG
Current rated(2~4pin) : 20A
Current rated(5~7pin) : 10A
Current rated(9~12pin) : 5A
Operating voltage(2~7pin) : 300V AC
Operating voltage(9~12pin) : 250V AC
Withstand voltage(2~4pin) : 2000V AC
Withstand voltage(5~12pin) : 1500V AC
Contact resistance(2~4pin) : 1.0m
Contact resistance(5~7pin) : 3.0m
Contact resistance(9~12pin) : 5.0m
Insulation resistance(Min.) : 500M
Life cycle(Min.) : 500 times
Cable O.D range(2~7pin) : 8.0~10.5mm
Cable O.D range(9~12pin) : 5.0~6.5mm
Assembly style : Soldering
Protection level : IP68
Temperature rating : -40~+85
Shell&insulated parts : PBT
Hardware metal : Zinc Alloy
Contact size : Brass with gold-plated
Sealing : Silicone / rubber
