Connectors
Waterproof Socket|Male Female Connector|IP67 Waterproof Rating:Boasts an IP67 waterproof rating, ensuring reliable performance in wet environments.
Bayonet Connection:Features a secure bayonet connection for quick and easy plug-in, reducing downtime.
Panel Mounted Design:Designed for panel mounting, this connector offers a two-hole setup for front mounting flexibility.
Soldering Wiring Secure Connection:Soldering wiring ensures a solid, long-lasting connection for your devices.
Automic Flip Cover:Equipped with an automatic flip cover for dust protection, enhancing durability.

وصف

Connectors

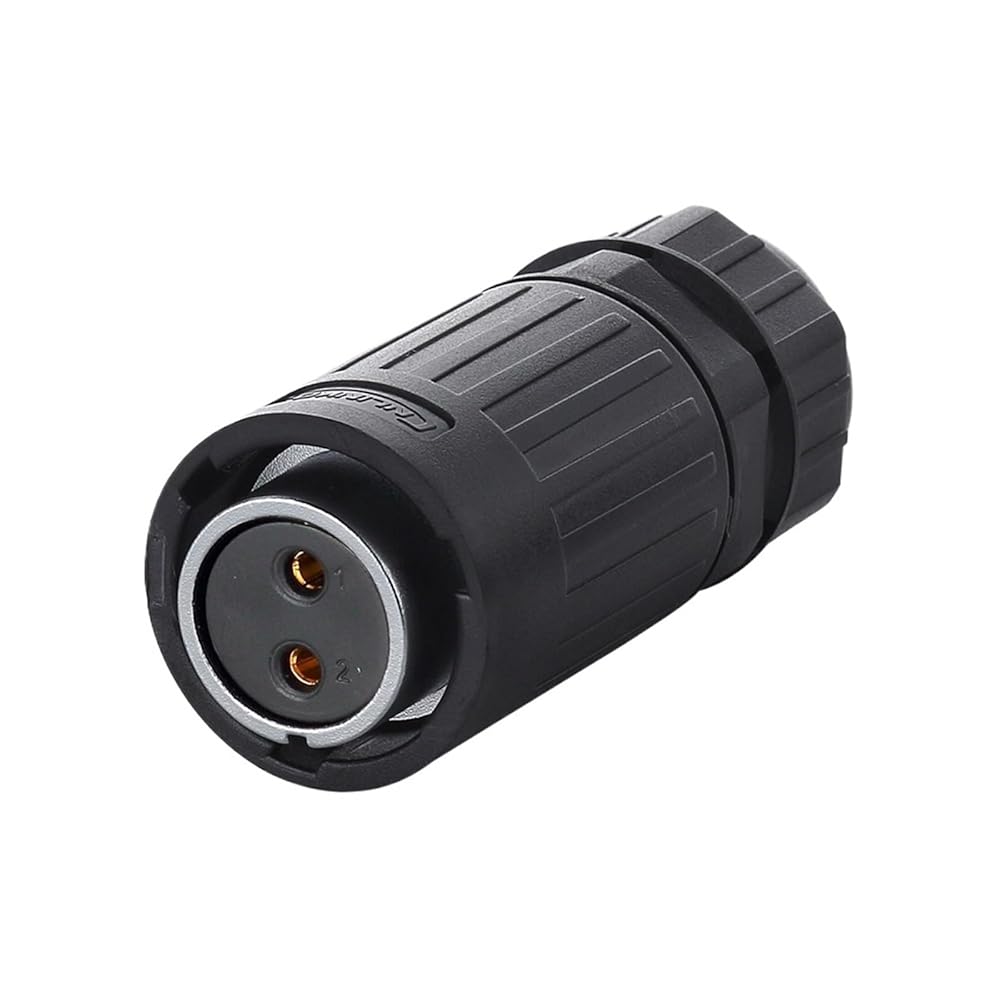

YA20 IP67 Waterproof M20 Socket Male Female Connector Panel Mounted 2/3/4/5/7/9/12/14 Pin Bayonet Connection
Features:
1.Protection level up to IP67 when connected
2.Soldering wiring secure connection
3.Fast and secure with snap-on locking
4.Two-hole mounted,can be used for front mounting
5.Automic flip cover dust protection cover
==========
Hign-concerned Chemical : None
Model Number : YA-20
Pins : 2/3/4/5/7/9/12/14 Pin
Color : Black
Approved : UL & TUV
Materials : PBT Plastic
Rated current : 5A~20A
Operating voltage : 250V~500V
Cable Specification(2~4pin) : 2.5~4.0mm²/14~12AWG
Protection level : IP67
Durability(min.) : 500times
Flammability rating : UL94-V0
Cable assembly : Soldering
Cable Specification(5~7pin) : 1.0~1.5mm²/ 18~16AWG
Cable Specification(9~12) : 0.34~0.5mm²/22~20AWG
Diameter range(2~7pin) : 10.0-12.0mm
Diameter range(9~12pin) : 5.0-6.5mm
