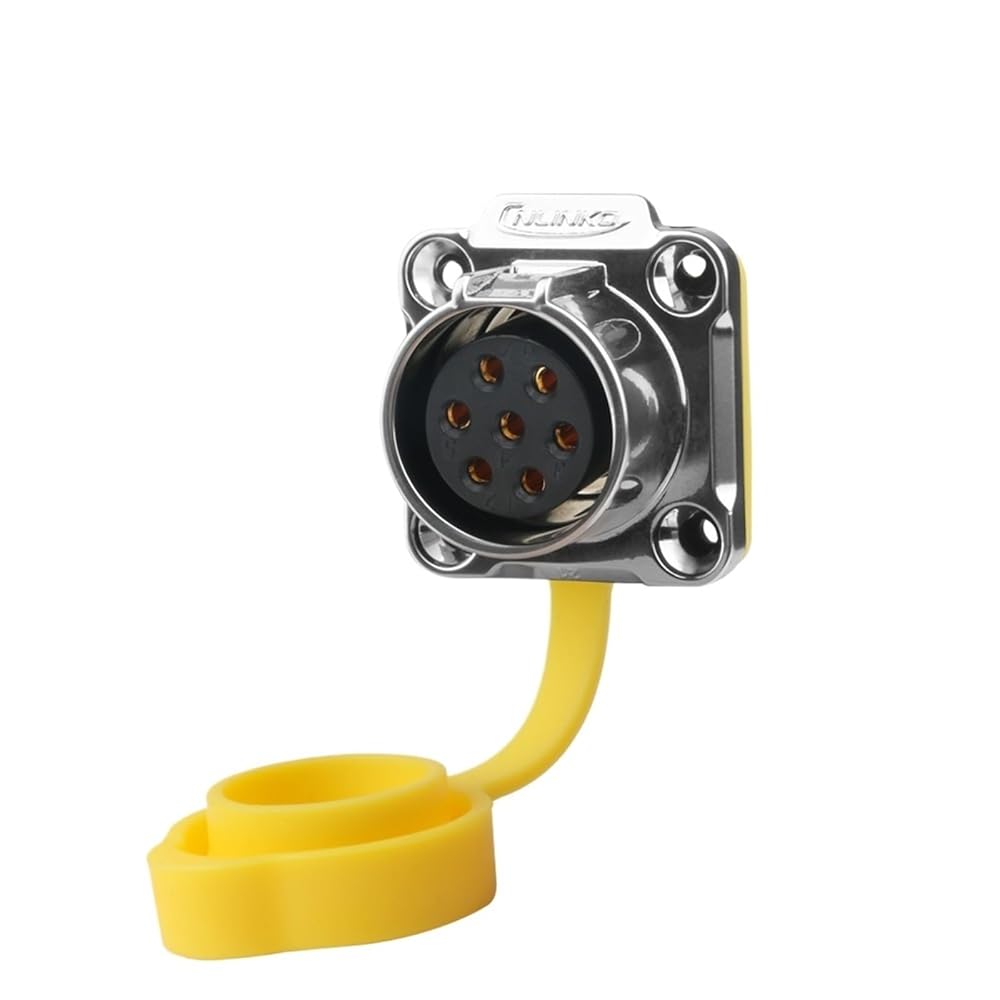

IP68 M20 Outdoor Waterproof Connector 5/7/9/12 Pin Soldering Terminal Electrical Wire Cable Connector Seamless Sealed Socket
Features:
1.With multi-core design to fit with different industrial needs
2.Alloy metal socket is with fully electromagnetic and radio frequency interference protection
3.With gold-palted contact,stronger corrosion resistance and conductivity
4.PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
5.5/7/9/12 pin for signal connector,power and signal can be compatible match
6.IP67/IP68 when mated
7.Current rating:5A/10A
==========
Hign-concerned Chemical : None
Model Number : LP20
Cable Specification(5-7pin) : 1.0~1.5mm²/ 18-16AWG
Diameter Range(5~7pin) : 10.0-12mm
Rated Current : 5A~10A
Operating Voltage(AC.V.rms)1 Minute : 250V-500V AC
Contact Resistance(Max.) : 3~5m Omega
Insulation Resistance(Min.) : 500M Omega
Protection Level : IP68
Working Temperature : -25~+85 Degree Centigrede
Connecting Mode : Screw Connector
Cable assembly : Soldering
Cable Specification(9-12pin) : 0.34~0.5mm²/22-20AWG
Feature : Seamless sealed socket
Diameter Range(9~12pin) : 5.0-6.5mm
Color : Black/Yellow
