Ammeters
Attention:

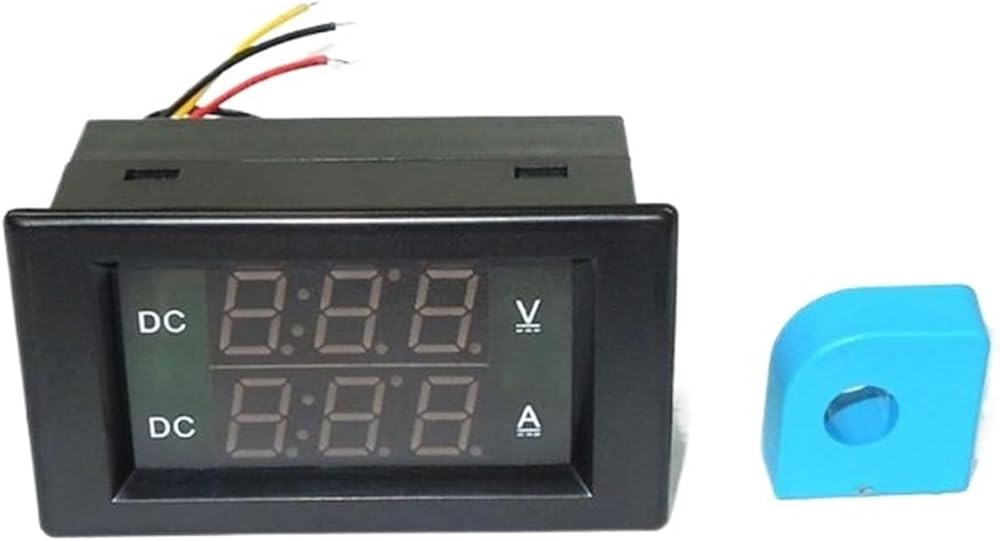

1.Include a current transformer
2.Please try not to install the meter and current transformer around the high temperature strong magnetic field
and large transformer otherwise the accuracy will be affected.
3.In order to obtain a higher precision measurement it is recommended to "preheat for 5 minutes" before
adjusting the calibration.
4.Sincethe 24V battery charge full of floating voltage may be over 30V so "no" recommended direct use it.
5.When you select range not the larger the better. the larger the range the larger the error it is recommended
thatit is 1.5 or 2 times as large as the actual test value.
6.This meter and CT have been calibrated by the "one to one". Please don't mix it up when you use it in the later
period. If mixed you need to recalibrate it.
Technical Parameters:
Supply voltage:DC4-30V(Note:The maximum input voltage can not exceed 30V or be burnt.)

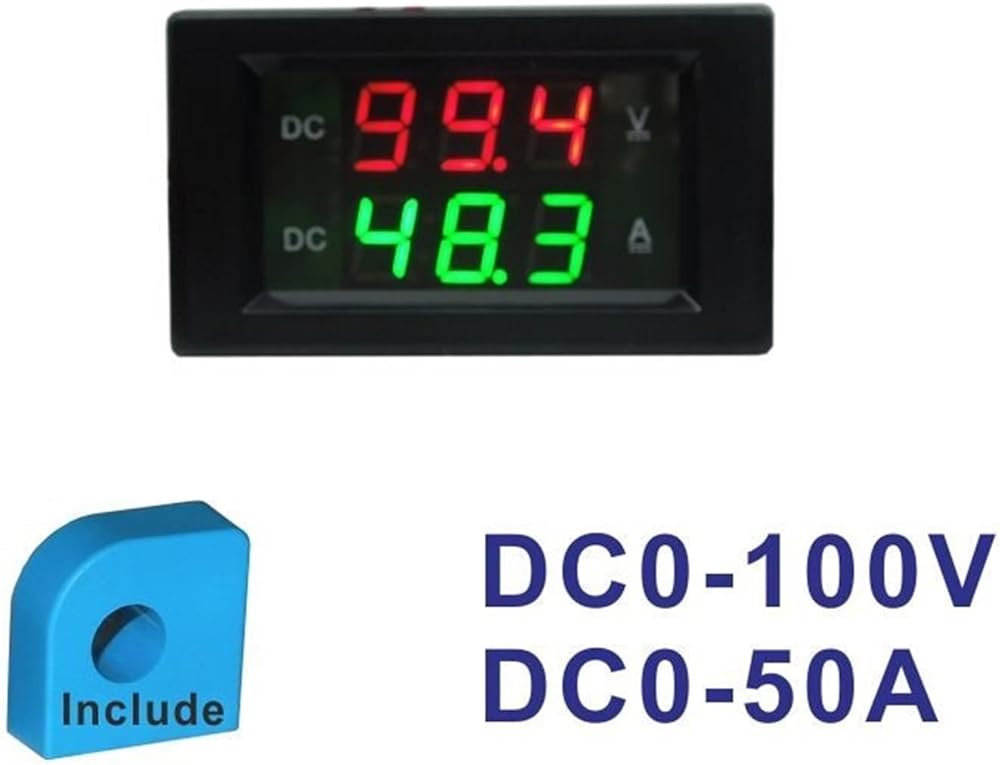

Test voltage:DC0-100V
Test current:DC0-50A

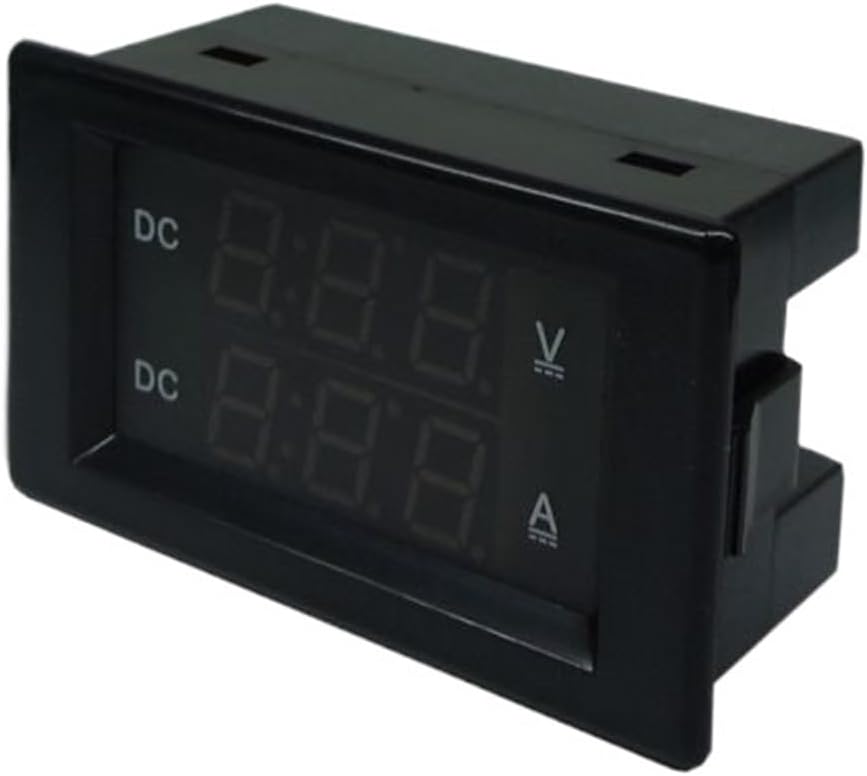

Display type:0.39'' LED with red and greenfonts
Measurement rate: 500mS / time
Measurement accuracy:1% (± 2 digits)
CT wire length:150mm
Terminal wire length:150mm

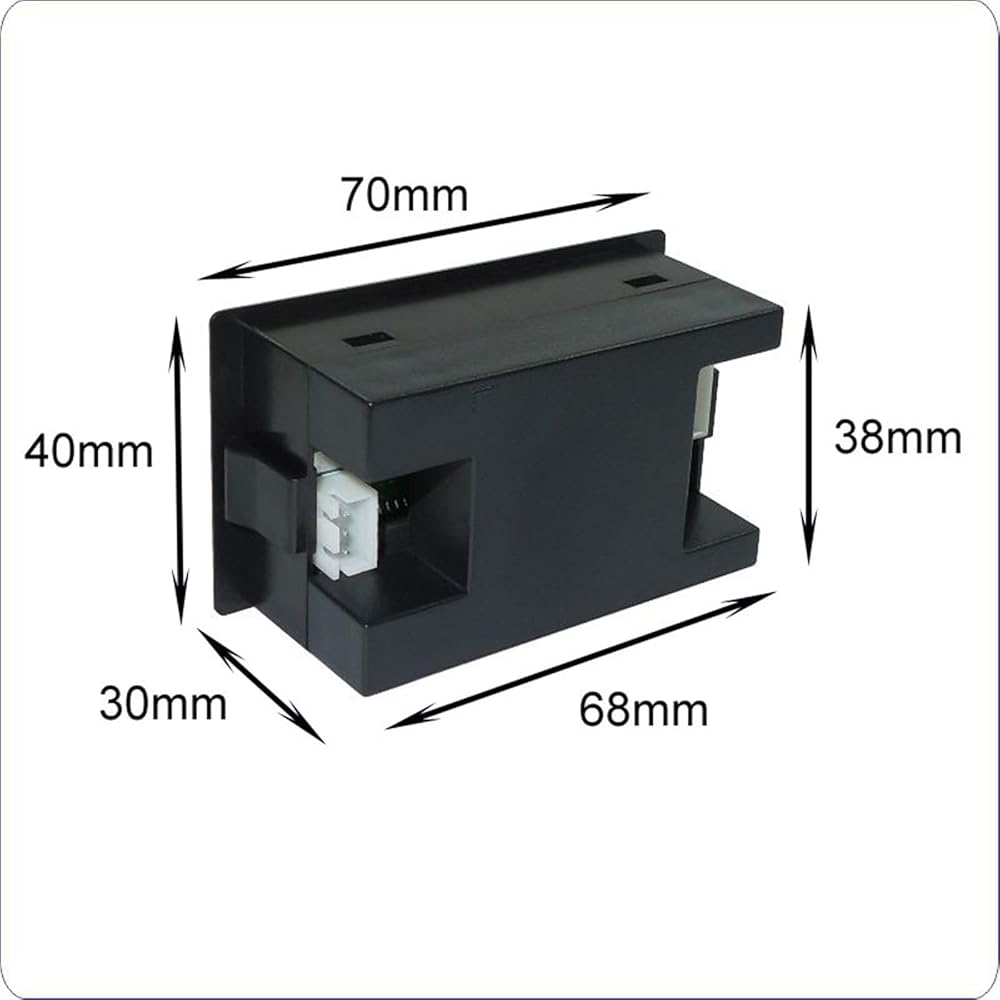

Dimension:70*40*30mm
Mounting hole:68*38mm
.Features:
1.The wide power supply range with reverse polarity protection.
2.Display voltage and current on thescreen at the same time.
4.With a voltage calibration potentiometer current calibration potentiometer you can calibrate by yourself.
The tolarance is absolutely exit.

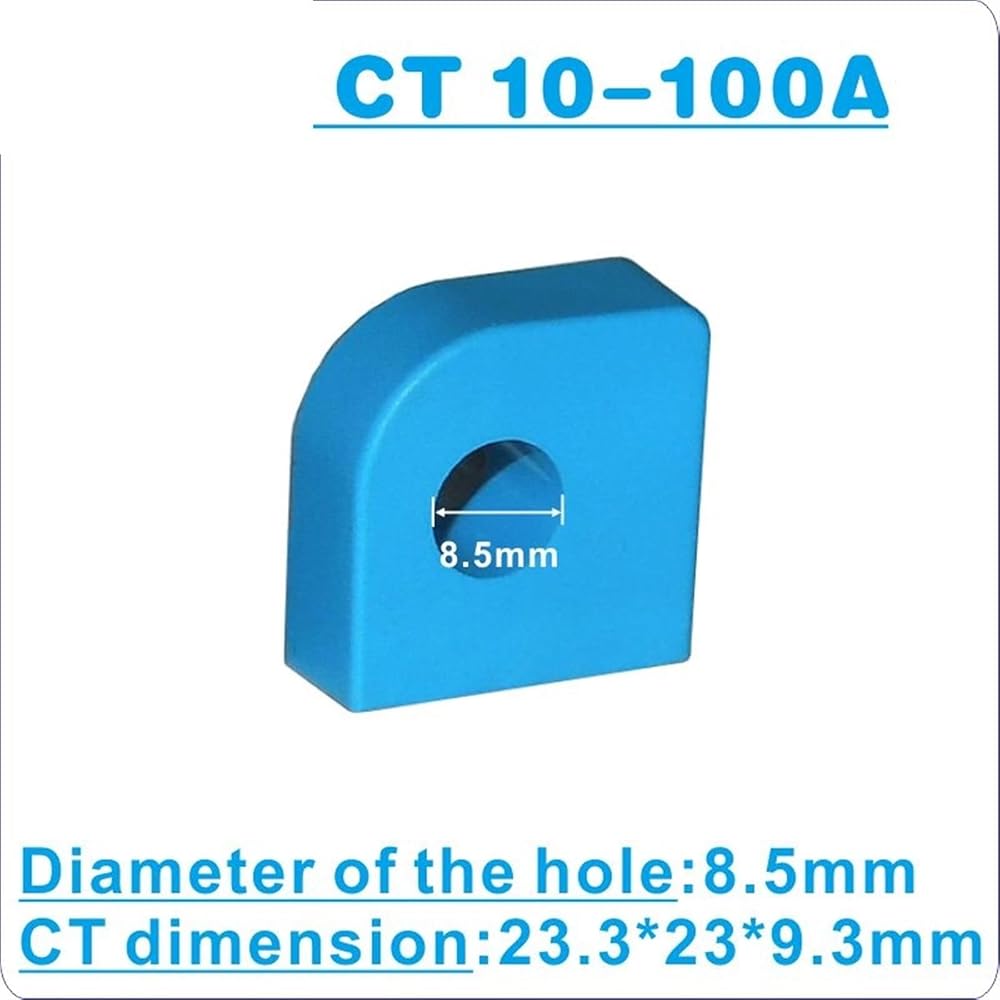

5.CT adopts the design of perforation type wire through the hole without having to cut wires without damage
withoutchanging the electric current wire can be achieved current measurements.
6.Since CT and measured wire is isolated completely this meter can be measured the current of the power positive
negative and any devices don't need to worry about the ammeter "common g
