Attention:

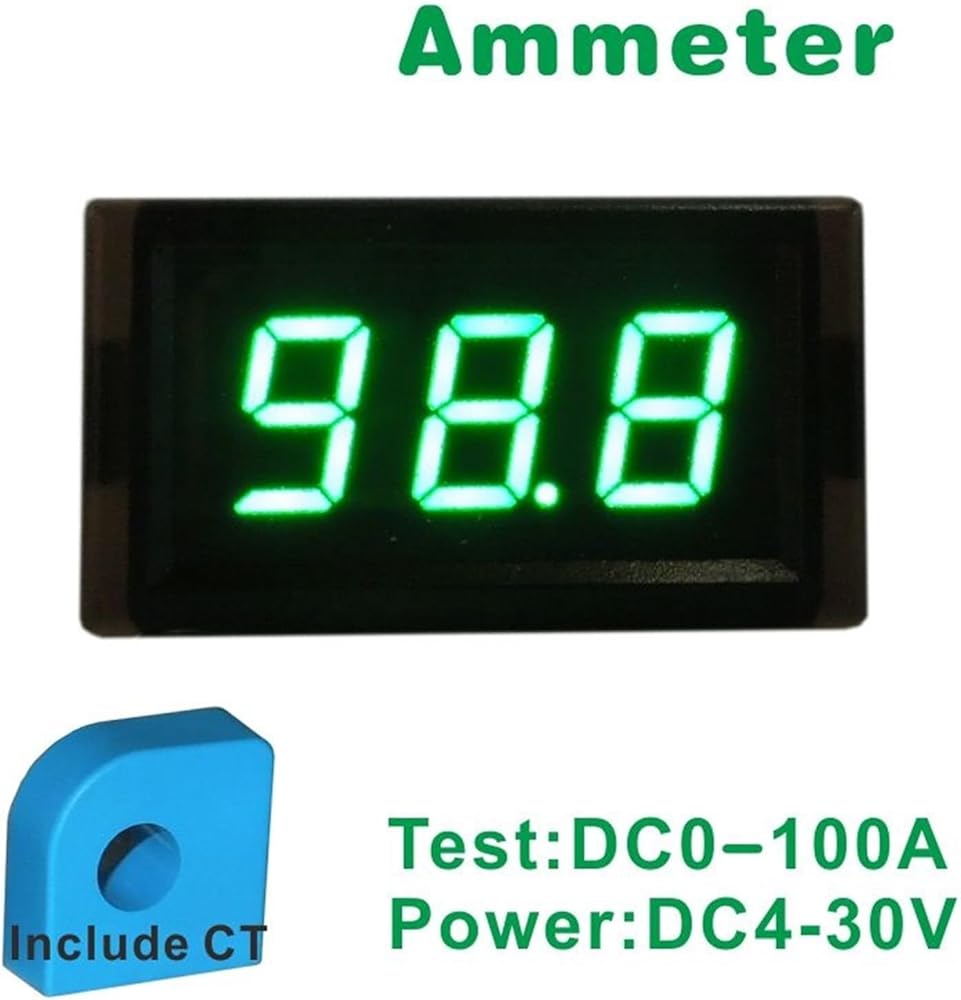

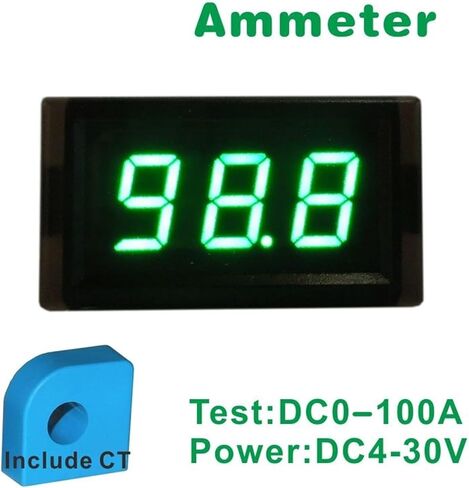

1.Include a current transformer
2.Please try not to install the meter and current transformer around the high temperature strong magnetic field and large transformer otherwise the accuracy will be affected.
3.In order to obtain a higher precision measurement it is recommended to "preheat for 5 minutes" before adjusting the calibration.
4.Since the 24V battery charge full of floating voltage may be over 30V so "no" recommended direct use it.
5.When you select range not the larger the better. the larger the range the larger the error it is recommended that it is 1.5 or 2 times as large as the actual test value.
6.This meter and CT have been calibrated by the "one to one". Please don't mix it up when you use it in the later period. If mixed you need to recalibrate it.
Technical Parameters:
Supply voltage:DC4-30V(Note:The maximum input voltage can not exceed 30V or be burnt.)
Test current:DC100A

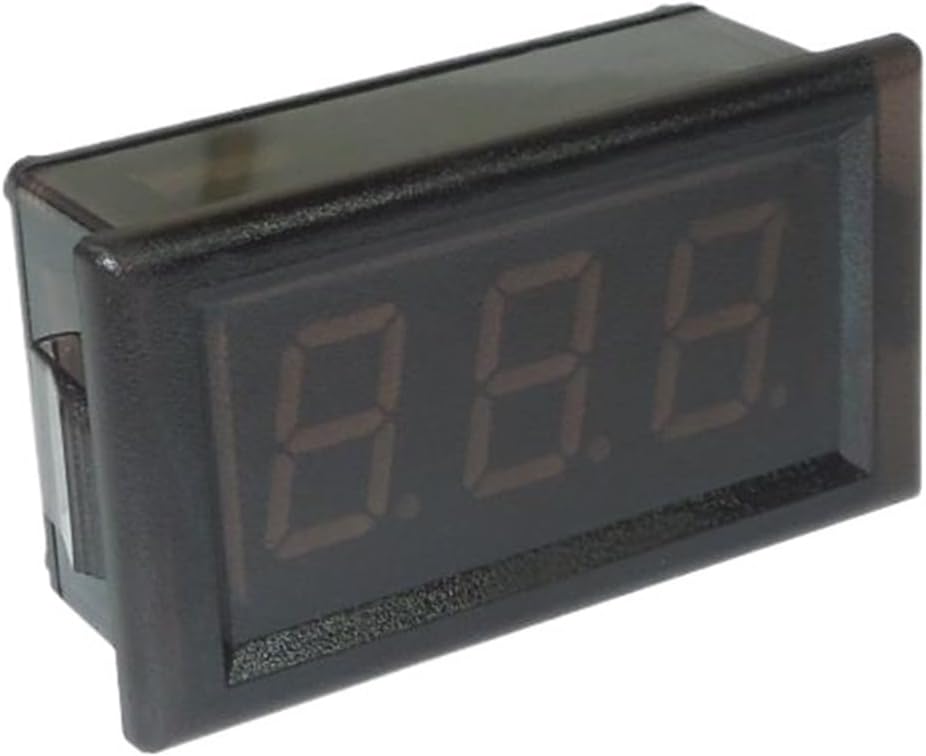

Display type:0.52'' LED
Measurement rate: 500mS / time
Measurement accuracy:1% (± 2 digits)
CT wire length:150mm
Terminal wire length:150mm
Dimension:54*30*21mm

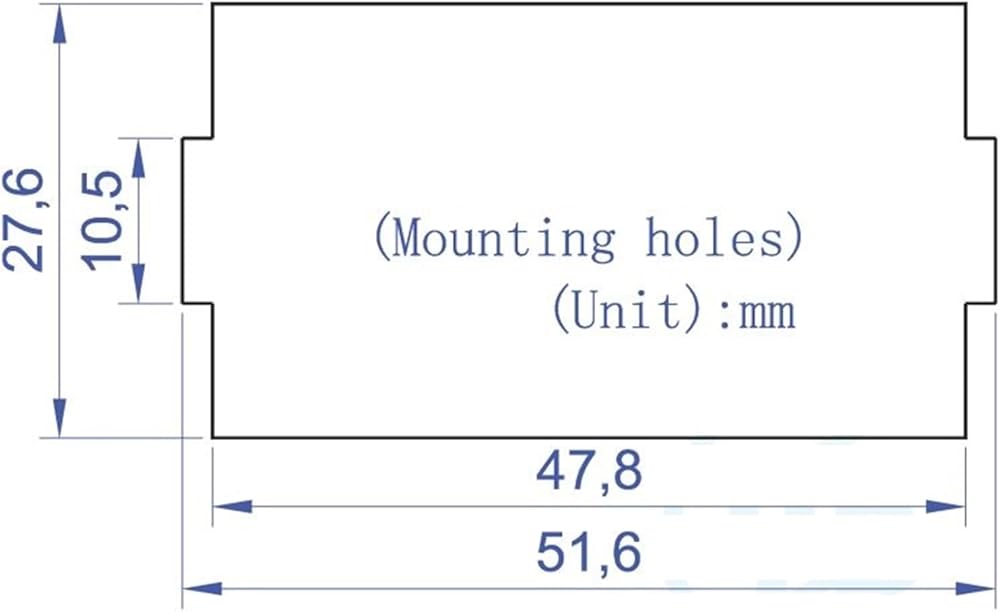

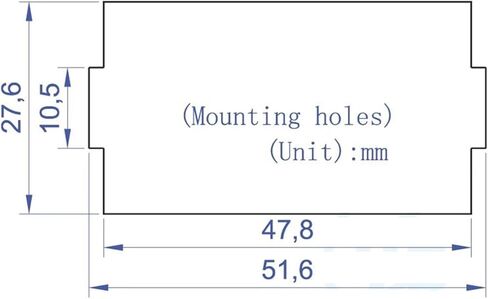

Mounting hole:47.2*27.3mm
Features:
1.The wide power supply range with reverse polarity protection.
3.With a current calibration potentiometer you can calibrate by yourself. The tolarance is absolutely exit.

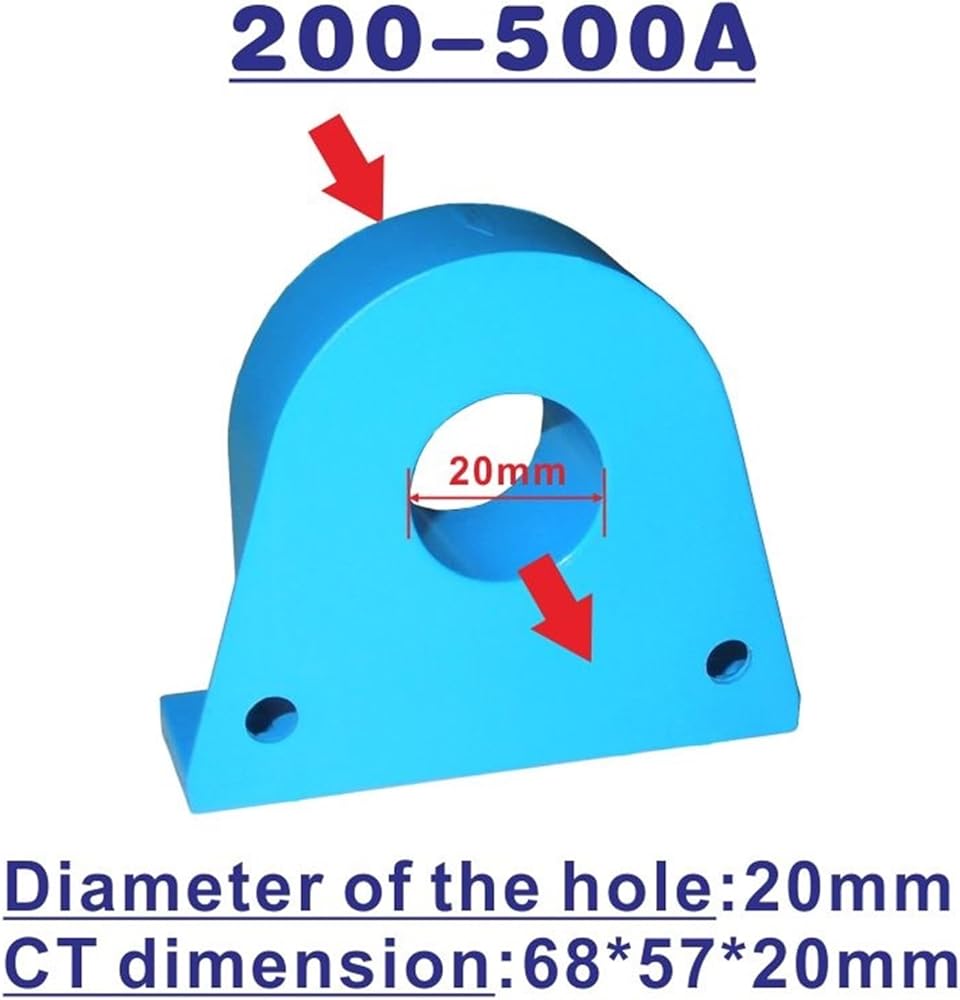

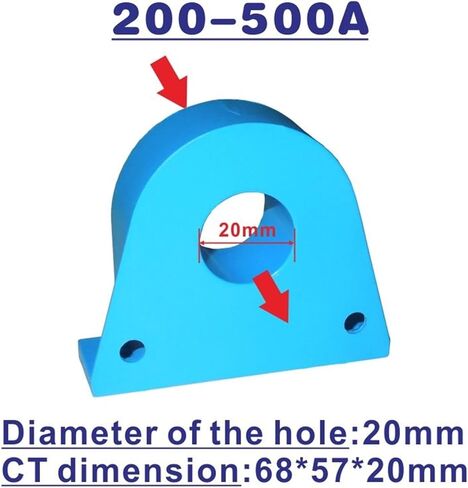

4.CT adopts the design of perforation type wire through the hole without having to cut wires without damage without changing the electric current wire can be achieved current measurements.
5.Since CT and measured wire is isolated completely this meter can be measured the current of the power positive negative and any devices don't need to worry about the ammeter "common ground".
6.The positive and negative current can be measured and the "positive" current is shown in the positive direction(the decima
