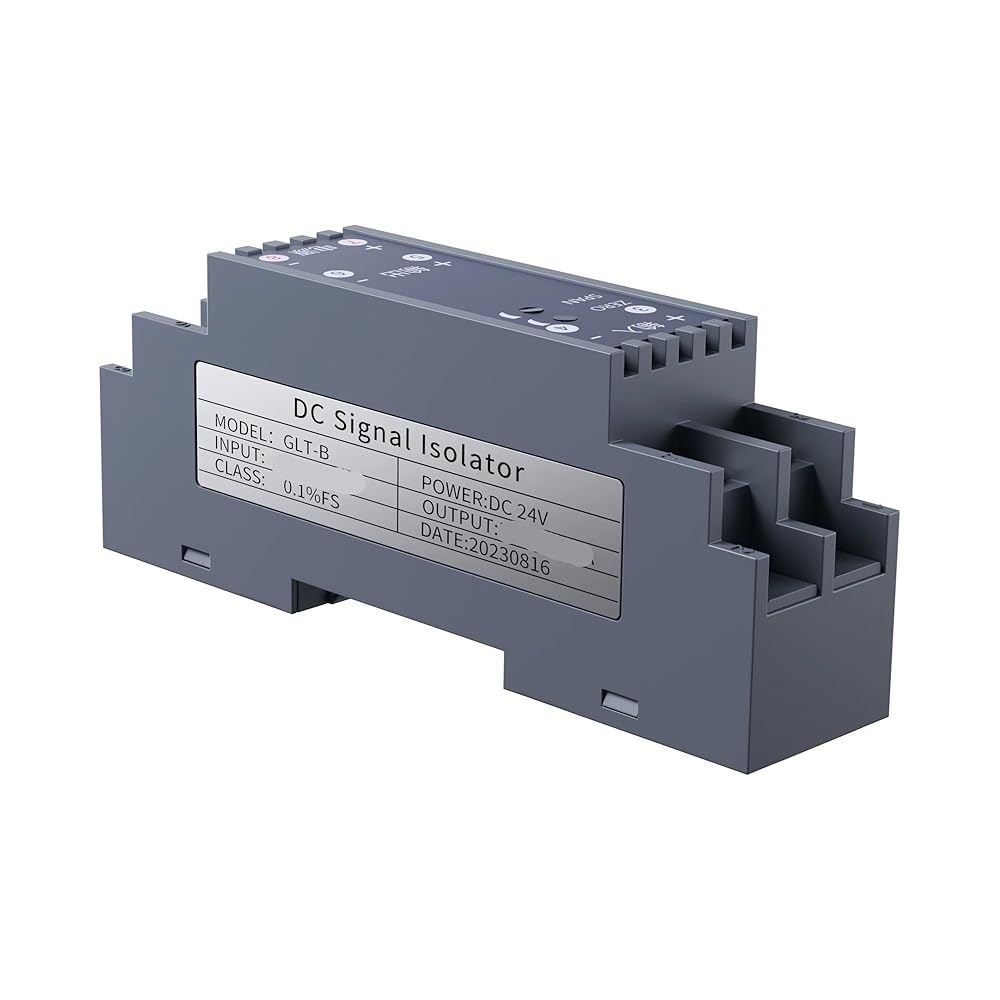

. The input voltage range of this multifunctional transmitter is -2000V~2000V and the input current range is -10A~10A.
. Can be used for standard signals such as 4~20mA 0~10V 0~5V -10V~10V etc.
But it can also be used for non-standard signals such as 20~4mA 10~0V -10V~10V etc.
.Standard 35mm DIN rail independent installation. High precision high linearity low temperature drift. Full channel configuration parameter customization.
. The input output and power supply are isolated from each other and the industrial DC voltage signal is isolated and converted into a standard current or voltage signal.
Technical Parameters
enter
Input signal
±10A; ±2000V; 0~75mV
Input resistance
300
Output
Output signal
4-20 mA; 20-4 mA; ±10 V
Output load resistance
RL500 (output current signal)
RL10K (output voltage signal)
Other parameters
power supply
DC24V ±10%
Current consumption
30mA (1 in 1 out 24V power supply output 20mA);
50mA (1 input 2 output 24V power supply output 20mA);
50mA (2 in 2 out 24V power supply output 20mA);
accuracy
0.1% of full scale
Response time
10 ms (0-90%) (typical)
Temperature drift
0.005% full scale/(-20～+55)
Isolation Strength
1500V AC/1 minute (between input output and power supply)
Insulation resistance
100M (between input output and power supply)
Electromagnetic compatibility (EMC)
Comply with GB/T 18268 (IEC61326-1)
Applicable devices
Voltage signal output device
Working temperature and humidity
