Needle-Bearing
Custom processing: Yes

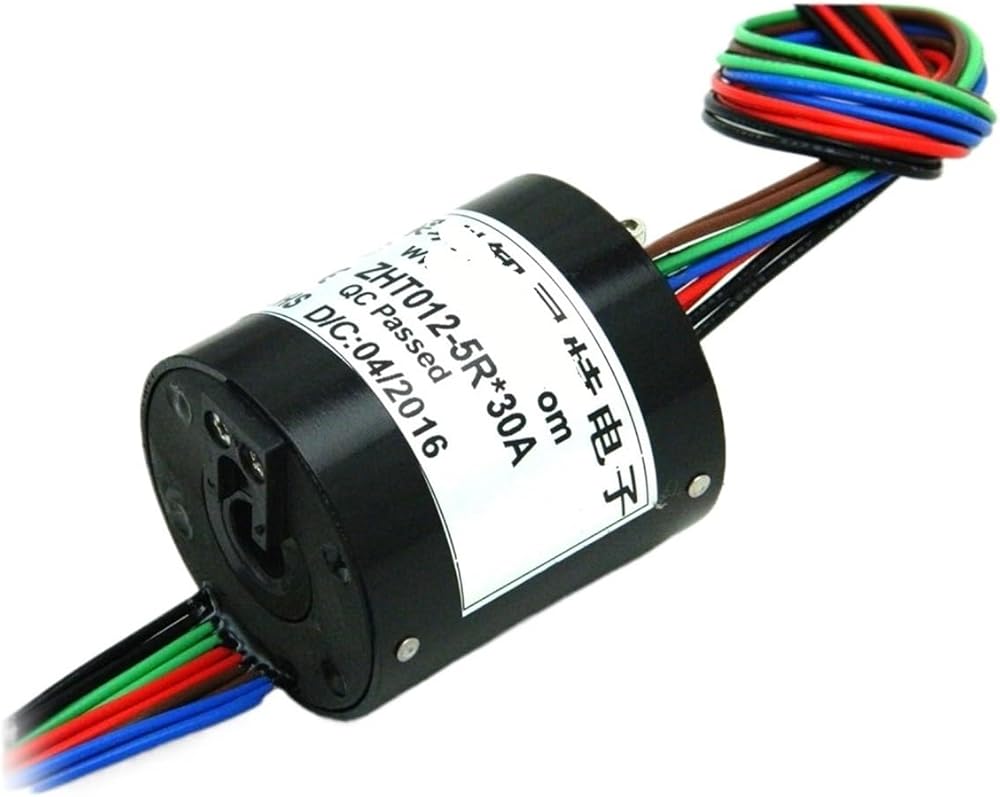

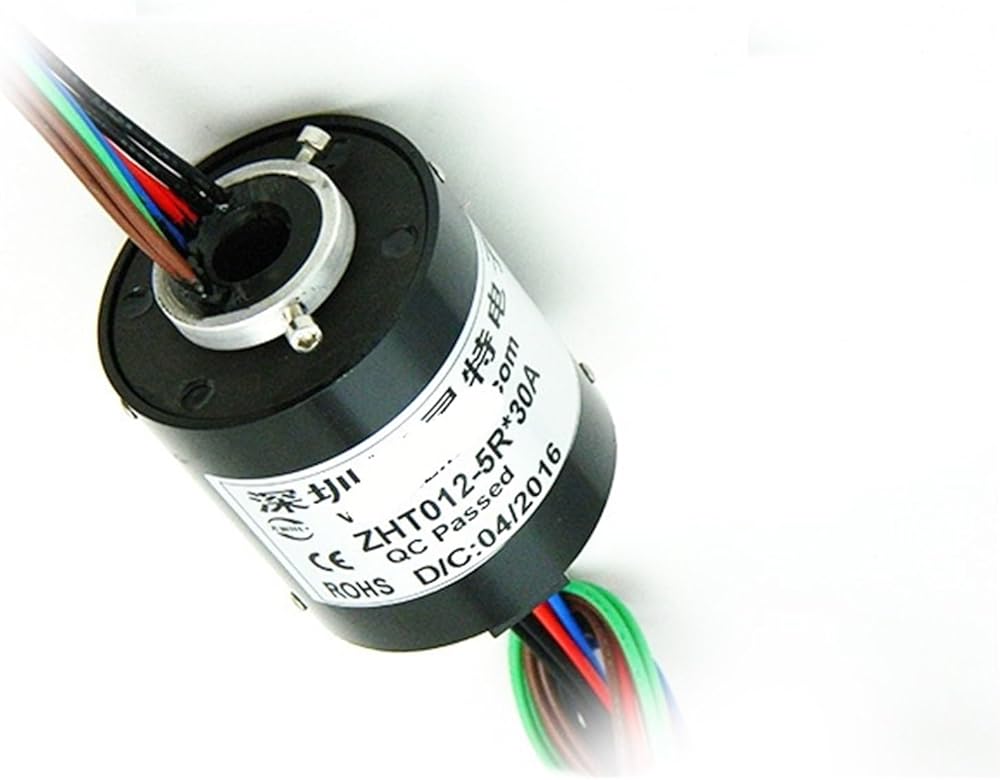

Model: ZHT038-05R*30A
Specifications: 38.1mm series

model
ZHT012-5R30A
Number of channels
5
Rated current
30 A/circuit current
Rated voltage
240VAC/DC
Speed
0-200rpm
hole diameter
ø12mm
Contact material
Precious metal
Shell material
Aluminum Alloy
Dynamic resistance
Minimum 1mΩ
noise
Wire Specifications
AWG16 Silver-plated
Compressive strength
500VDC@50Hz,10s
Wire length
Standard 250 mm
Dielectric strength
500mΩ@500VDC,10s
Protection level
IP54
Operating temperature
-20℃ ~+60℃
Operating humidity
10%-85% RH
Shockproof level
MIL-STD-810E
