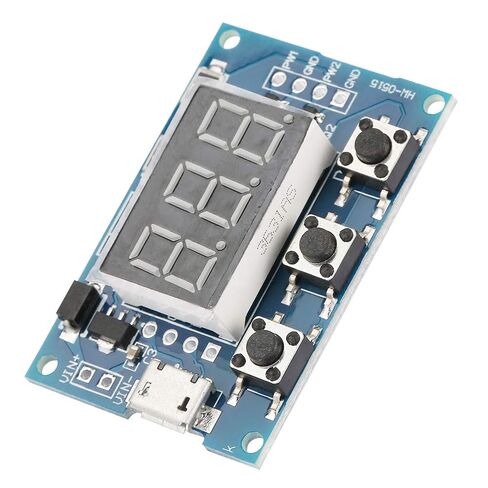

[Dual Channel Control]This generator allows independent control of two PWM signals, enabling versatile pulse modulation for various applications.
[Wide Frequency Range]Generates a frequency output from 1Hz to 150KHz, suitable for multiple scenarios including microcontroller interfacing and analog signal generation.
[Flexible Power Supply]Operates on a voltage range of 5-30V with micro USB support, ensuring convenience for diverse setups.
[Precise Duty Cycle Settings]Easily adjust duty cycles from 1% to 100% for both channels, enhancing functionality for various projects.
[Compact Design]Weighing only 9g and measuring 41mm x 28mm, it offers a space-saving solution for your electronics prototypes.

Features:
1. 100% brand new and .

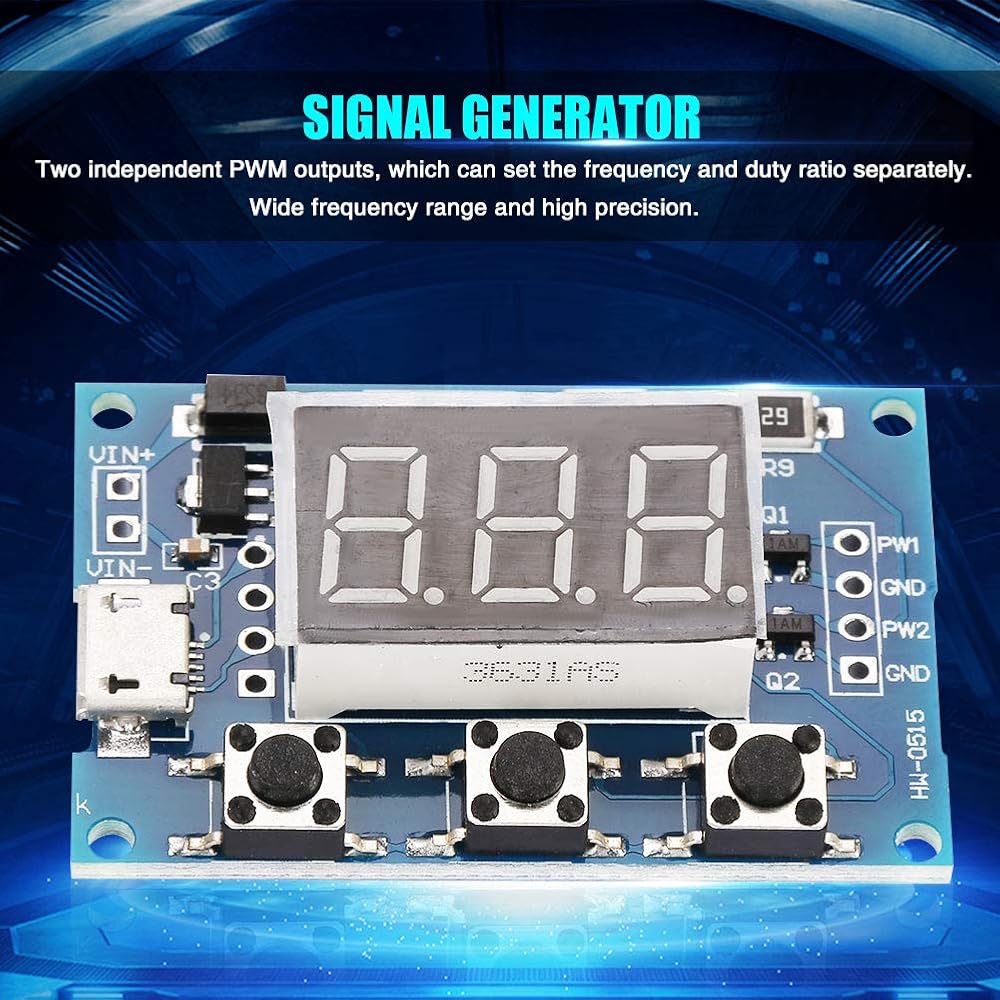

2. Two independent PWM outputs, which can set the frequency and duty ratio separately.
3. Wide frequency range and high .
4. This product can be serial communication.

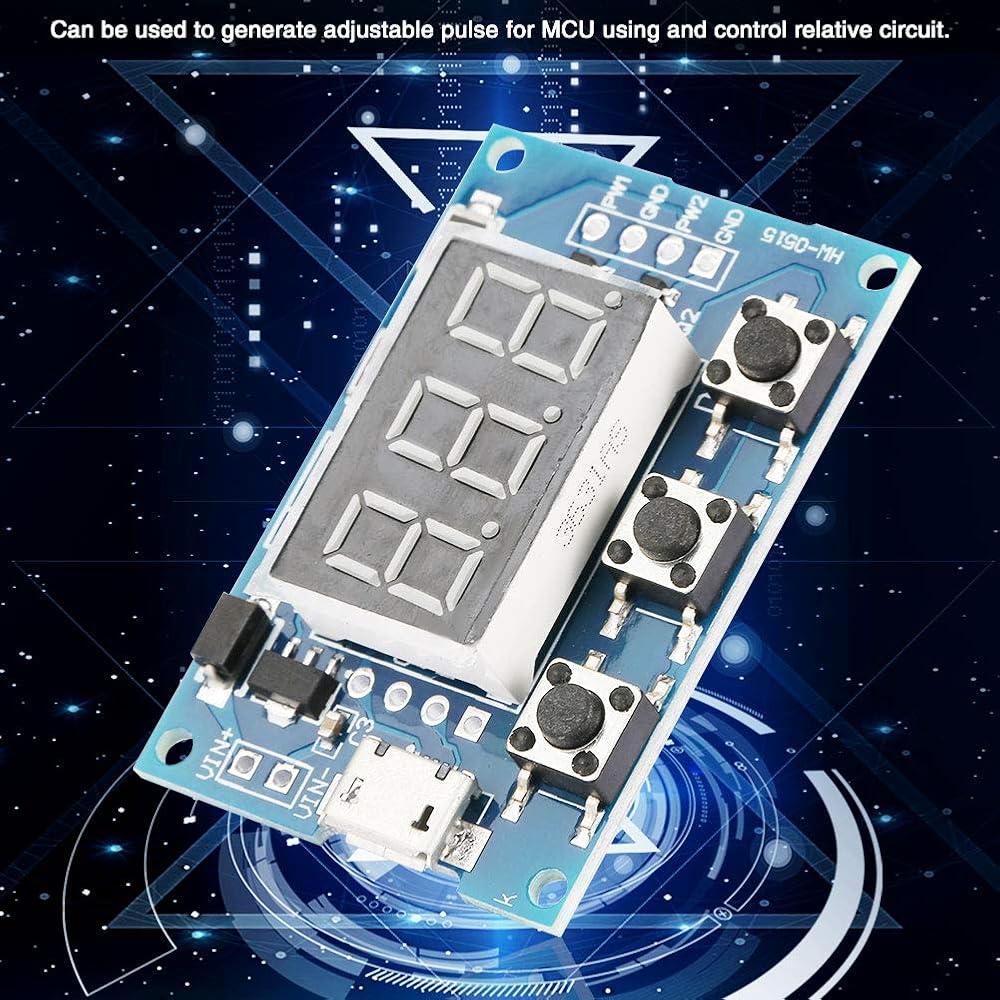

5. Can be used to generate adjustable pulse for MCU using and control relative circuit.

Specification:
Condition: 100% Brand New
Operating Voltage: 5-30V, support micro USB 5.0V power supply
Frequency Range: 1Hz-150KHz
Frequency : 2%
Signal Load Capacity: Output Current is within 8--30mA

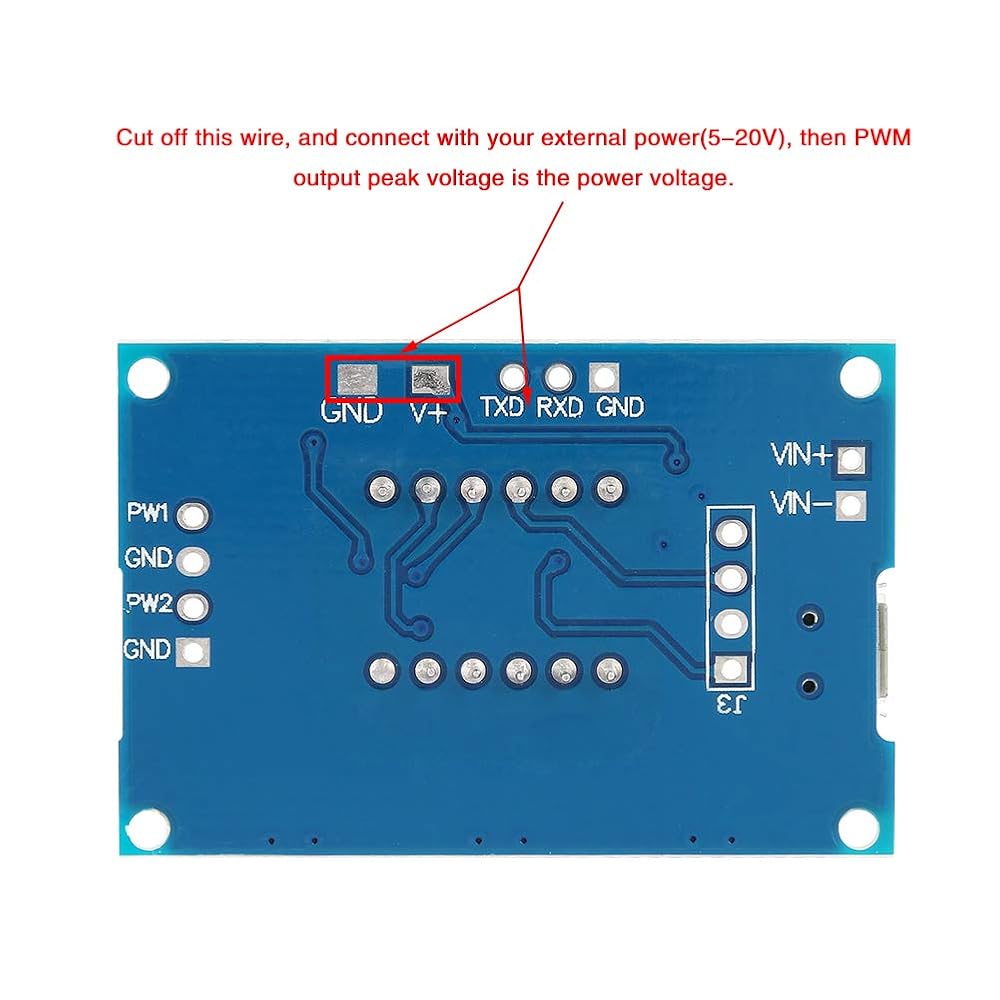

Output Range: default 5V V-pp (can be changed by external power)
Environment Temperature: -30 ~70℃
Serial Port Control: Communication Standard:9600 bps
Data Bit:8
Stop Bit:1
Verify Bit:none
Control:none
Weight: Approx. 9g / 0.3oz

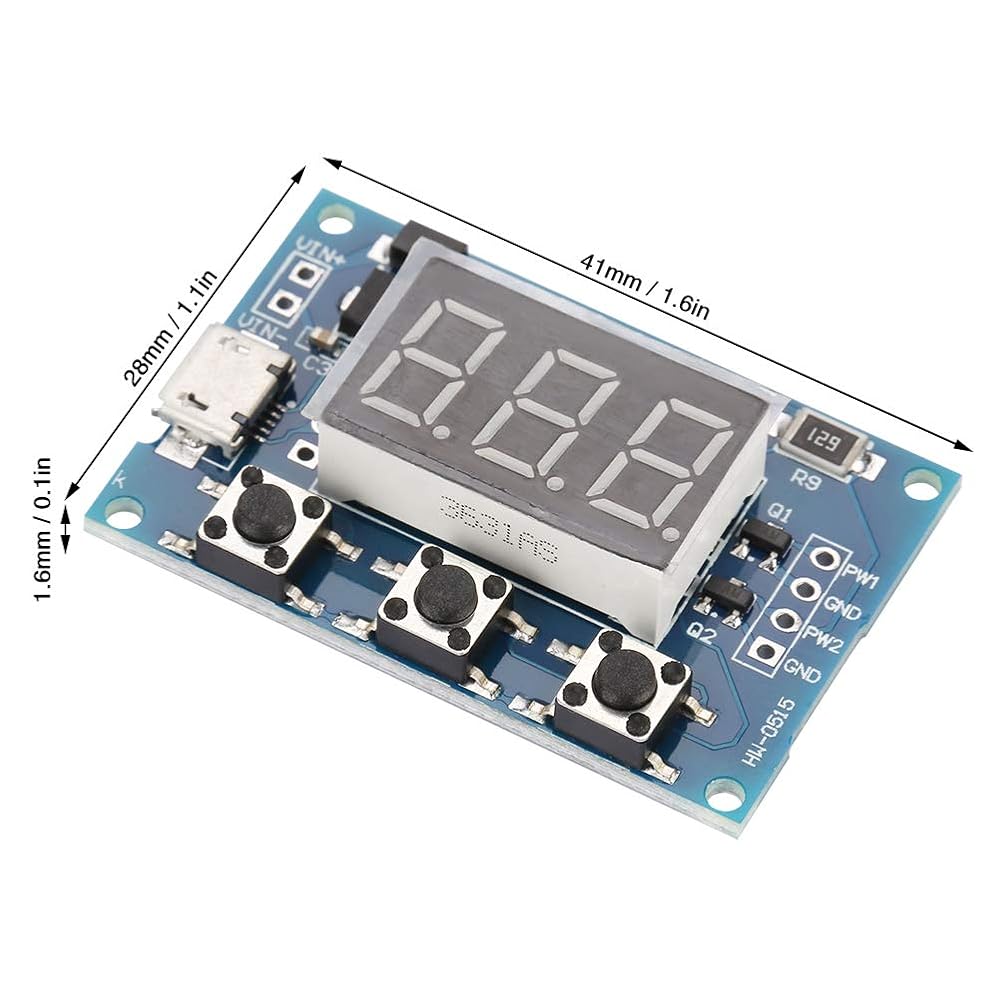

Size: Approx. 41 * 28 * 1.6mm / 1.6 * 1.1 * 0.1in

Parameter Setting:

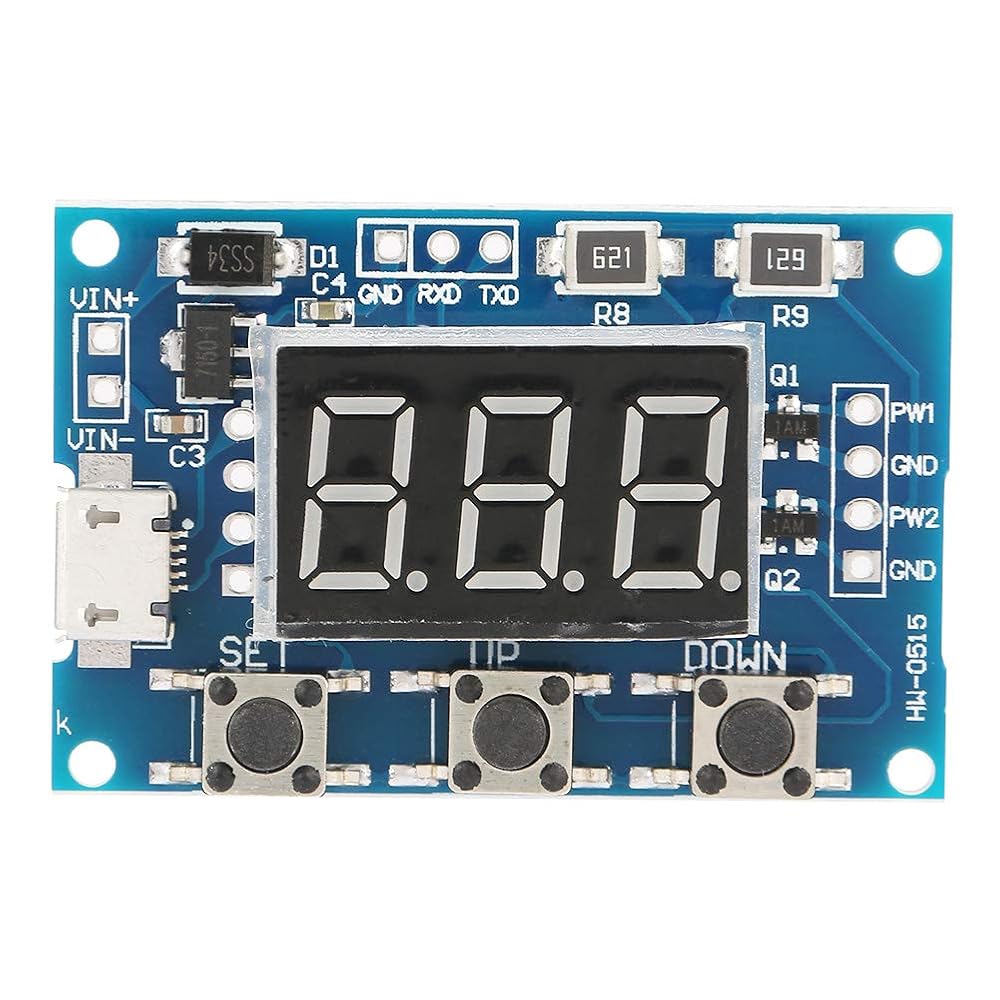

Module has 3-channel key:Set,Up,Down
1. By short press SET key, can shift display 4 parameter values (FR1:PWM1 frequency; dU1:PWM1 duty cycle; :PWM2 frequency; dU2:PWM2 duty cycle); before shifting,there will be corresponding parameter
