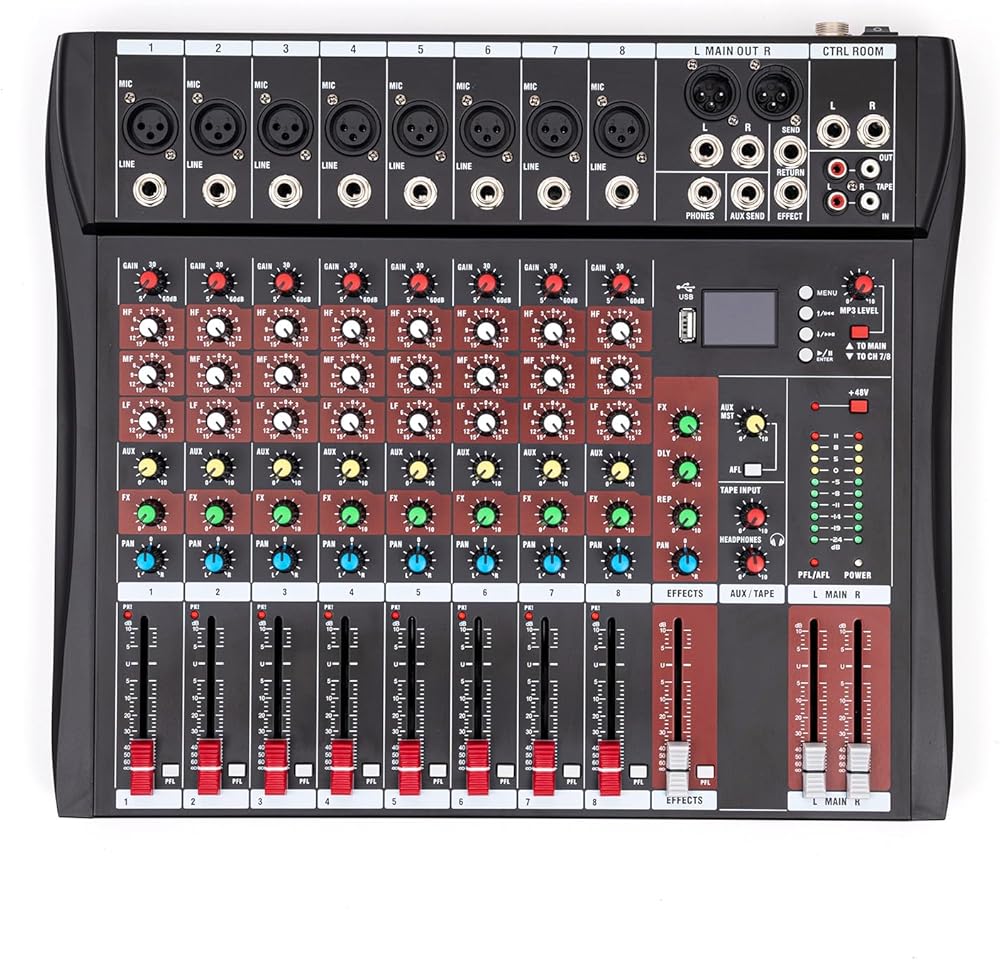

Description

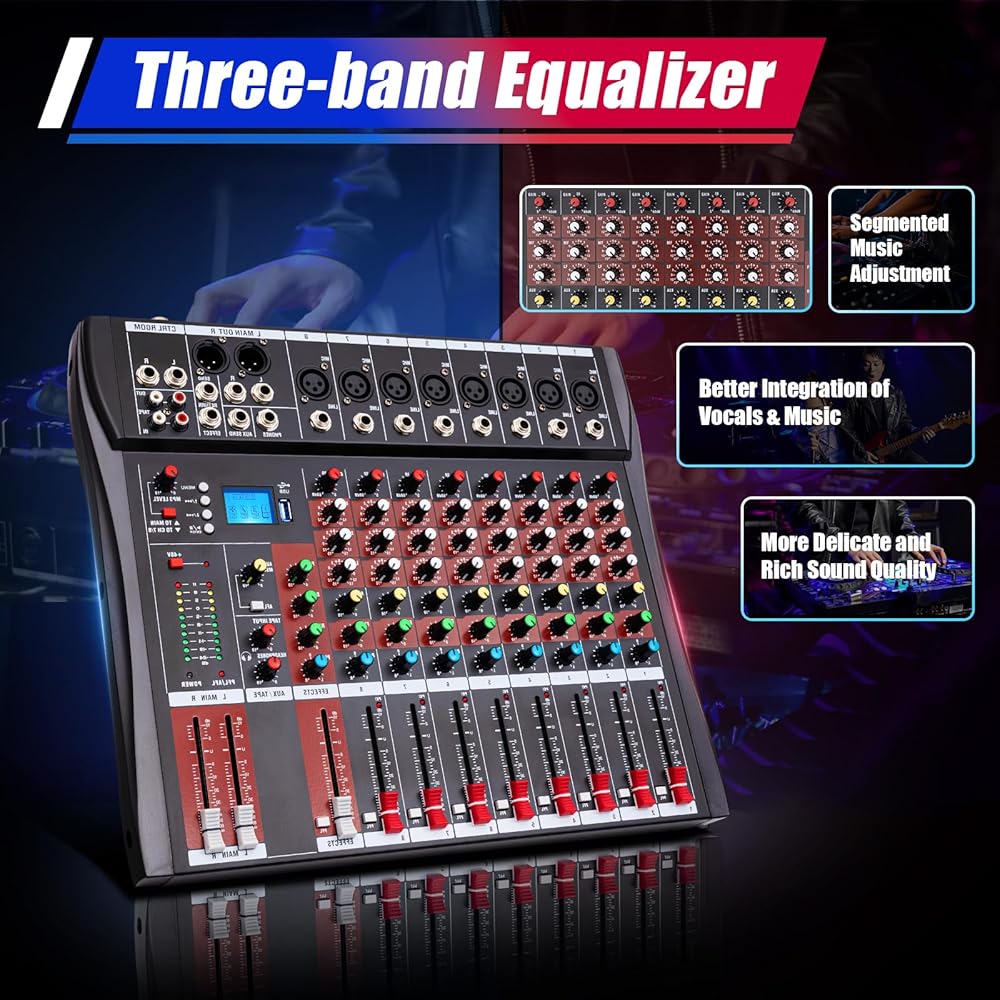

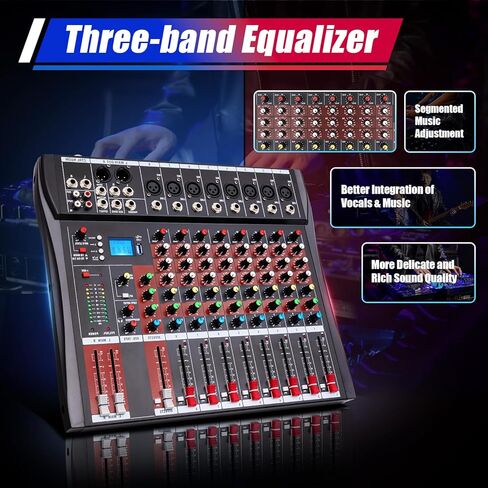

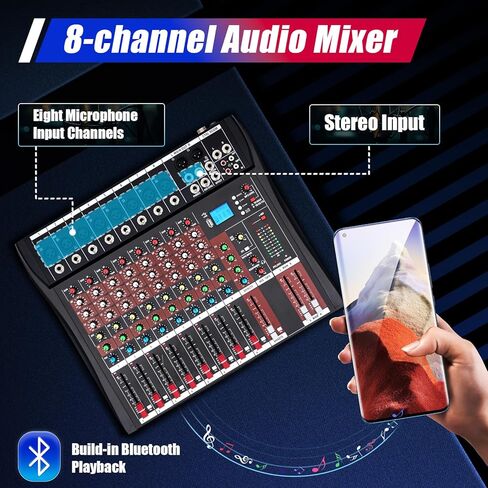

This is a multifunctional audio mixer that can bring you a professional-level listening feast. With the main channel three-band equalizer, it can adjust the music in sections to make the vocal effect rich and natural to avoid the dry vocals.

Specification
Color: Black
Material: Metal, Damping

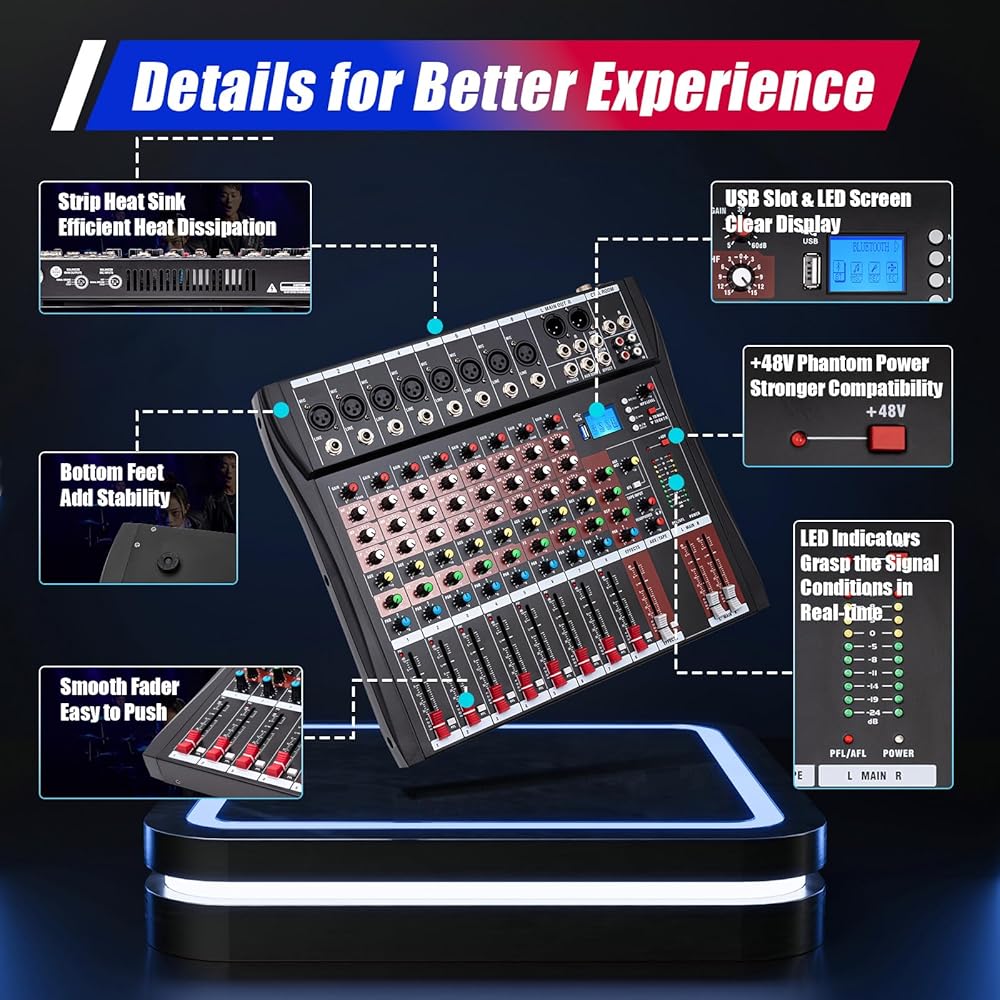

Display: LED
Process: Powder Coating

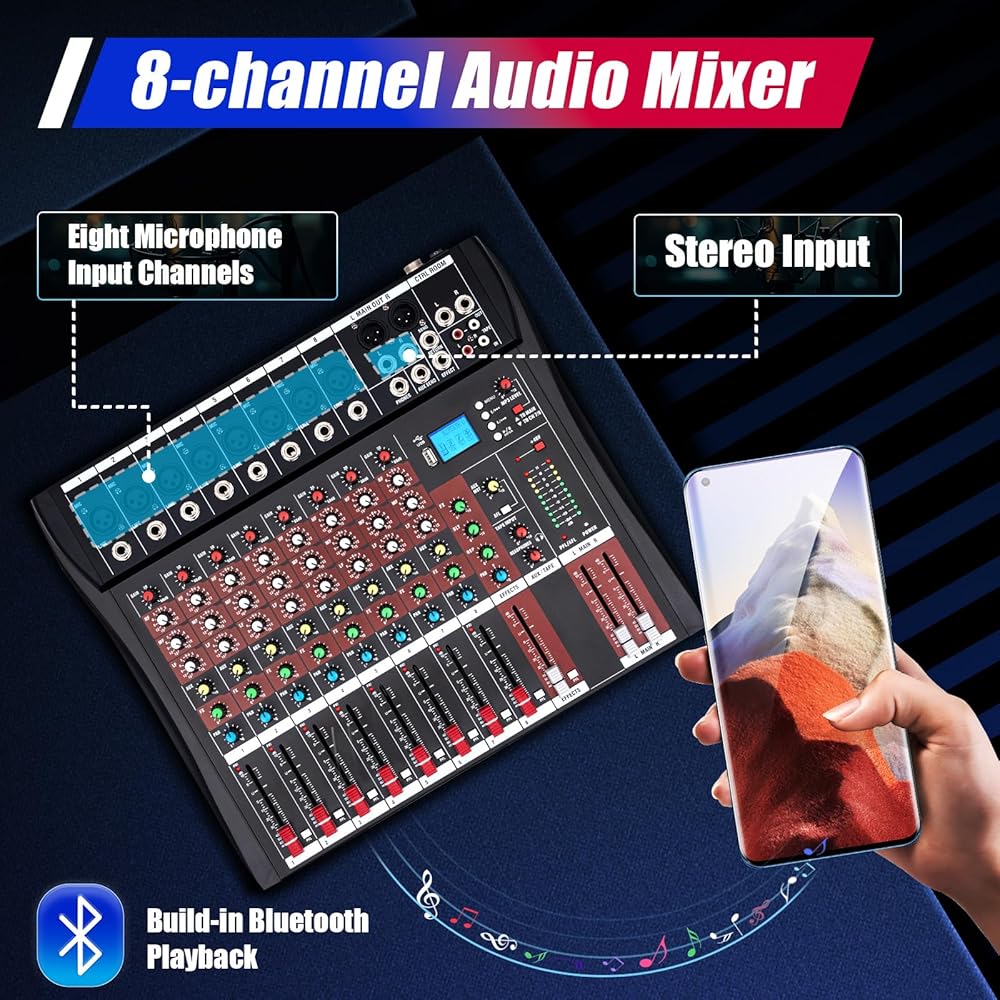

Number of Channels: 8
Plug: US Standard
Max Input Level: +24dBu(MIC/Line)
Max Output Level: +26dBu(XLR)
Master Meters: 10 Segment -24dB to CLIP
Frequency Response: 20Hz to 30KHz 0.5dB
Max Input Power: 15W
THD+N: ＜0.01%(Channel Input to Mix Output)
Crosstalk at 1kHz: ＞85dB(Fader/Mute Shut Off); ＞82dB(Inter Channel)
Noise (22Hz to 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise
2-track Return: RCA, Unbalanced, 4K ohm, -2dBu
2-track Send: RCA, Unbalanced, ＜75 ohm, -2dBu
L/R Output: XLR Unbalanced, Pin 2 Hot, ＜75 ohm, +4dBu, Max.+22dBu
FX/AUX Output: TRS Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu
Headphones: TRS, Tip L, Ring R, 30 to 600 ohm Headphones Recommended

Mono Channel:
XLR Balanced, Pin 2 Hot, 2K ohm, Sensitivity -40 to +14dBu
TRS Balanced, Tip Hot, 10K ohm, Sensitivity -20 to +14dBu
XLR, Phantom +48V

Adaptor:
Model: LWV, 16PS
Input: AC 110V 50Hz, 18W
Output: AC 18Vx2, 350mA

Slide Length: 7cm/2.76inch
Gross Weight: 4.65kg/10.25lbs
Net Weight: 4kg/8.82lbs
Package Size: 44.5 x 42 x 11cm/17.52 x 16.54 x 4.33inch
Product Size: 40 x 34 x 5cm/15.75 x 13.39 x 1.97inch

Package Included
1 x Mixer
1 x Power Adapter
1 x English Manual
