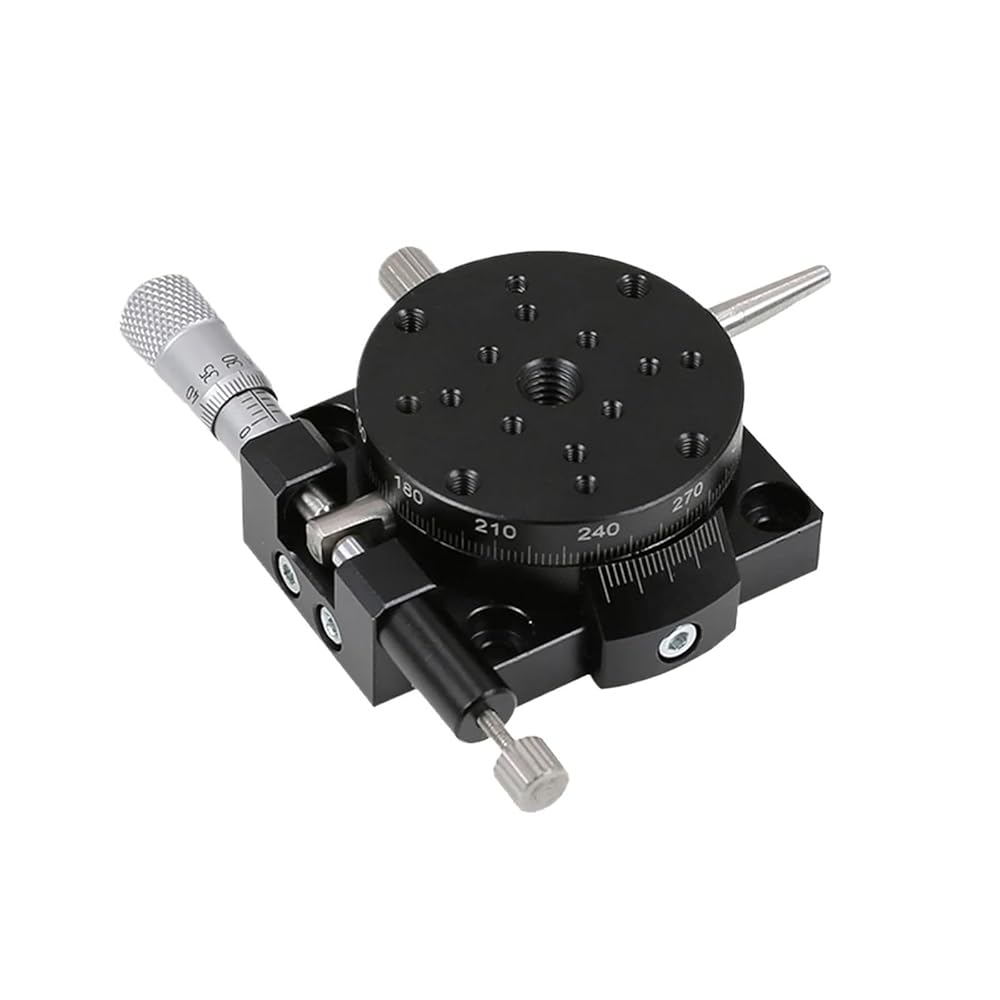

تحميل انزلاق منصة دوارة يدوية دقيقة للمحور R 9.8N 40 مم (RSP40-L)
مقاسRSP40-L
مميزات خاصة
- Roller Tables
- Earth Axis Movement | R-Axis Accuracy: R-Axis Designed for Accuracy
- Load Capacity: This platform has a 9.8N load capacity and supports up to 1kgf, making it ideal for heavy-duty applications.
- Linear Guides: Linear sequencing mechanisms provide smooth, repeatable motion for reliable positioning.
- High precision: roundness 0.03mm, parallelism 0.01mm
- Lightweight design: the platform weighs only 0.1 kg
وصف
Roller Tables
scope:
1. Rotation direction: R-axis rotation
2.Material: aluminum
3. Workbench size: 38mm
4. Stroke: 360° (coarse adjustment), ±5° (fine adjustment)
5. Load: 9.8N (1kgf)
6. Minimum size: 10'
7. Roundness: 0.03mm
8. Parallelism: 0.01mm
9. Weight: 0.1kg
10.R axis rotation
