مميزات خاصة

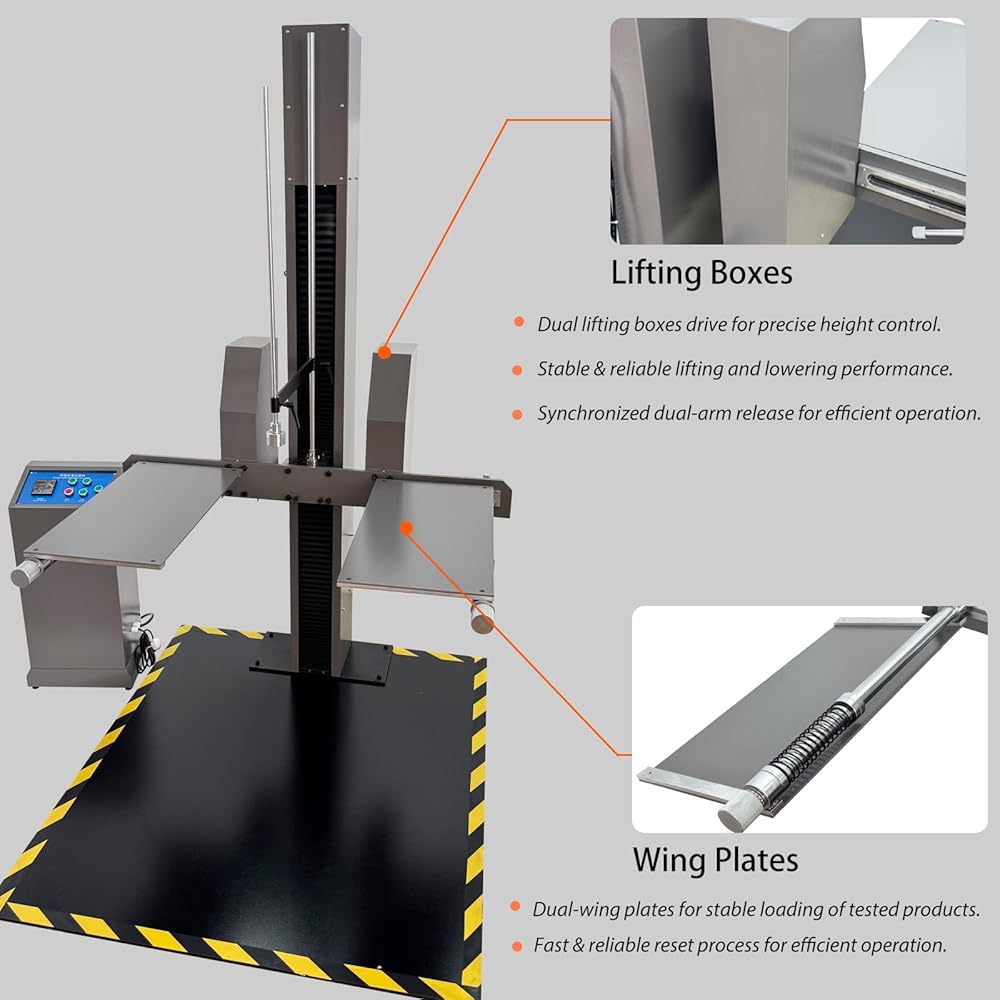

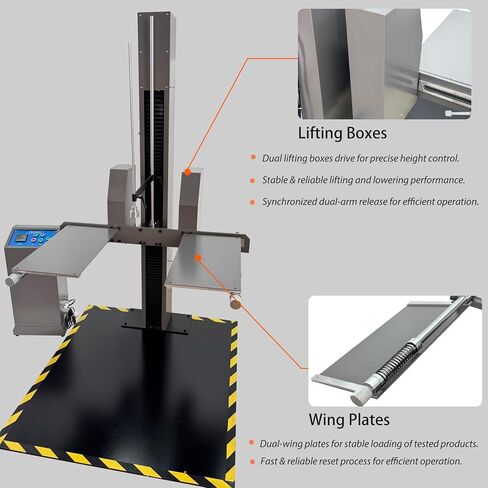

Stable Double-Wing Structure: Double-wing plate design ensures stable sample loading, quick resetting, and easy width adjustment (1/3P horsepower support). High-precision encoder height display guarantees accurate drop height control (400-1500mm/15.7''-59.1''), with a maximum test piece load of 80kg (176.4LBs).
High Precision & Accurate Test Results: Features minimal drop error (±10mm/0.4'') and drop plane error (<1°) for true and effective impact data. 1400x1200mm (55.1''x47.2'') high-impact resistance panel ensures reliable testing performance, while stable fixture clamping boosts sample testing efficiency.
Robust Construction: Heavy-duty base plate (1400x1200x10mm/55.1''x47.2''x0.4'') and test bench (1440x1250x2060mm/56.7''x49.2''x81.1'') deliver superior stability. 0.75kw motor power (220V single-phase) supports consistent operation, suitable for long-term industrial use.

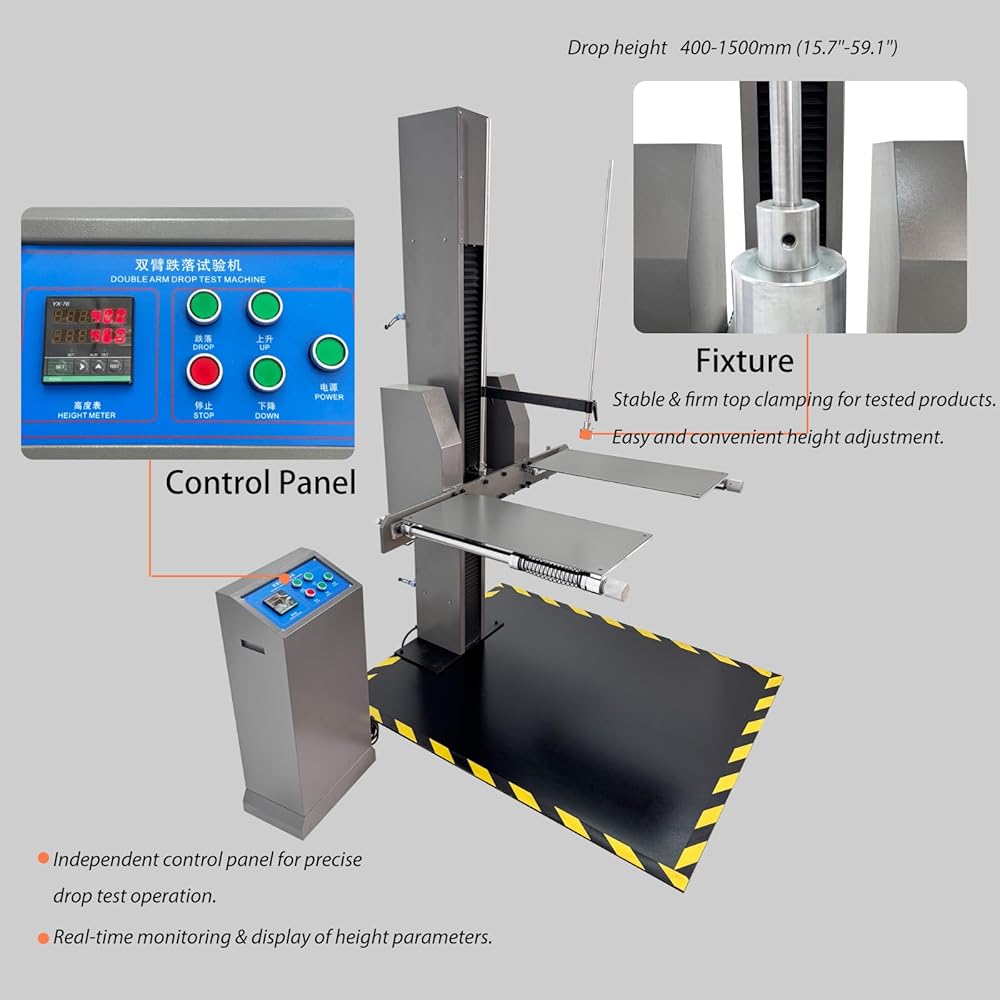

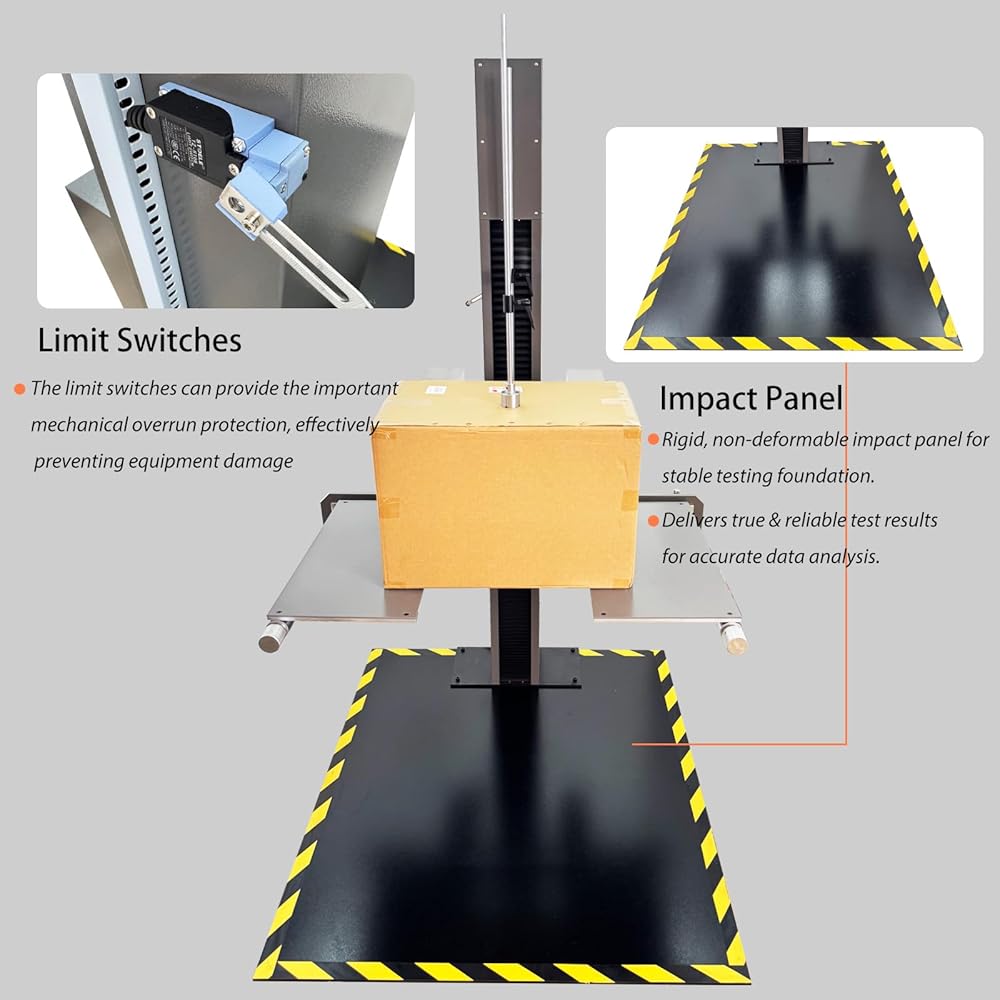

Reliable Safety Protection: Equipped with height limit switches for mechanical overrun protection, preventing equipment damage and reducing maintenance costs. Independent control box with an integrated panel enables real-time digital height display and one-key operation for enhanced safety and convenience.

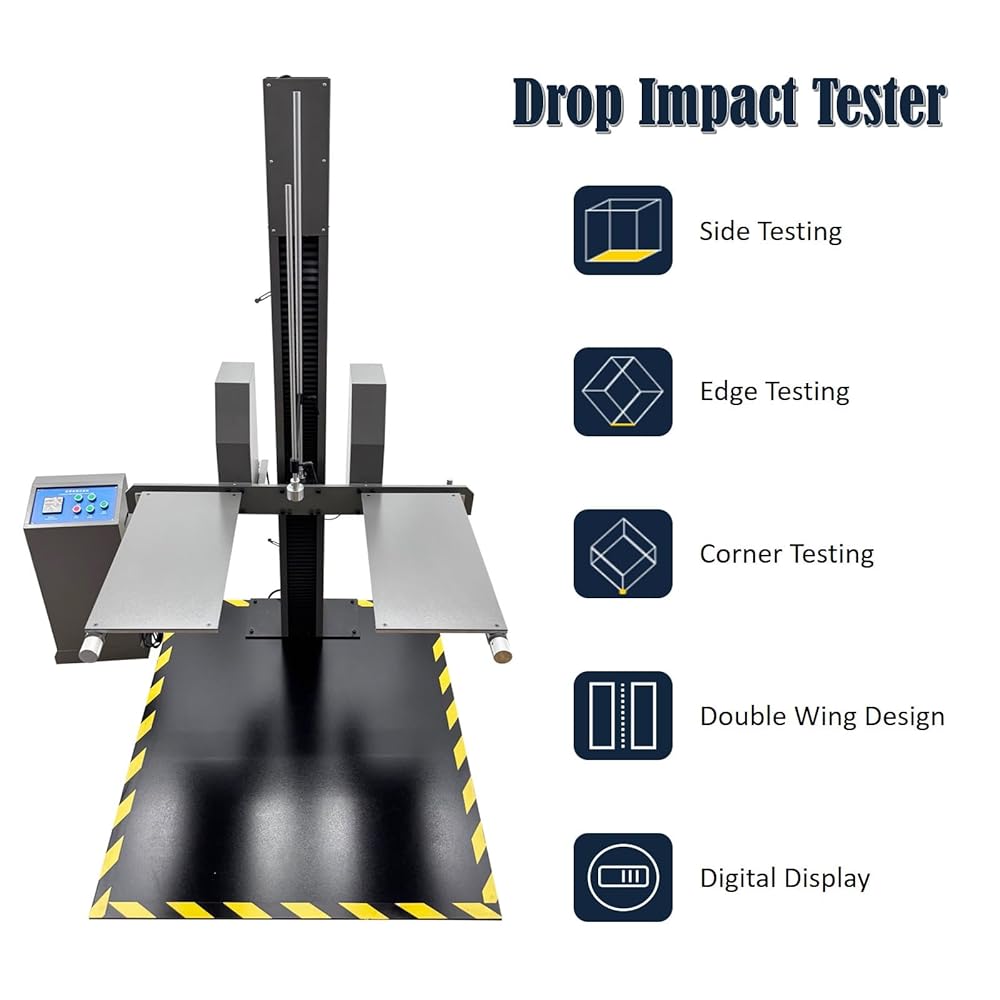

Wide Industry Application: Achieve precise side, edge, and corner drop tests to evaluate packaging impact resistance during transportation and handling. Ideal for packaging production, furniture manufacturing, and logistics industries, ensuring compliance with GB/T4857.5-92 and ISO2248-1972(E) standards.

وصف

Product Overview

The dual-arm drop testing machine is mainly used to test the degree of impact of drop impact on the packaging in the actual transportation, loading and unloading processes, evaluate the impact resistance strength of the packaging during handling, and assess the rationality of the packaging design. The drop tester can achieve side, edge and corner drop testing, has the advantages of simple operation, high stability and precision and wide application. The machine meets the standards of GB/T4857.5-92 and ISO2248-1972 (E). The drop tester is suitable for the package production industry, the furniture production industry, the logistics transportation industry and other related industries.
Product Parameters

Power supply 220V single-phase 1KW

Motor power 0.75kw

Drop height 400-1500mm (15.7''-59.1'')

Maximum weight of test piece About 80kg (176.4LBs)

Maximum size of test piece 1000x800x1000mm (39.3''x31.5''x39.3'')

Size of impact panel 1400x1200mm (55.1''x47.2'')

Size of base plate 1400x1200x10mm (55.1''x47.2''x0.4'')

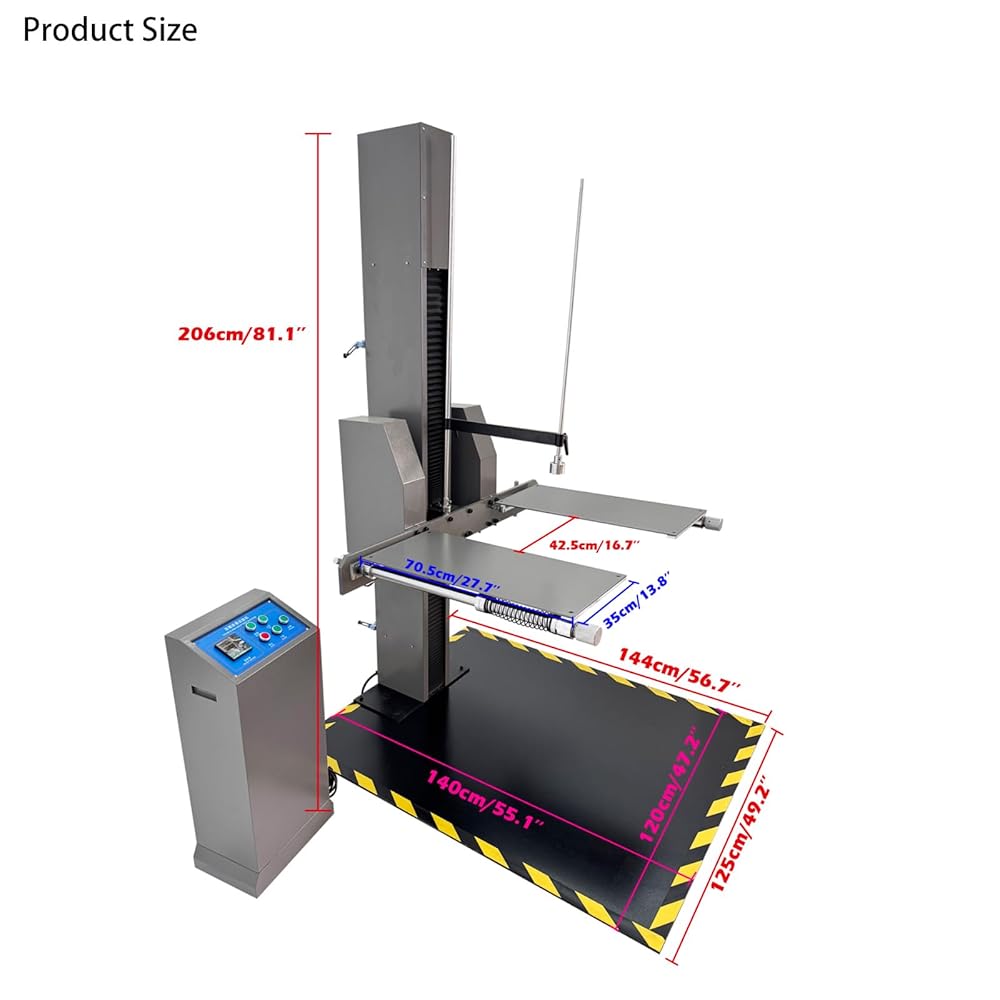

Test bench dimensions 1440x1250x 2060mm (56.7''x49.2''x81.1'')

Drop error ±10mm (0.4'')

Drop plane error
Horsepower Increase 1/3P, manually adjust the width

Height display High-precision encoder induction

Standard met by test system ISO2248-1972 (E)
