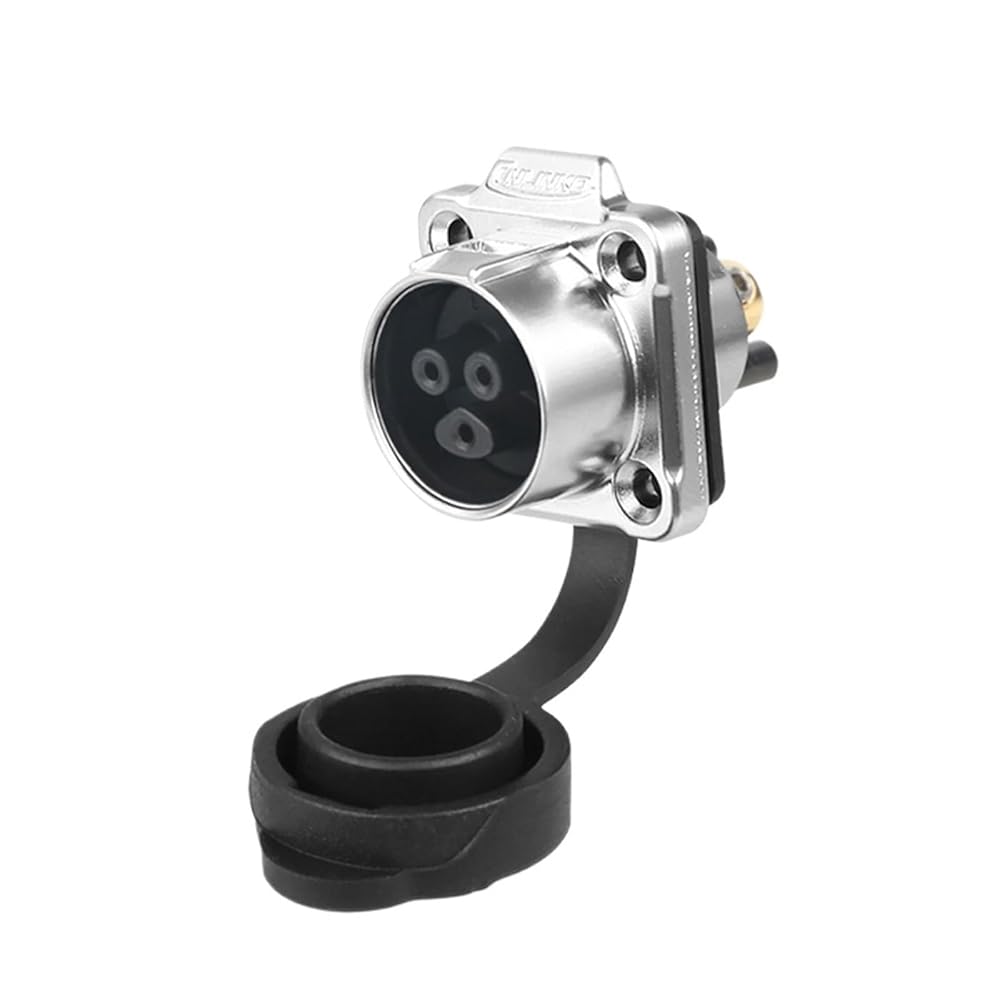

LP12 Fast Screw Locking Connector Waterproof 12mm 3 Pin Electrical Power Connector for Industrial LED Lights
Features:Compact Size
Its compact 12mm 3-pin design makes it easy to install and space-saving, perfect for tight industrial environments.
Waterproof Design
The waterproof feature makes it ideal for use in humid or wet environments, enhancing its reliability and safety.
Fast Screw Locking System
Equipped with a fast screw locking system, this connector ensures quick and secure connections for efficient operation.
Versatile Voltage Compatibility
With customizable voltage options, this connector caters to diverse electrical needs in industrial LED lighting systems.
==========
Hign-concerned Chemical : None
Model Number : LP-12 Series Connector
Voltage :
Origin : Mainland
Certification : ,UL,weee
Cable Specification : 0.34~0.5mm²/22-20AWG
Current Rating: : 5A
Operating Voltage(AC.V.rms): : 125V
Withstandard Voltage(AC.V)1Min: : 1500V
Temperature rating : -40~+85
Assembly Style : Screwing
Shell & Insulated Parts : Zinc alloy/PBT
Hardware Metal : Zinc Alloy
Contact : Copper Alloy(gold plated)
Cable O.D range : 5.0mm~6.0mm
Contact resistance (Max.) : 5.0m
IInsulation resistance (Min.) : 500M
Contact diameter : O.D1.0*3
