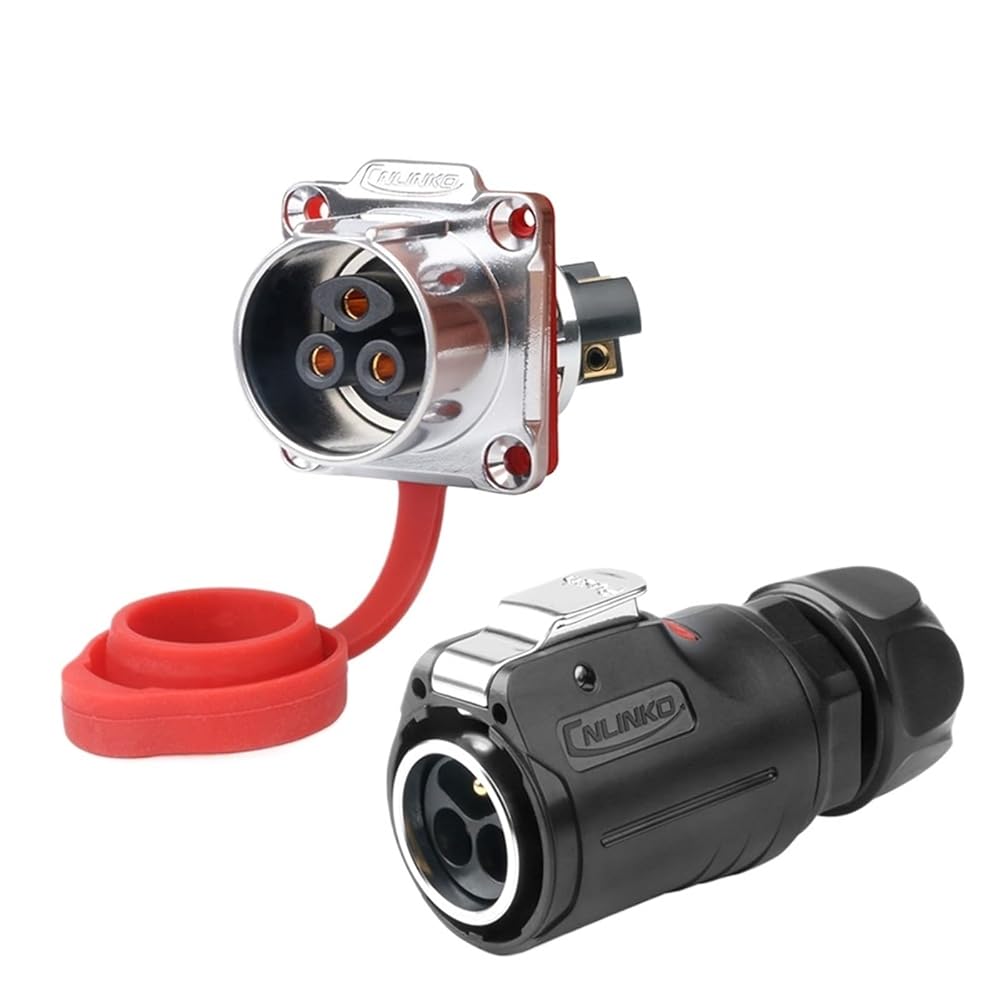

1Pcs LP24 Quick Screw Locking Connector 2/3 Pin Industrial AC Power Waterproof IP68 25A Lock Line O.D10.5~14mm Wire Connector(Male Flange Socket,2P) in Saudi Arabia

Flange set 2P

SAR 267
ColorFlange Set
Size2p
– 1 +

Special Features

  • Connectors
  • Lp24 Quick Screw Locking Connector|3 Pin Industrial Ac Power Connector|Three prevention technology:Features triple protection against dust, water, and corrosion with IP68 rating.
  • Gold-plated copper: gold-plated copper ensures optimal conductivity and durability.
  • High performance material:Constructed with robust materials for reliable performance in industrial settings.
  • Waterproof level up to IP68:Designed to withstand immersion in water, perfect for wet environments.
  • Spring button design:Innovative spring button mechanism provides a secure locking connection.

Description

Connectors
LP24 Quick Screw Locking Connector 2 Pin 3 Pin Industrial AC Power Waterproof IP68 Male Docking Nut Panel Mount Socket
Feature:
1.Three prevention technology
2.Gold-plated copper
3.High performance material
4.Waterproof level up to IP68
5.Spring button design
6.Safety contact resistance
==========
Hign-concerned Chemical : None
Model Number : LP-24 Screw locking series
Voltage :
Origin : Mainland
Certification : ,UL,weee
Color: : Black
Shell&insulated parts: : PBT
Type: : Power connector
Current rating(A): : 25A
Certificate: : UL/CUL/ISO9001/CE/ROHS
Operating voltage(AC.V): : 500V
Contact Resistance(Max.) : 1.0m
Durability(Min.) : 500 mating &unmating cycles
Temperature rating: : -25~+85
Withstand voltage(AC.V.rm)1 minute: : 2000V
Wire size : 2.5~4.0mm²/14-12AWG
Cable O.D range : O.D10.5~14mm
Assembly style : Screwing
