مميزات خاصة

1. 4 models of broaches, are B1-4, B1-5, C1-6, C1-8; 13 catheters are 12B, 14B, 15B, 16B, 18C, 19C, 20C, 22C, 24C, 25C, 26C, 28C, 30C; 5 separators, 2 of which level B and 3 of C
2. Made of HSS steel, high speed steel is a tool steel with high hardness, high wear resistance and high heat resistance
3. Sized and proportioned to afford a good cutting range and ample rigidity
4. Specialty tools designed for cutting keyways in machined holes. It is widely used for punching, machining of machine accessories
5. This tool set has a sharp cut and high work efficiency. It will help you a lot in your mechanical work

وصف

Specification:
- 4broaches & 13 catheters 5shims 22 combinations
4 broaches B14B15,C1-6,C1-8
- 13 catheter: 12B,14B,15B,16B,18C,19C,20C,22C,24C,25C,26C,28C,30C
- 5 shims: 2 of which level B and 3 of C
- Package size:360cm*190cm*70cm
- Weight: 4.3kg

Broches:
B1 - 4: height: 10.8 mm; Reading height: 9.66 mm; width of sword: 6.45 mm; total length 171.5 mm; key groove width (mm): b = 4.01 mm
B1 - 5: height: 10.8 mm; Reading height: 9.66 mm; width of sword: 6.45 mm; total length 171.5 mm; key groove width (mm): b = 5.01 mm
C1 - 6: Height: 16.64 mm; Reading height: 15.02 mm; Sword width: 9.64 mm; Total length 298.5 mm; Key groove width (mm): b = 6.01 mm
C1-8: Height: 15.95 mm; Reading height: 14.62 mm; Sword width: 9.64 mm; Total length 298.5 mm; Key groove width (mm): b = 8.01 mm

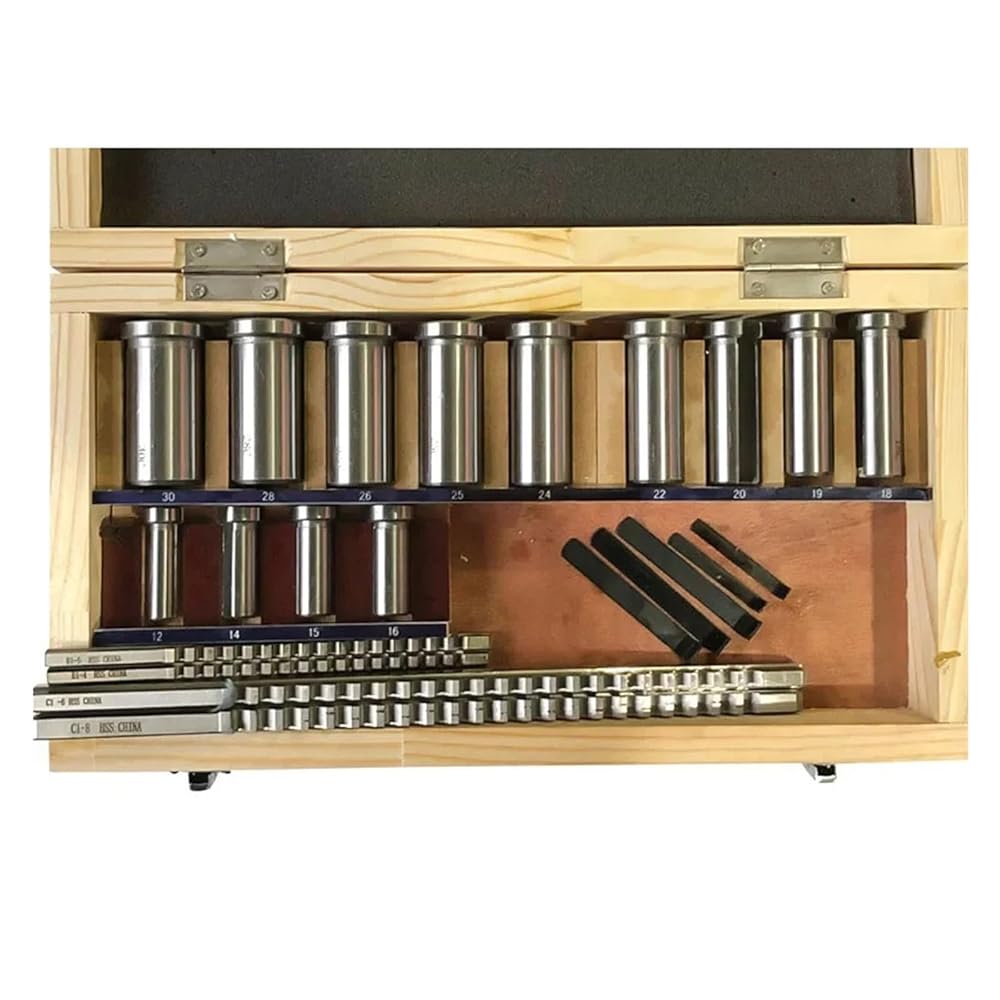

Package List:
4pcs * Broaches
13pcs * Catheters
5pcs * Shims
1 * Wood case

مرحبًا،

بحث

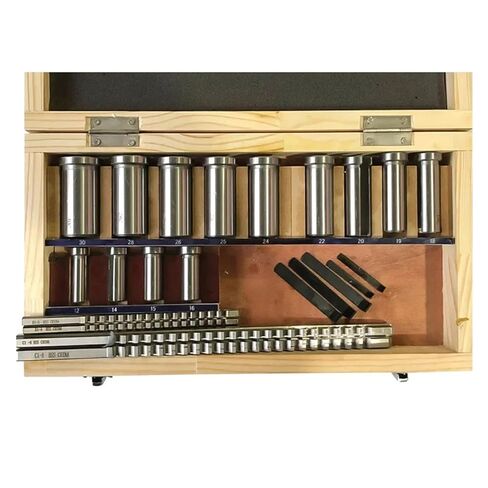

22 قطعة Keyway Broach Set HSS متري أداة القطع Keyway لآلة التصنيع باستخدام الحاسب الآلي لتشغيل المعادن والمخرطة
