Features:

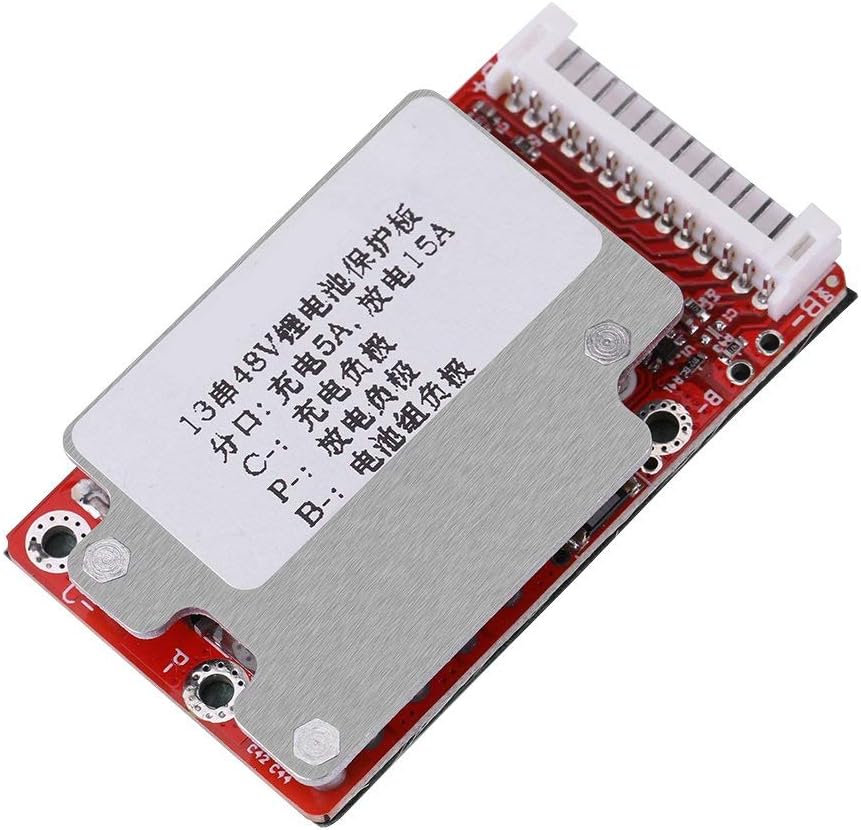

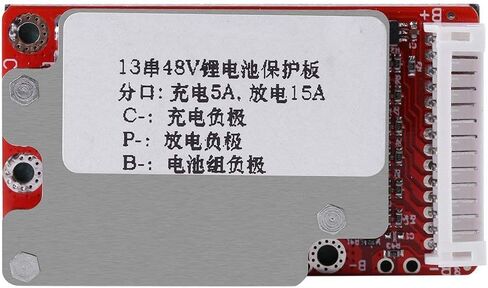

The protection board is for 13 series Li-ion batteries, it can be used for ternary batteries, manganese batteries and cobalt batteries.

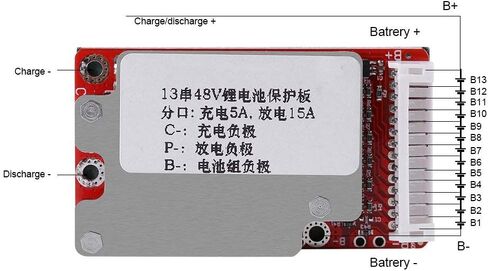

Charging connector and discharging connector are separated, continuous discharging current is 15A.
Charging 5A, discharging 15A, over-current 45A, suitable for electric bike with 500W motor.
It has high voltage withstanding and low conduction resistance function.
Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection.
Specifications:
Overcharge ProtectionSingle Battery Overcharge Detection Voltage4.25V±0.05V
Single Battery Overcharge Release Voltage4.10V±0.05V
Charge ProtectionRated Charging Current5A
Charging protection Current/
Over-discharge ProtectionSingle Battery Overcharge Detection Voltage2.50V±0.05V
Single Battery Overcharge Release Voltage3.00V±0.05V
Rated discharging Current15A
Discharging Protection Current45±5A
Short Circuit ProtectionRecovery ConditionDisconnecting Load
Inner ResistanceB-, P- conduction resistance25mΩ
Current ConsumptionSelf-consumption30uA
SizeL x W x H60 x 34 x 10mm / 2.36 x 1.33 x 0.39"

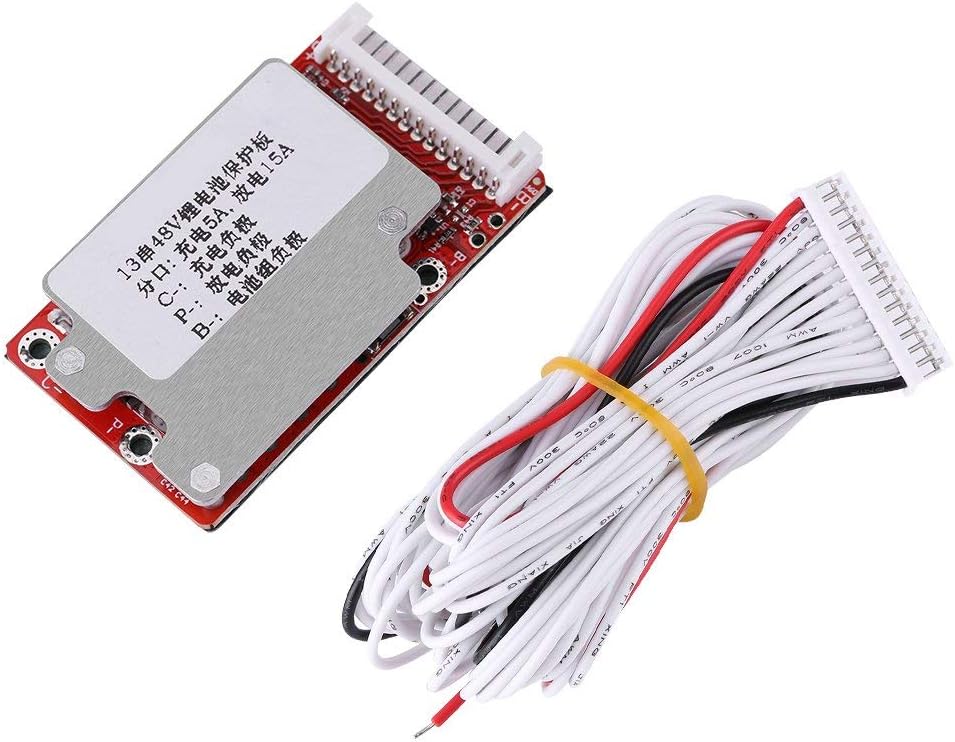

Package Includes:1 x Protection Board
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
