Transducers

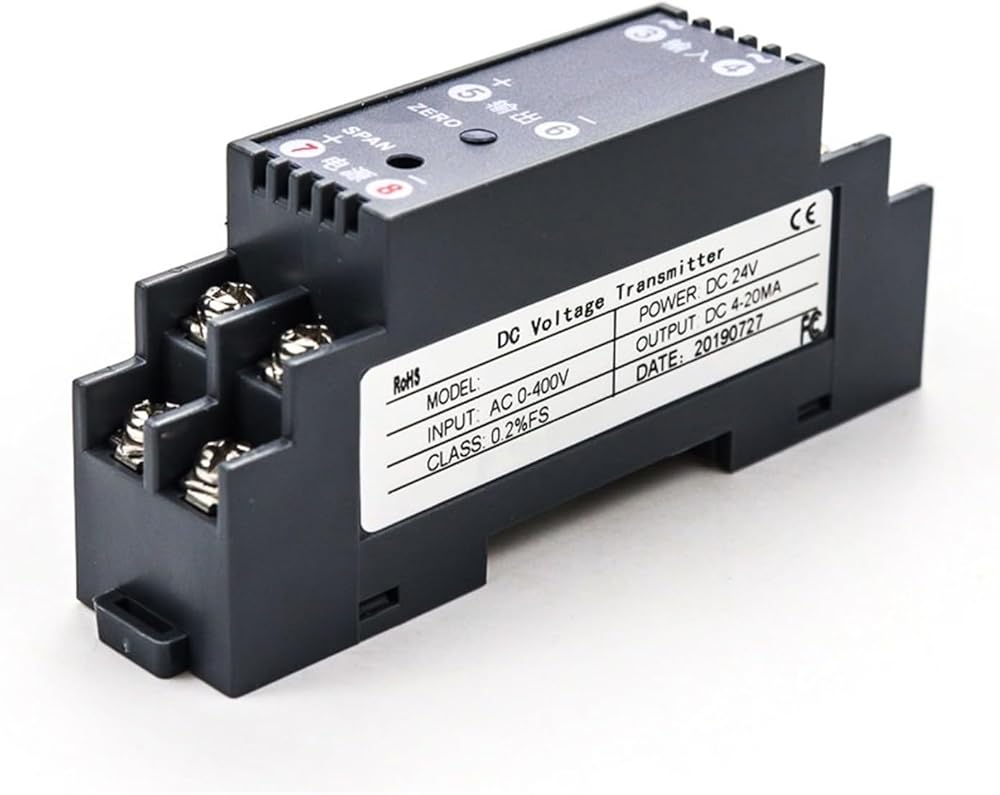

Current SensorsDC 0-1000V input 4-20mA/RS485 output Din type voltage transmitter DC voltage signal sensor voltage sensorbrief description; introductionThe device transmits DC voltage signals into isolated current or voltage signals such as 4-20mA DC 0-10VDC and the input output and power supply are electrically isolated from each other.It can be used with modular instruments and DCS PLC and other systems to provide signal isolation signal conversion signal processing and other functions for field instruments thereby enhancing the anti-interference ability of the automatic control system in the industrial production process and ensuring the stability and reliability of the system. sex.Compared with other similar products this device has the advantages of small size fast response time low power consumption and good temperature characteristics.Specificationproduct nameDC voltage transmitterProduct numberContinuous Wavelet Transform DCVTinput range0-1000Vinput resistance300000output signalDC0-5V/ DC0-10V/DC4-20mA/RS485Output load resistanceRL5000 (output current signal)RL10K (output voltage signal)class0.1% full scaletemperature drift0.005%FS/℃（-20℃+55℃）Response time10 ms (0-90%) (typical)Dielectric strength1500V DC/1min (between input and output and power input)Insulation resistance100MQ (between input and output and power input)power supplyDC 12V/24VRated power consumption1W (24V 20mA output)Operating temperature-20℃+55℃installation method35mm standard guide rail
