Efficient Airflow Control: Designed with high quality materials, this airflow control valve can precisely regulate the airflow to ensure the efficient operation of the system, suitable for various pneumatic applications
Enduring Material:The valve body is made of plastic (PET), with stainless steel locking jaws and NBR seals to ensure the durability and sealing performance of the valve, adapting to a variety of working environments
Negative Pressure Adaptability: The valve can withstand negative pressure up to -100Kpa (-29.5 In Hg), suitable for a variety of vacuum and airflow control applications, to ensure reliability in extreme conditions
Wide Working Range:Working pressure range of 0-1.0MPa (0-150psi), pressure resistance up to 3.0MPa (435psi), suitable for a variety of pneumatic systems, the working temperature range of 0-60°C (32-140°F), to meet the needs of different applications
Wide Compatibility: Suitable for a wide range of pipe materials (PU, PA, PE, PVC), with 6mm OD and 1/4" male threaded connections, easy to connect with different equipment and piping, enhancing the flexibility of use
وصف
Specification Information:

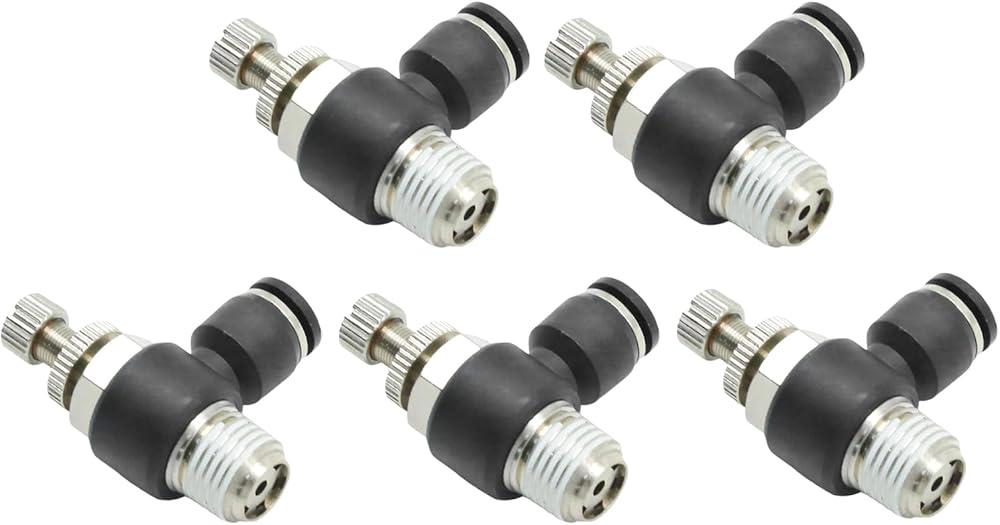

Product Name: Pneumatic Quick Connect Air Control Valve
Type: 90 degree elbow on/off valve adapter
Pipe Size: Pneumatic Quick Connect Air Control Valve
OD: 6mm
Thread: 1/4” male thread
Fluid type: air, vacuum (non-freezing)
Working Pressure:
Range: 0-1.0MPa (0-150psi)
Proof Pressure: 3.0MPa (435psi)
Negative Pressure Adaptability: -100Kpa (-29.5 In Hg)
