Needle-Bearing
Suitable for 360-degree continuous rotation of various types of equipment to conduct electricity or transmit signals
H1235-0605 Drawing hole size 12mm
H1235-1205 Drawing hole size 12.7mm
Standard current is 5A (can be used as 10A by connecting wires in parallel)
Maximum speed: 250RPM
The contact materials are made of precious metals to ensure stability and working life;
Smoother rotation, less torque, and less dynamic resistance.
Voltage: 220V-380V
Cable length: 300mm
Wire: AWG22

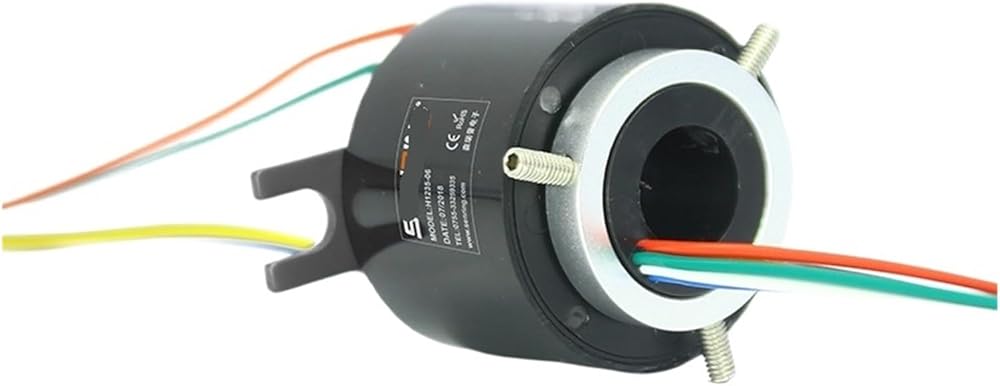

Product name: slip ring
ID (hole size): 12mm-12.7mm
OD (outer diameter): 35mm
Circuit: 6/12 circuit
Current: 5A each
Type: Conductive slip ring
Style: Through hole slip ring
Shell material: aluminum alloy
Wire specifications: AWG22#/silver-plated
