Needle-Bearing
Outer diameter: 22mm
Aperture: 7mm
Channels: 2/4/6 (wires)
Rotation speed: max. 300rpm.
Rated voltage: 380VAC/DC
Rated current: 1.5A/channel
Working temperature: -20℃～+60℃
Contact Material: Gold/Gold
Wire specification: AWG28 Silver UL
Cable length: standard 300mm per side
Withstand voltage: 500V@50Hz between two channels
Insulation resistance: 1000mO/500VDC
Protection level: IP53
Shell material: engineering plastic
Working life: 500 million revolutions (depending on operating environment and speed)

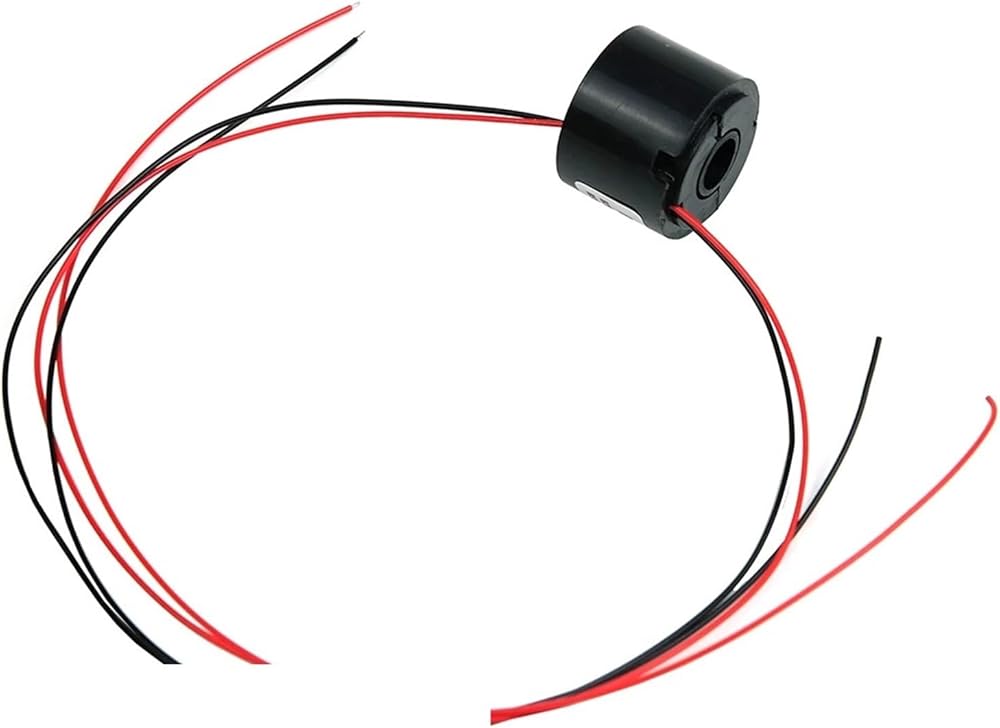

x 1 slip ring (2/4/6 channels/lines optional)
or not: No
Size: 2/4/6 channels 1.5A
