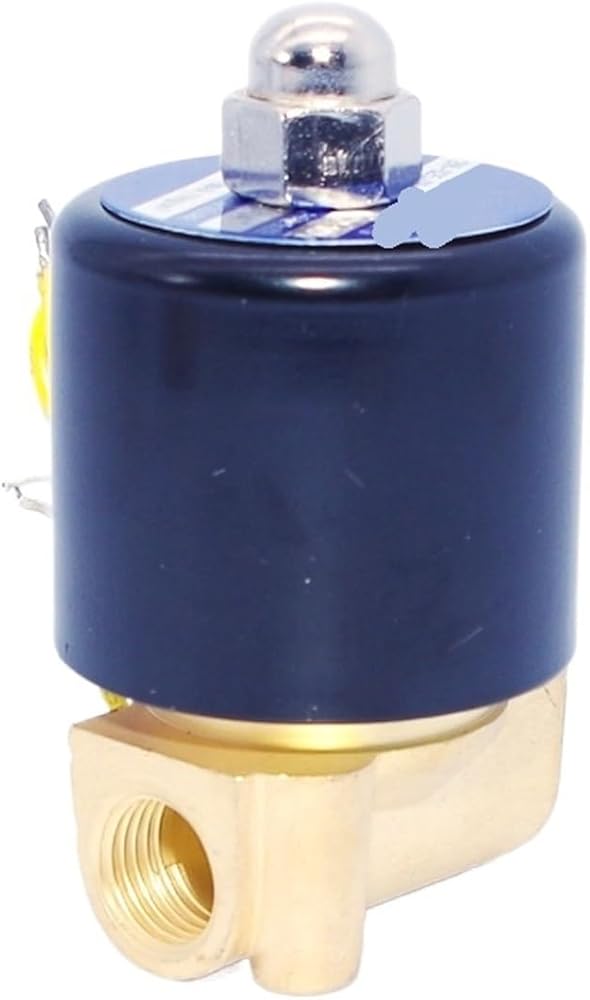

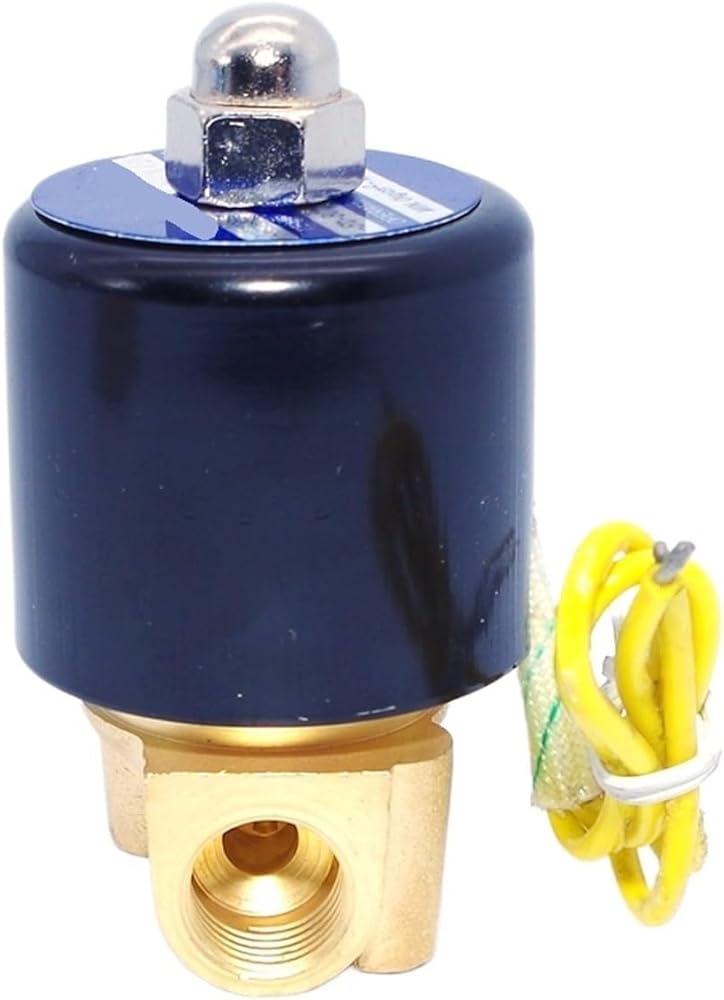

Plug Valves
Specification:
Model: 2W-025-08
Pipe size: 1/4 ( thread or NPT thread)
Overflow hole diameter: 2.5mm
CV: 0.23
Working medium: air, water, oil, gas
Operation type: direct acting
Type: Normally closed (open when powered on, closed when powered off)
Working viscosity: below 20CST
Work stress: 0-10
Working temperature: -5~80 degrees
Voltage: 24VDC, 24VAC, 110VAC, 220VAC or 12VDC
Valve body: brass
Sealing material: NBR
detail:
