Ammeters
Attention:
1.Include a current transformer
2.Please try not to install the meter and current transformer around the high temperature strong magnetic field
and large transformer otherwise the accuracy will be affected.
3.In order to obtain a higher precision measurement it is recommended to "preheat for 5 minutes" before
adjusting the calibration.
4.Since the 24V battery charge full of floating voltage may be over 30V so "no" recommended direct use it.
5.When you select range not the larger the better. the larger the range the larger the error it is recommended
that it is 1.5 or 2 times as large as the actual test value.
6.This meter and CT have been calibrated by the "one to one". Please don't mix it up when you use it in the later
period. If mixed you need to recalibrate it.
Product Features:
The wide power supply range with reverse polarity protection.

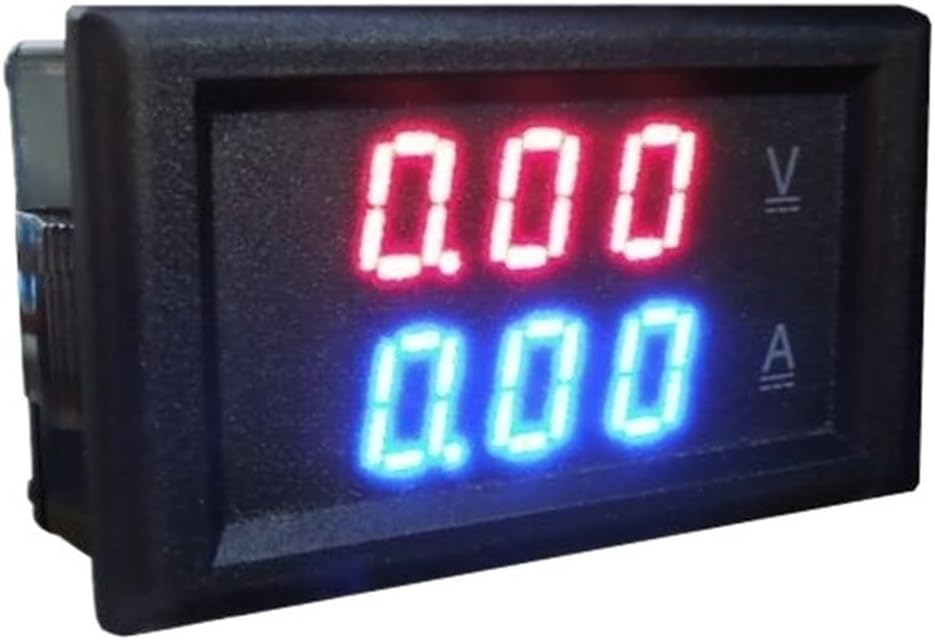

Display voltage and current on the screen at the same time.
CT adopts the design of perforation type wire through the hole without having to cut wires without damage without changing the electric current wire can be achieved current measurements.
Since CT and measured wire is isolated completely this meter can be measured the current of the power positive negative and any devices don't need to worry about the ammeter "common ground".
The positive and backward current can be measured and the "positive" current is shown in the positive direction (the decimal point is always bright or not bright) and the "negative" current is shown in the reverse direction (the decimal point flashes slowly.
It can be tested two "completely isolated" devices. The voltage of A device and the current of the B device. Or the voltage of device B the current of A device.
The withstand voltage value up to 2KV between the tested conductor.
High reliability high r
