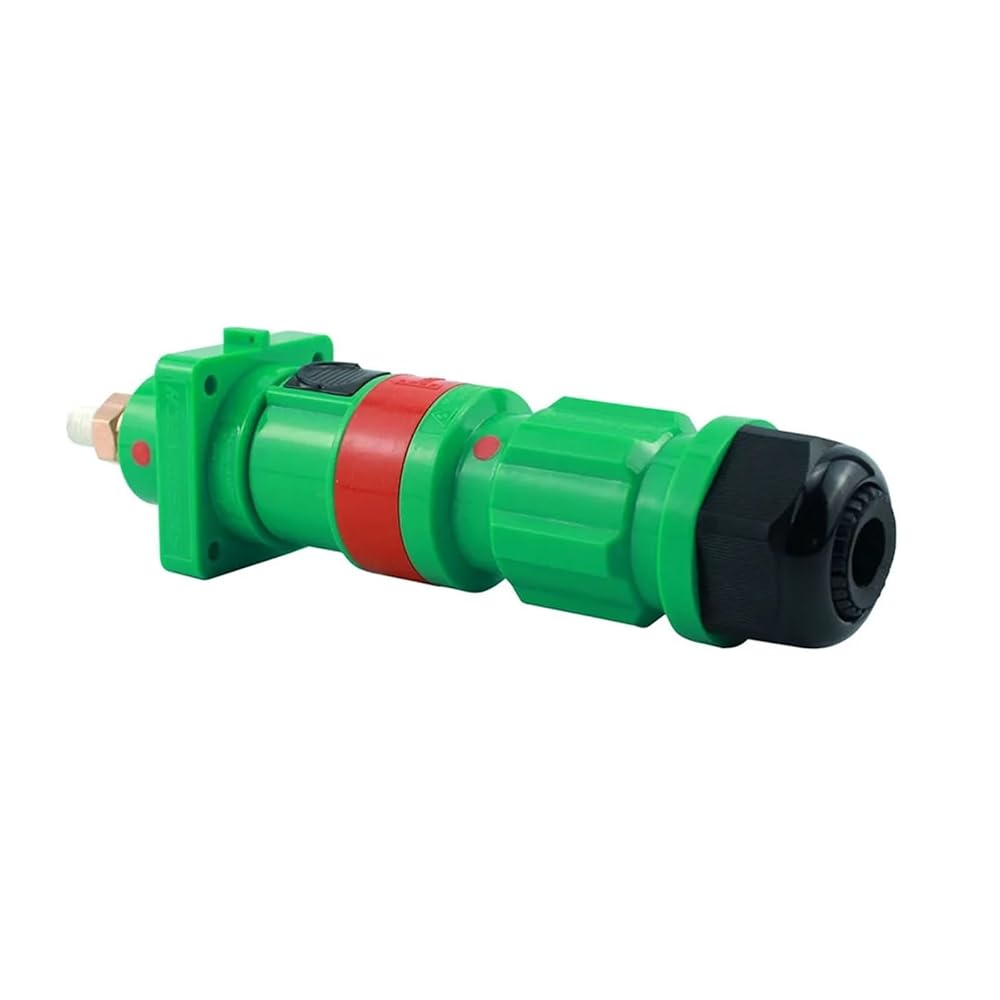

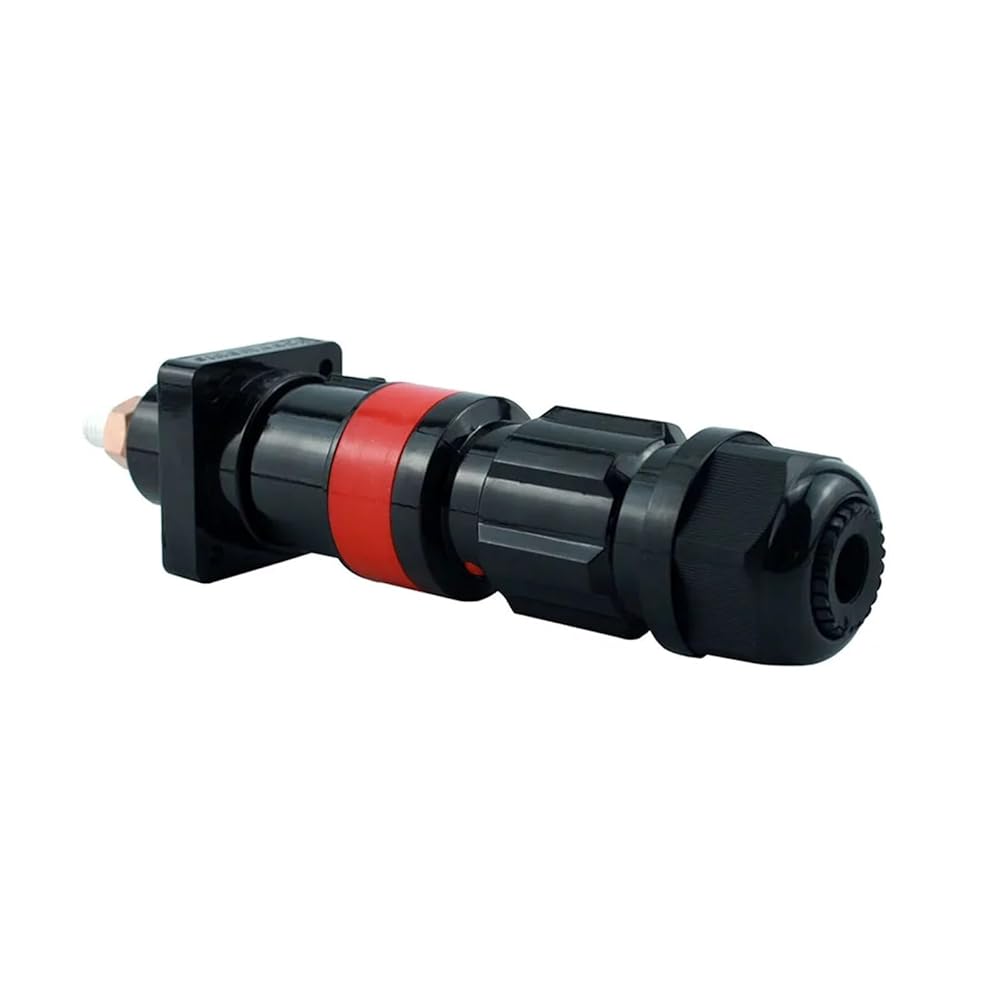

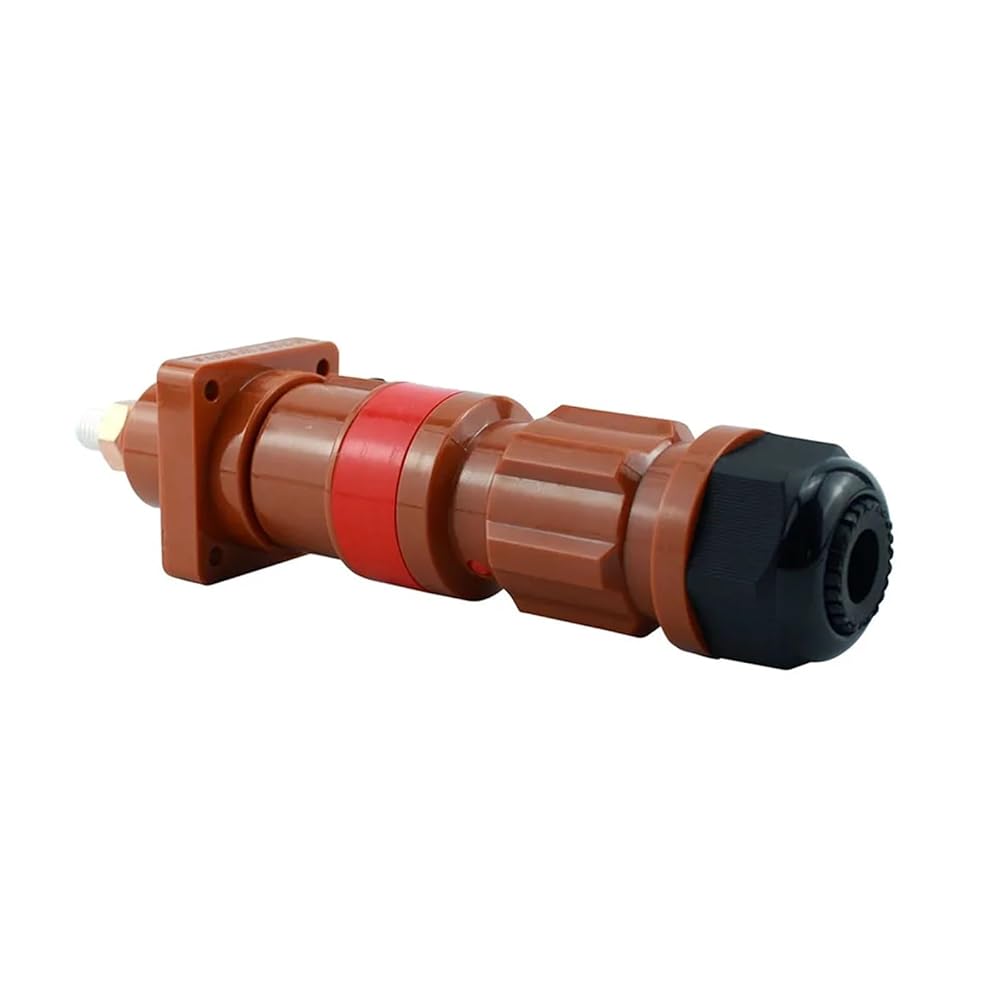

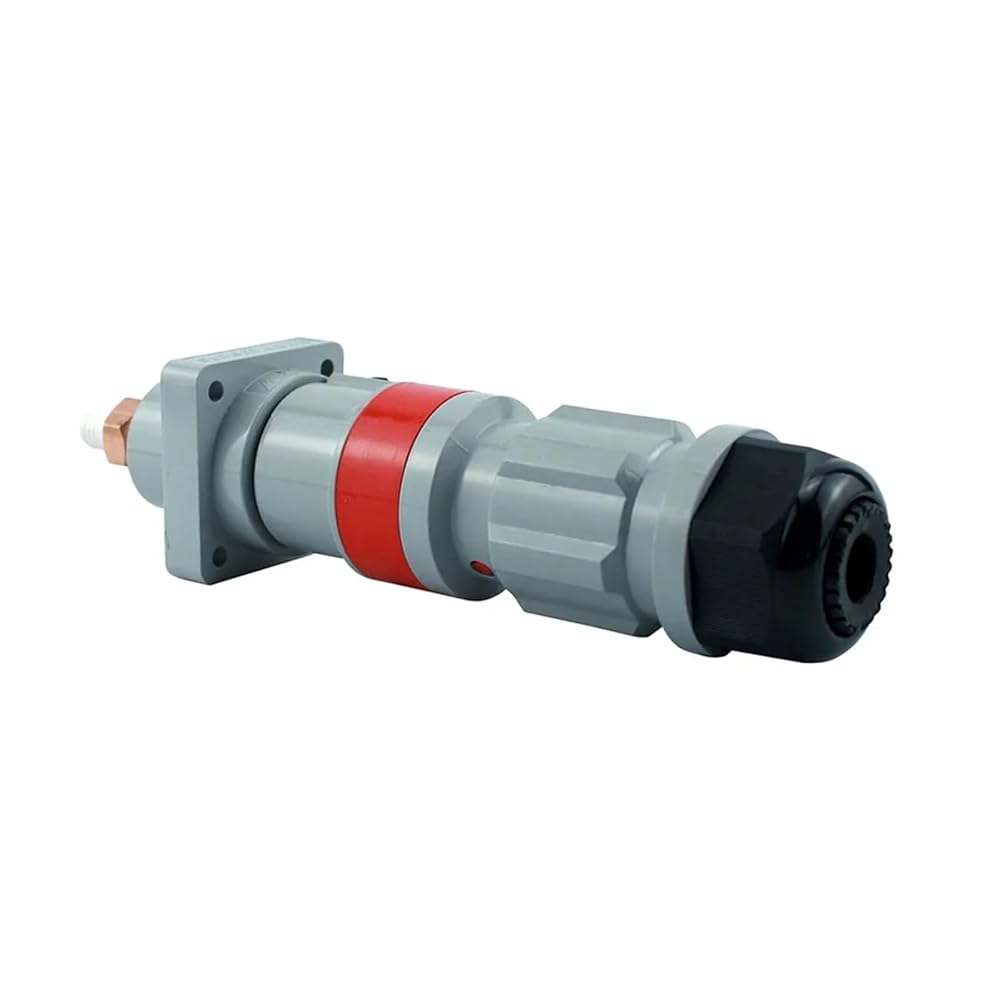

10PCS Set 400 Amp Male Female Socket Single Pole Power Connector Compatible with Powerlock 5 Colors
1. Comes with two rubber sleeves (I.D. 18mm and 26mm) to fit different size of cables
2. The housing has 5 different colors and phases to prevent mating errors, different color and phase cannot be mated
3. Contacts fitted with a plastic end cap to prevent accidental touching of live parts
4. IP 2X finger protection against electric shock
5. M40 waterproof cable gland comes with two rubber sleeves (I.D. 18mm and 26mm) to fit cables from dia19mm to dia28mm
6. The standard package includes R120 silver plated brass reduction sleeve: (I.D.) 16.5mm x (length) 32mm, suitable for dia120MM² cables. Other size can be according to customer requirements.
Please note that do not reuse locating pin. Reusing Locating pin might expose the operation to electrical danger.
Female Socket
1. The contact is made of brass with silver plated for superior conductivity
2. The connector housing is made of shock proof and high temperature resistance thermoplastic
3. POM locating pin for excellent insulation
4. Supplied with M12 threaded post with brass nut and spring washer for cable attachment
5. The housing has 5 different colors and phases to prevent mating errors, different color and phase cannot be mated
6. Contacts fitted with a plastic end cap to prevent accidental touching of live parts
7. IP 2X finger protection against electric shock
8. 4 x dia. 5.5mm fixing holes on the flange
9. Suitable for visible mounted
10. The housing can be equipped with a dust cap, which can be removed and assembled according to the usage
Please note that do not reuse locating pin. Reusing Locating pin might expose the operation to electrical danger.
Specifications:
- Current Rating: 400A continuous with 120mmsq cable
- Withstanding Voltage: 1000V
- Test Voltage: 4500V (Max.)
- Short Circuit Rating: Up to 35.5KA
- Insulation Resistance: >5000M Ohms at 500 Vac
- IP Rating While Mated: IP 67
- Contact Material: Silver plated brass
- Housing Material: High impact thermoplastic
- Locating Pin Material: POM
- Working Temperature: -45-85
- Contact Type: Set screw
- Set Screw on Brass Contact: 10.5N/meter (Min.)
- Mating Cycle: >500
- Flammability: UL94-V0
- certification
Model no.
Type
Phase
Color
Cable size
(Diameter)
Waterproof cable gland size
SMLS-400-1BN-120-MR
Line (male )
LINE1
brown
120mm²
M40/19-28mm
SMLS-400-2BK-120-MR
Line (male )
LINE2
black
120mm²
M40/19-28mm
SMLS-400-3GY-120-MR
Line (male )
LINE3
grey
120mm²
M40/19-28mm
SMLS-400-NBL-120-MR
Line (male )
NEUTRAL
blue
120mm²
M40/19-28mm
SMLS-400-EGN-120-MR
Line (male )
GROUND
green
120mm²
M40/19-28mm
Model no.
Type
Phase
Color
Cable size
(Diameter)
Thread & Nut
SMPD4001BN120MR
Panel drain female socket)
LINE1
brown
120mm²
M12
SMPD-400-2BK-120-MR
Panel drain (female socket)
LINE2
black
120mm²
M12
SMPD-400-3GY-120-MR
Panel drain (female socket)
LINE3
grey
120mm²
M12
SMPD-400-NBL-120-MR
Panel drain (female socket)
NEUTRAL
blue
120mm²
M12
SMPD-400-EGN-120-MR
Panel drain (female socket)
GROUND
green
120mm²
M12

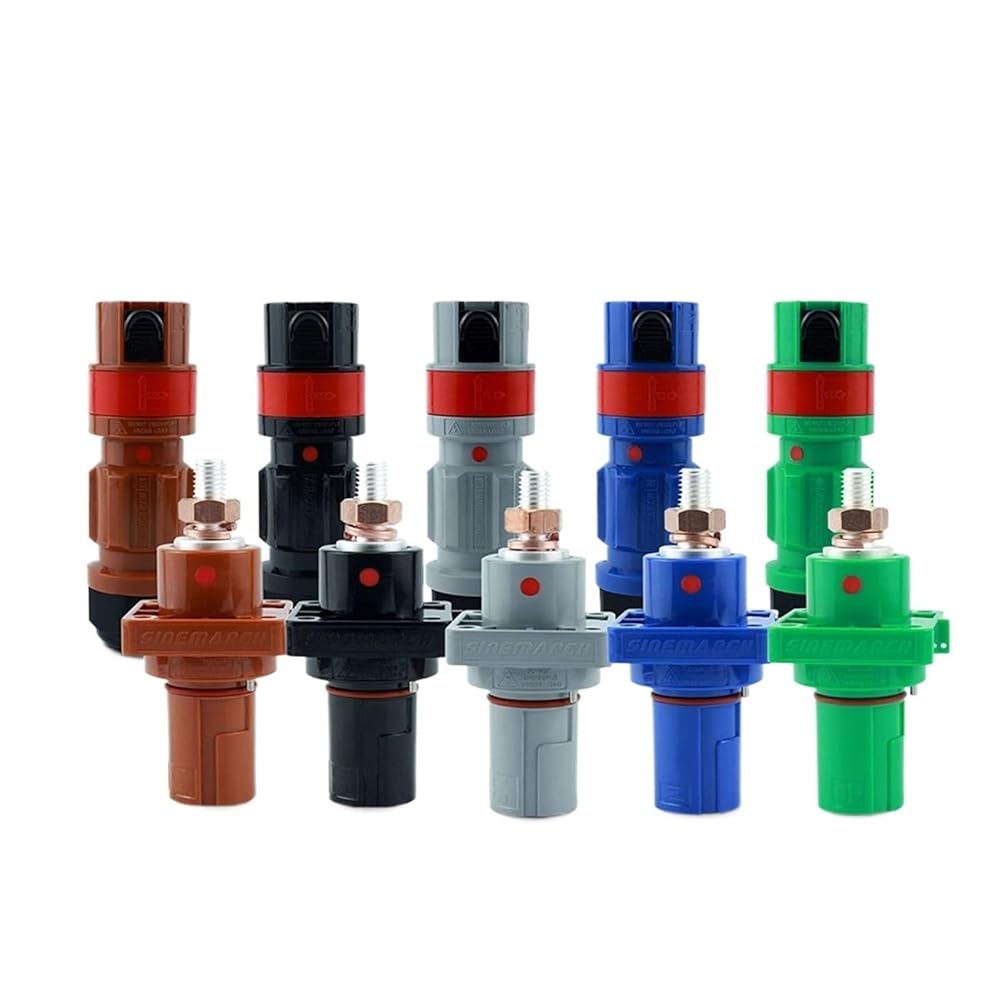

Package Content:
1 x brown 400A male
1 x black400A male
1 x grey400A male
1 x blue400A male
1 x green400A male
1 x brown 400A female socket
1 x black400A female socket
1 x grey400A female socket
1 x blue400A female socket
1 x green400A female socket
==========
Model Number : SMLSPD-400-10S
DIY Supplies : Electrical
Output Voltage : 400A
Current Rating : 400A continuous with 120mmsq cable
Withstanding Voltage : 1000V
Test Voltage : 4500V Max.
Short Circuit Rating : Up to 35.5KA
Contact Material : Silver plated brass
Housing Material : High impact thermoplastic
Locating Pin Material : POM
Working Temperature : -45-85
Contact Type : Set screw
