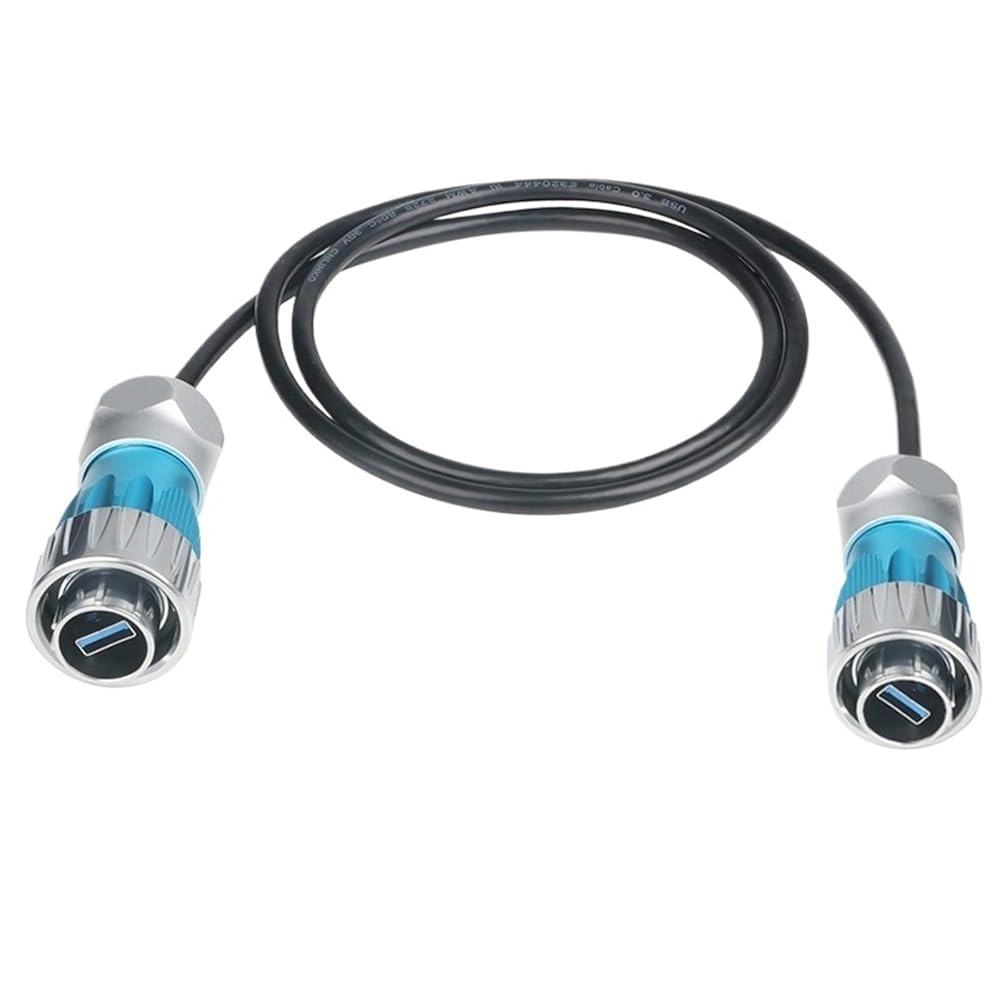

1/4 Bayonet Connecting USB2.0 USB3.0 Metal Shell Waterproof Data Connector IP68 Connector USB Panel Mount with 0.5M/1M/2M Cable
Features:
Waterproof IP68 Rating
The connector boasts an IP68 waterproof rating, ensuring it can withstand harsh environments without compromising performance.
0.5m/1m/2m Cable Length
With an optional 0.5m/1m/2mcable length, the connector offers flexibility while maintaining its high-performance standards.
High-Speed USB 3.0 Connectivity
Experience lightning-fast data transfer with the USB3.0 connector, designed for efficient and reliable communication.
Metal Shell Construction
Crafted with a robust metal shell, the connector guarantees durability and longevity, perfect for demanding applications.
Bayonet Locking Mechanism
Equipped with a bayonet locking mechanism, this connector offers secure and easy connection, reducing the risk of disconnection.
==========
Hign-concerned Chemical : None
Model Number : DH24-USB
Voltage :
Origin : Mainland
Certification : ,UL,weee
Pin : 9 Pin
Color : Blue and Silver
Approved : UL & TUV
Current rating : 1.5A
Cable specification : 0.15mm²~0.2mm²/26-24AWG
Protection Level : IP68
Durability(Min.) : 500times
Flammability rating : UL94-V0
Housing&insulation parts : High-performance engineering plastics
Connecting mode : Easy locking type
Cable Length : with 0.5m/1m/1.5m/2m/3m
