The MCP4725 is a single-channel 12-bit buffered voltage output DAC with non-volatile memory (EEPROM) that allows you to store configuration register bits (2 bits) and DAC input data (12 bits) to non-volatile EEPROM (14-bit) In memory. The DAC can be configured for normal mode or power-saving shutdown mode by setting the configuration register bits.

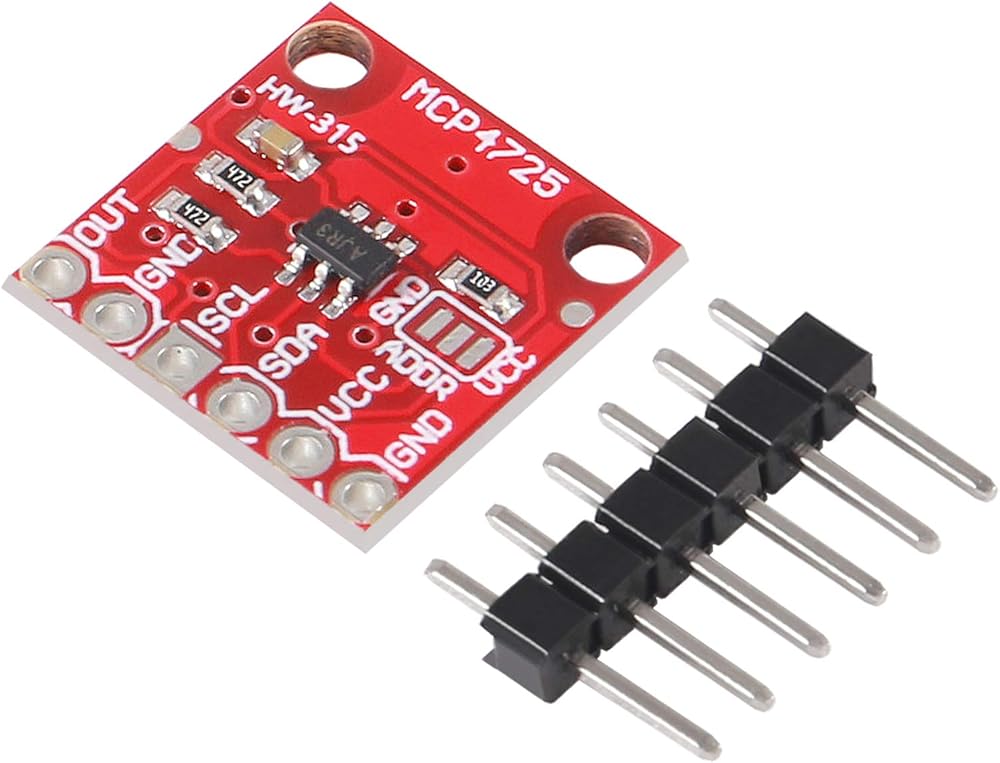

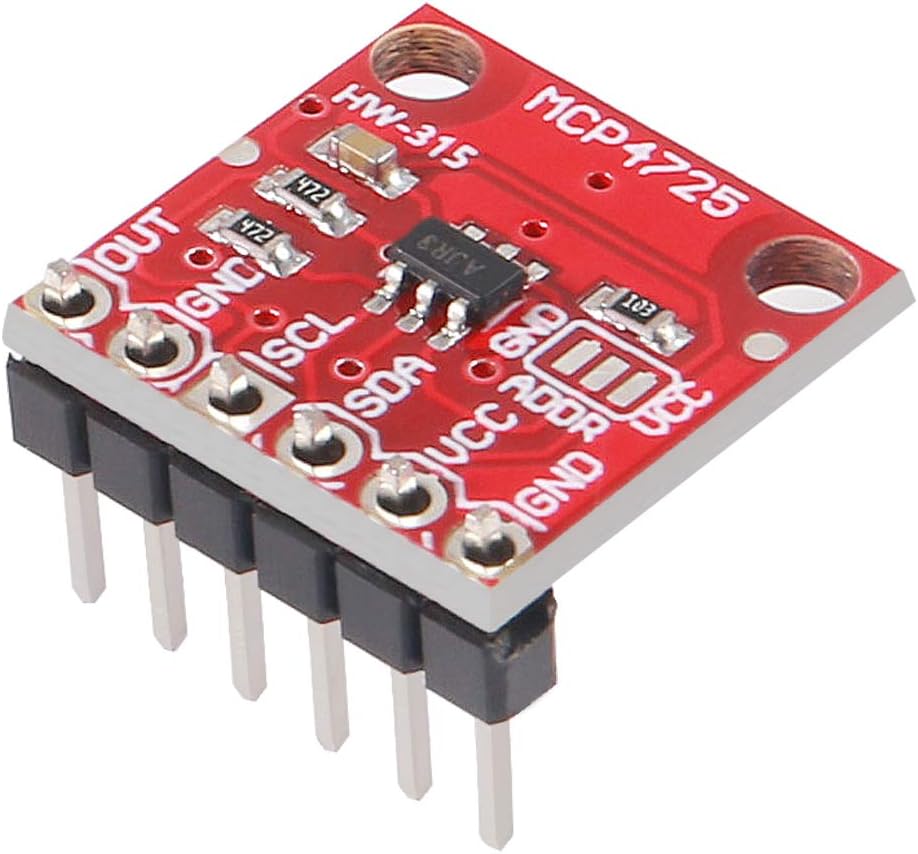

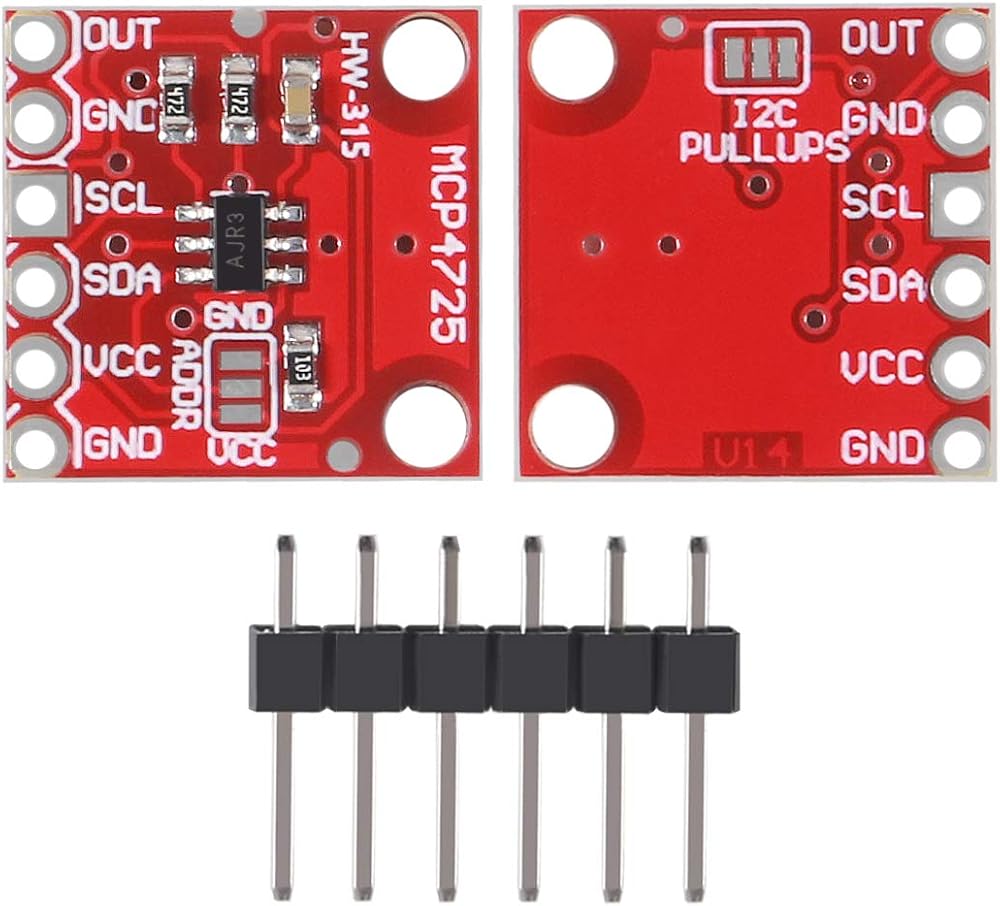

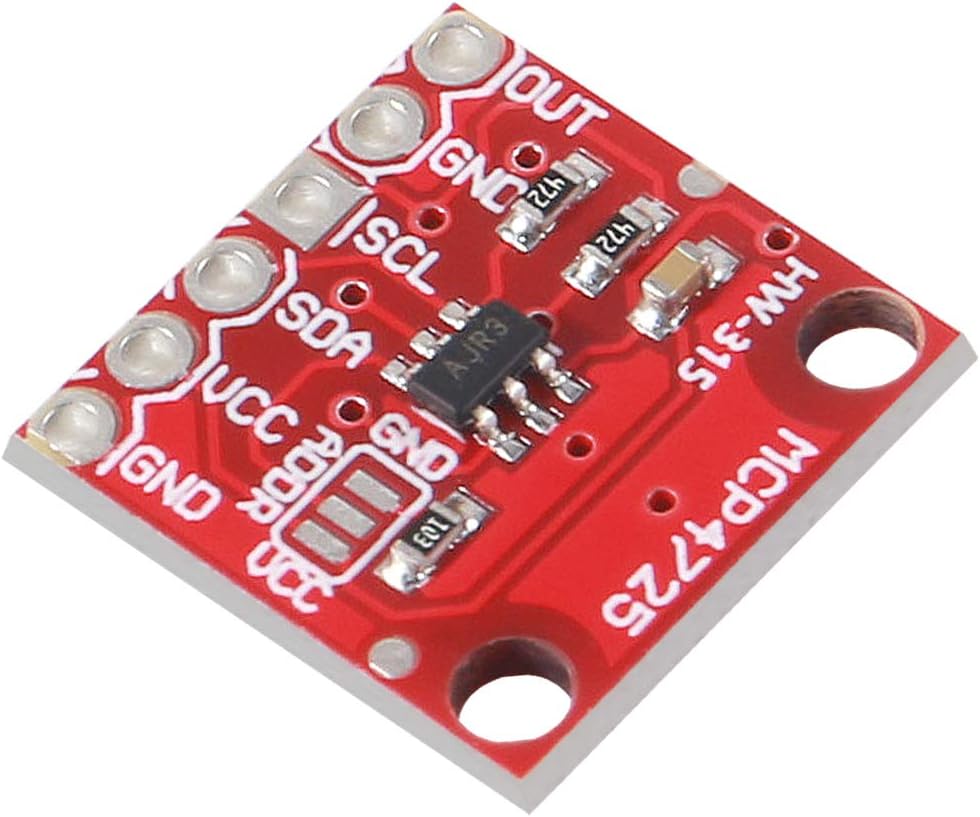

The board breaks down each pin you need to access and uses the MCP4725 (including GND and signal OUT pins) to connect to the oscilloscope or any other device you need to connect to the board. There are also SCL, SDA, VCC and another GND for the basic I2C pinout. The device can be used with a 2-wire I2C-compatible serial interface and is powered by a single supply from 2.7V to 5.5V.

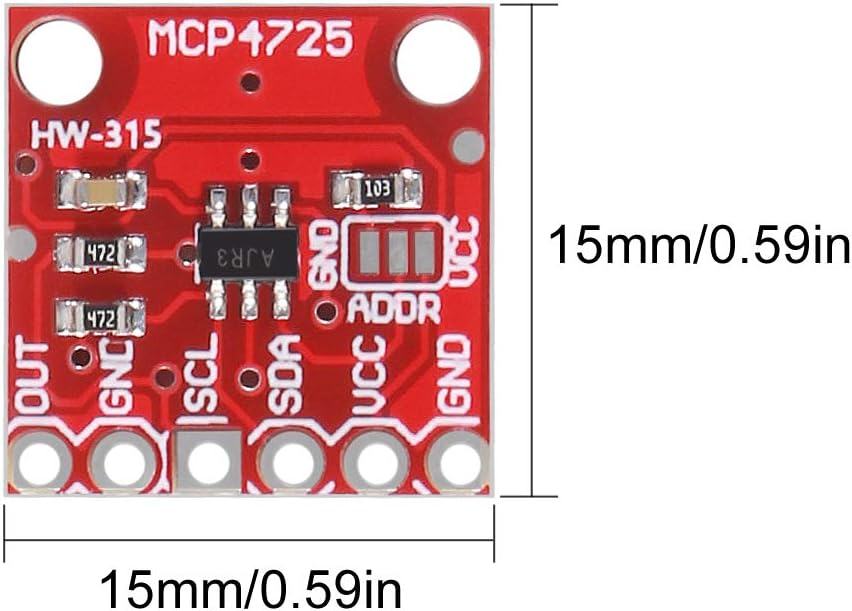

This version of the CJMCU-MCP4725 Breakout fixes a few issues with the board including the IC footprint, the I2C pinout, changes the overall board dimensions to better fit your projects, and a few more minor tweaks.
The DAC allows you to send analog signals, such as sine waves, from a digital source such as the I2C interface on an for Arduino microcontroller. Digital to analog converters are ideal for sound generation, musical instruments and many other creative projects.
