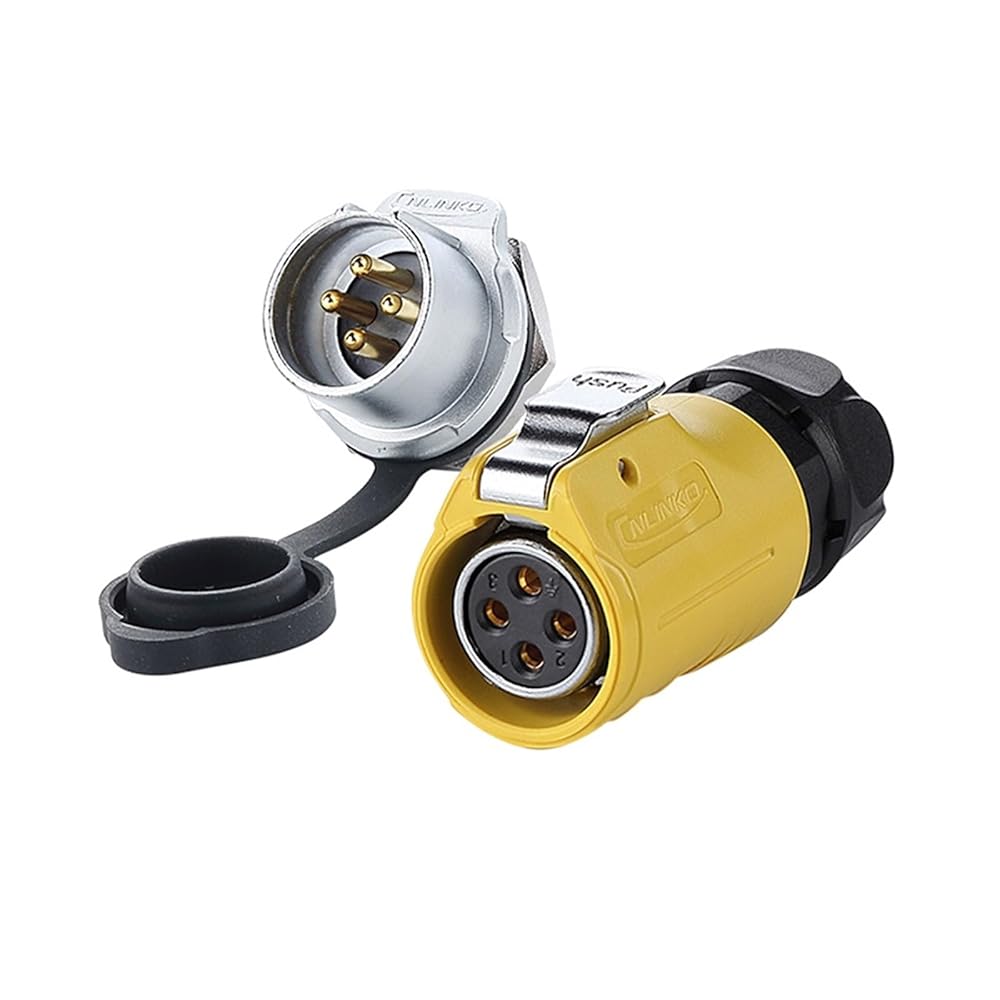

LP20 Quick Connect Waterproof Wire Connector IP68 Industrial Connector for Outdoor Equipment Machinery LED Lighting
Features:
Professional Quality
As a product of , a trusted in the industry, you can expect superior quality and durability.
Waterproof Design
With its robust waterproof construction, this connector ensures reliable performance in wet environments.
High Voltage Compatibility
The M20 connector is designed to handle high voltages up to 500V, making it ideal for industrial power cable connections.
Versatile Pin Options
Available in various pin configurations (2, 3, 4, 5, 7, 9, 12), this connector offers flexibility for different wiring needs.
Easy Soldering Wire Connection
This connector simplifies the soldering process, providing a secure and efficient connection for power cables.
==========
Hign-concerned Chemical : None
Model Number : LP-20
Voltage :
Origin : Mainland
Certification : ,UL,weee
Pins : 2pin/3pin/4pin/5pin/7pin/9pin/12pin
Color : Yellow
Approved : UL & TUV
Materials : PBT Plastic
Rated current : 5A~20A
Operating voltage : 250V~500V
Cable specification(2-4pin) : 2.5~4.0mm²/14-12AWG
Protection Level : IP68
Durability(Min.) : 500 times
Flammability rating : UL94-V0
Assembly wire : Soldering
Cable specification(5-7pin) : 1.0~1.5mm²/ 18-16AWG
Cable specification(9-12pin) : 0.34~0.5mm²/22-20AWG
Cable O.D range(2~7pin) : 10.0-12.0mm
Cable O.D range(9~12pin) : 5.0-6.5mm
Connector type : Panel connector/inline connector
